Product Configuration
The defrost heater for walk in freezer is high-performance core heating component engineered for large walk-in freezers, designed to resolve evaporator frost accumulation and ensure stable refrigeration efficiency.Crafted from premium stainless steel (304/316/310S), defrost heater tube delivers excellent corrosion and low-temperature resistance, enduring the harsh high-humidity, low-temperature environment of walk-in freezers without rust or leakage.
Integrated with the freezer’s control system, the defrost heater for walk in freezer activates automatically when frost reaches the preset thickness: the internal heating wire converts electricity to uniform heat, melting frost rapidly; melted water drains via the guide system to avoid secondary icing. The defrost heater shuts off automatically once defrosting is complete, reducing compressor load and cutting energy consumption.Ideal for commercial cold storage, logistics distribution centers, and food processing facilities, the defrost heater tube is a reliable guarantee for efficient cold chain operation.
In addition, the tubular defrost heater for unit cooler is highly flexible in design to meet the requirements of different models of cold air blowers. It has various interface forms, including straight single-tube, A-A type (double straight tubes), and U-shaped tubes, with lengths ranging from 0.64 meters to 3.35 meters. The unit cooler defrost heater tube diverse design enables the defrosting heater to be easily adapted to various specifications of cold air blowers, such as the common DD15/DD30(40) and DD60 series unit cooler.
Product Paramenters
| Porduct Name | SS304/316 Material Defrost Heater for Walk in Freezer |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,A-A type,U shape,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Defrost Heater Element for unit cooler |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Company | Manufacturer/supplier/factory |
|

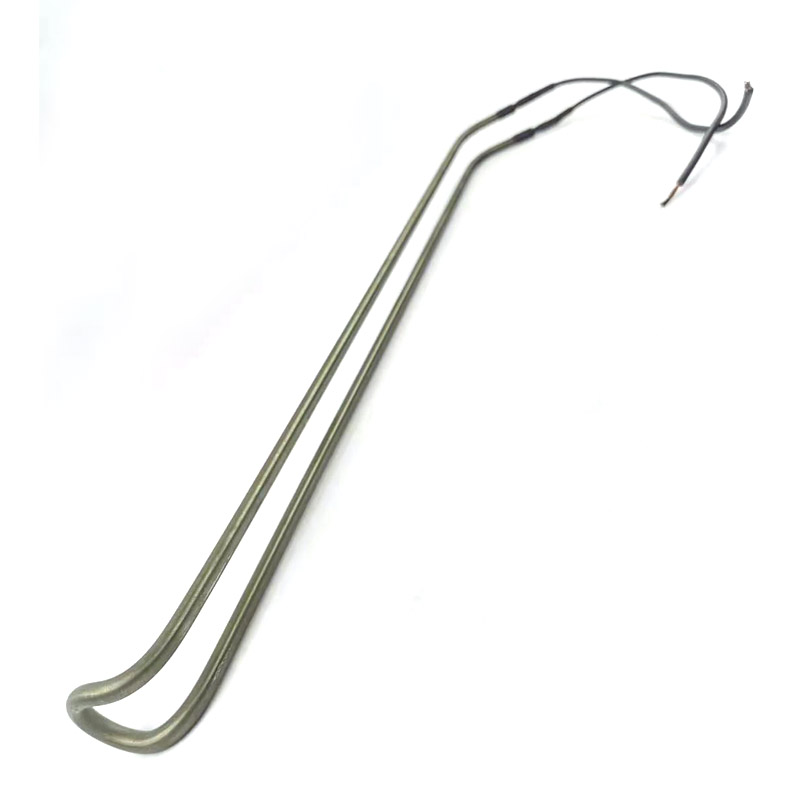

The Defrost Heater for Walk in Freezer is used for the air cooler defrosting,picture shape of defrost heater heating element is A-A type (double straight tube ),tube length custom is following your air-cooler size,our all defrost heater can be customized as required. The tubular defrost heater for walk in freezer tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Defrost Heater for Air-cooler Model
Singel Straight Defrost Heater
A-A Type Defrost Heater

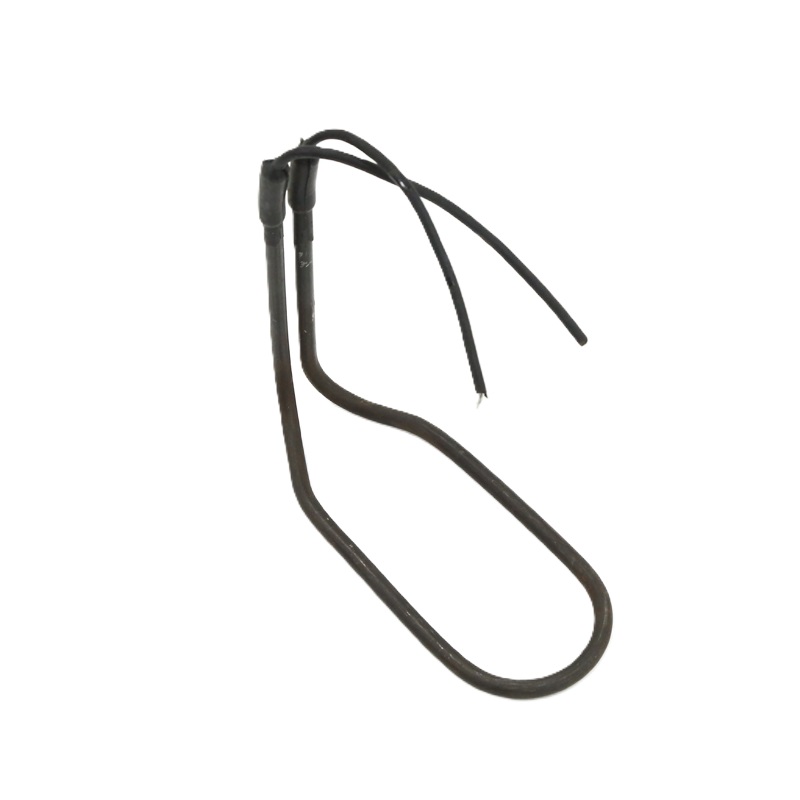

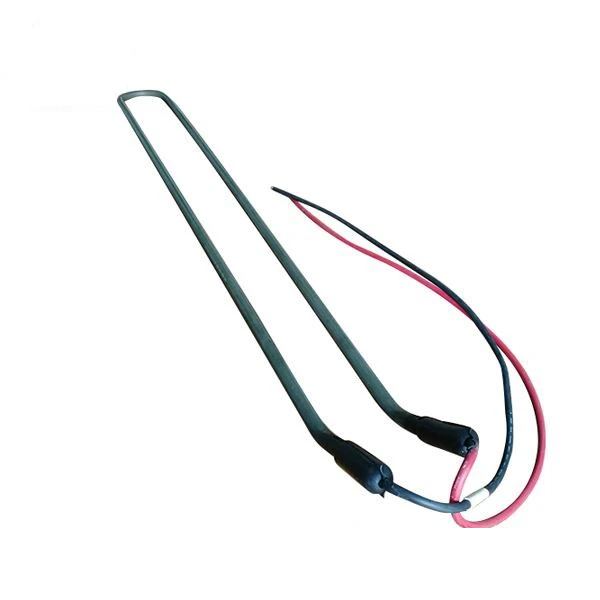

U Shaped Defrost Heater
UB Shaped Defrost Heater
B Typed Defrost Heater
BB Typed Defrost Heater
Product Features
Premium Stainless Steel Construction
Made of 304/316/310S stainless steel, the defrost heater for walk in freezer offers excellent corrosion resistance, low-temperature tolerance, and structural durability, adapting to the high-humidity, low-temperature environment of walk-in freezers without rust or leakage.
Smart Automatic Control Integration
Seamlessly connects with the walk-in freezer’s frost sensor and control system, enabling automatic start/stop based on preset frost thickness and temperature thresholds, no manual intervention required.
Uniform & Efficient Heating Design
Optimized internal heating wire layout ensures even heat distribution across the tube surface, delivering fast, consistent defrosting without localized overheating.
Customizable Specifications
Available in various power ratings, tube shapes (straight, U-shaped, customized), and installation sizes to match different walk-in freezer models and evaporator layouts.
Product Application
1. cold storage cooling fan : tubular defrost heater used for unit cooler evaporator defrost, prevent frost accumulation affect refrigeration efficiency ;
2. cold chain equipment : U shape defrost heater Maintain the constant temperature environment of refrigerated truck and display cabinet to avoid frost resulting in temperature control failure ;
3. industrial refrigeration system : defrost tube heater is integrated in the bottom of the water pan or condenser to ensure the continuous operation of the equipment

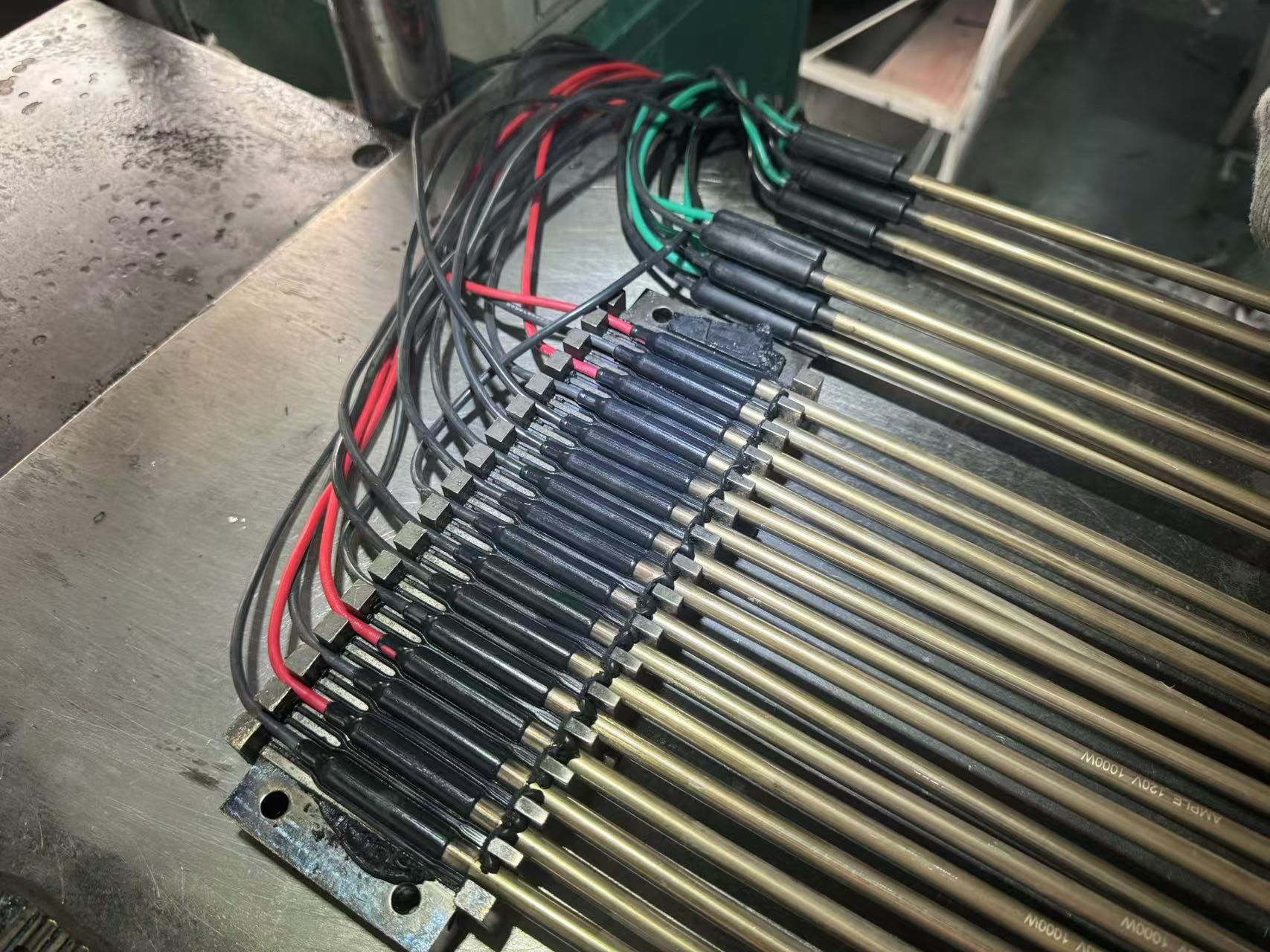

Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery

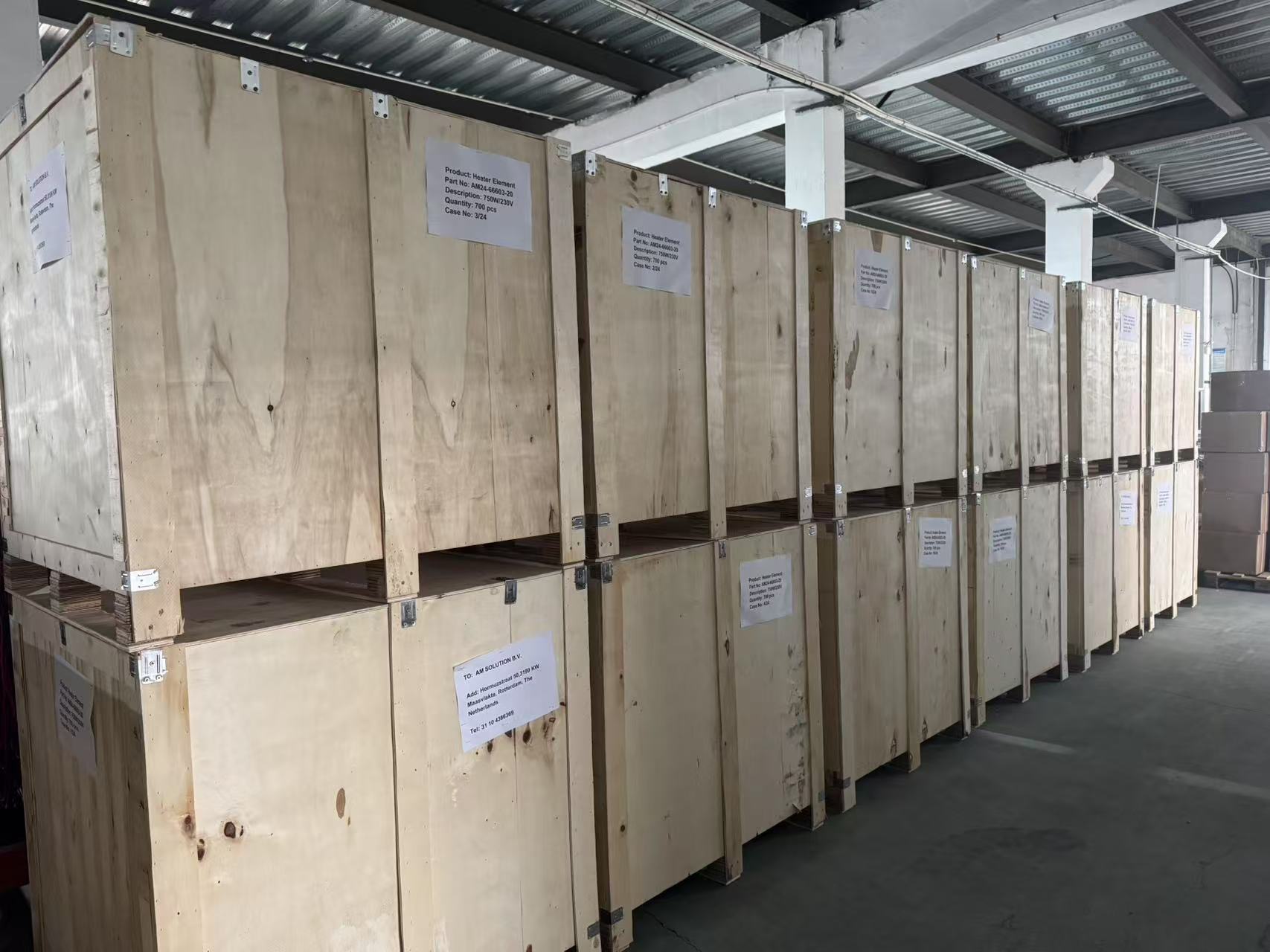

Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

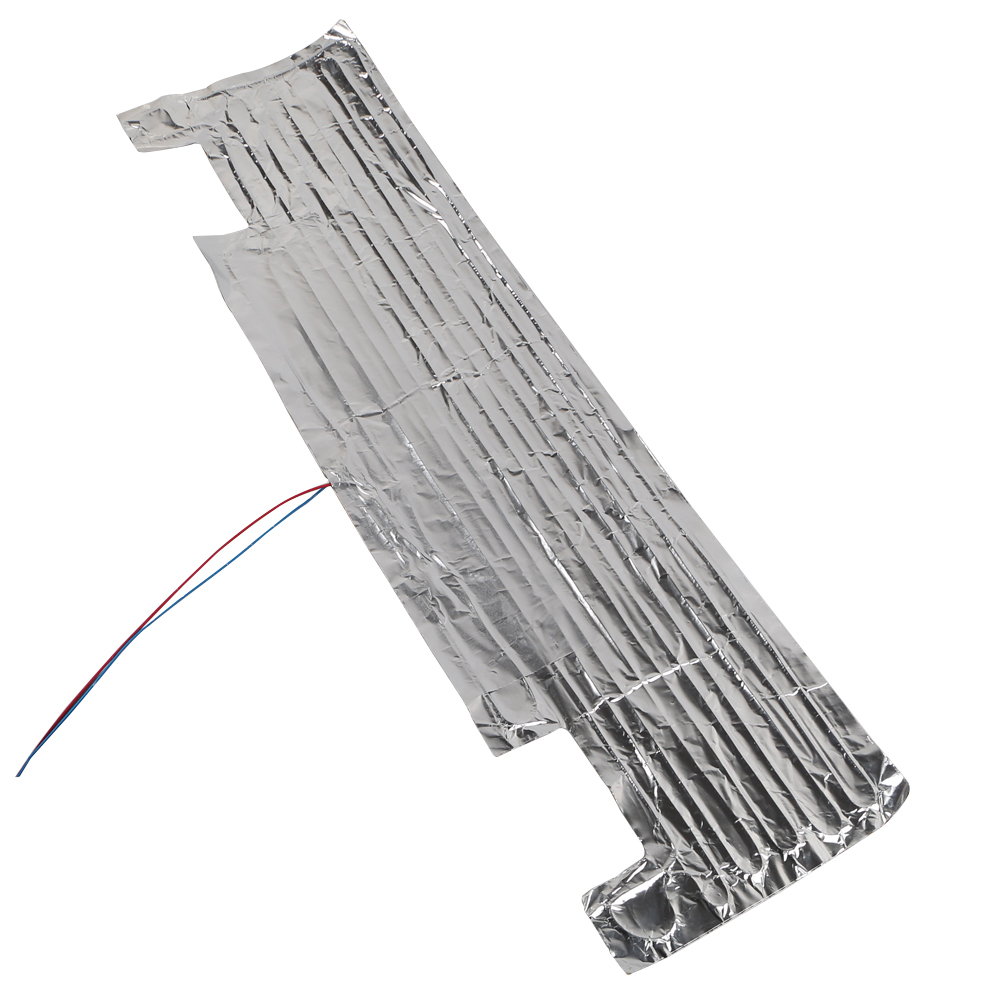

Aluminum Foil Heater
Immersion Heater
Oven Heating Element
Defrost Wire Heater
Drain Line Heater
Crankcase Heater

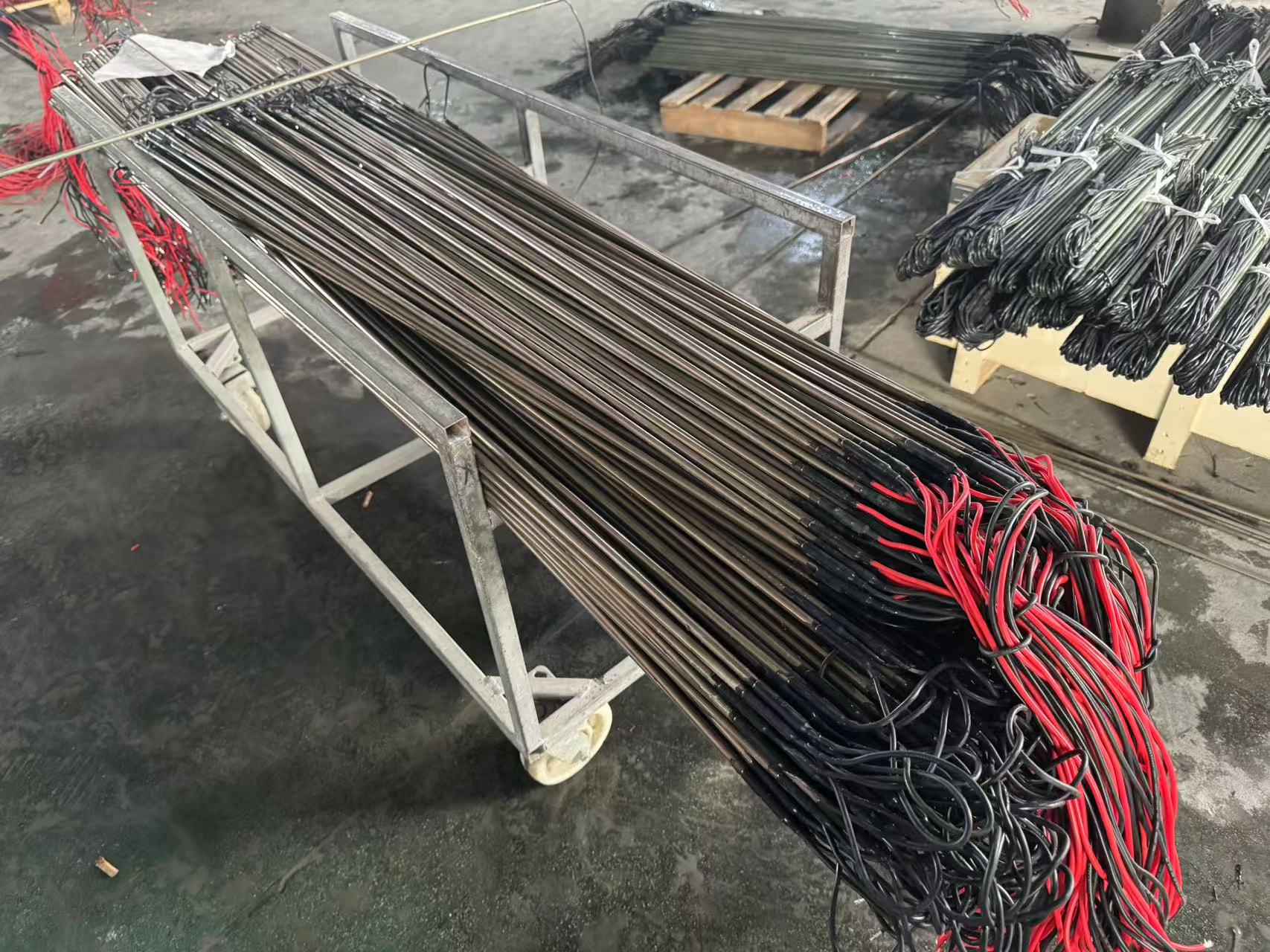

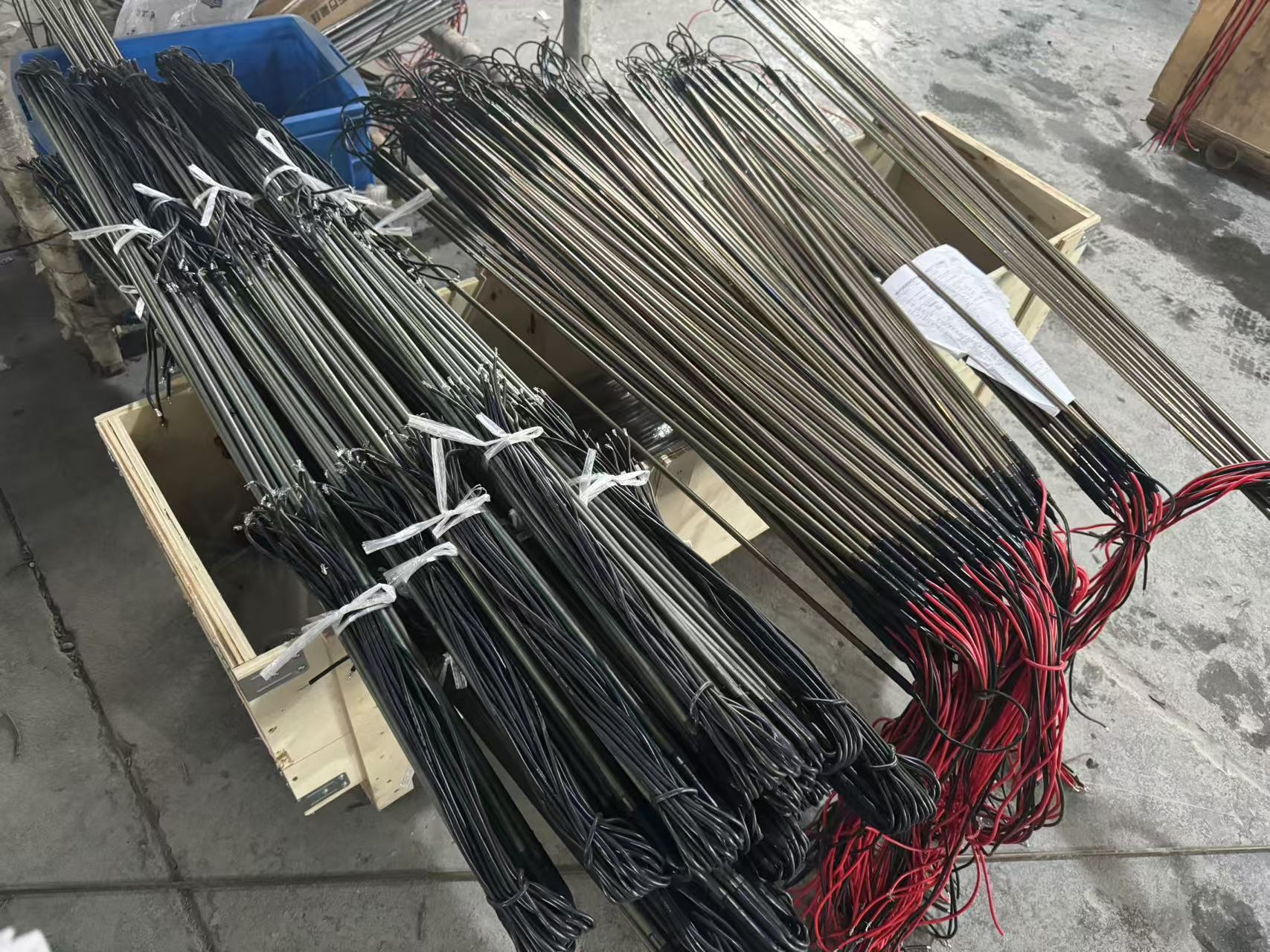

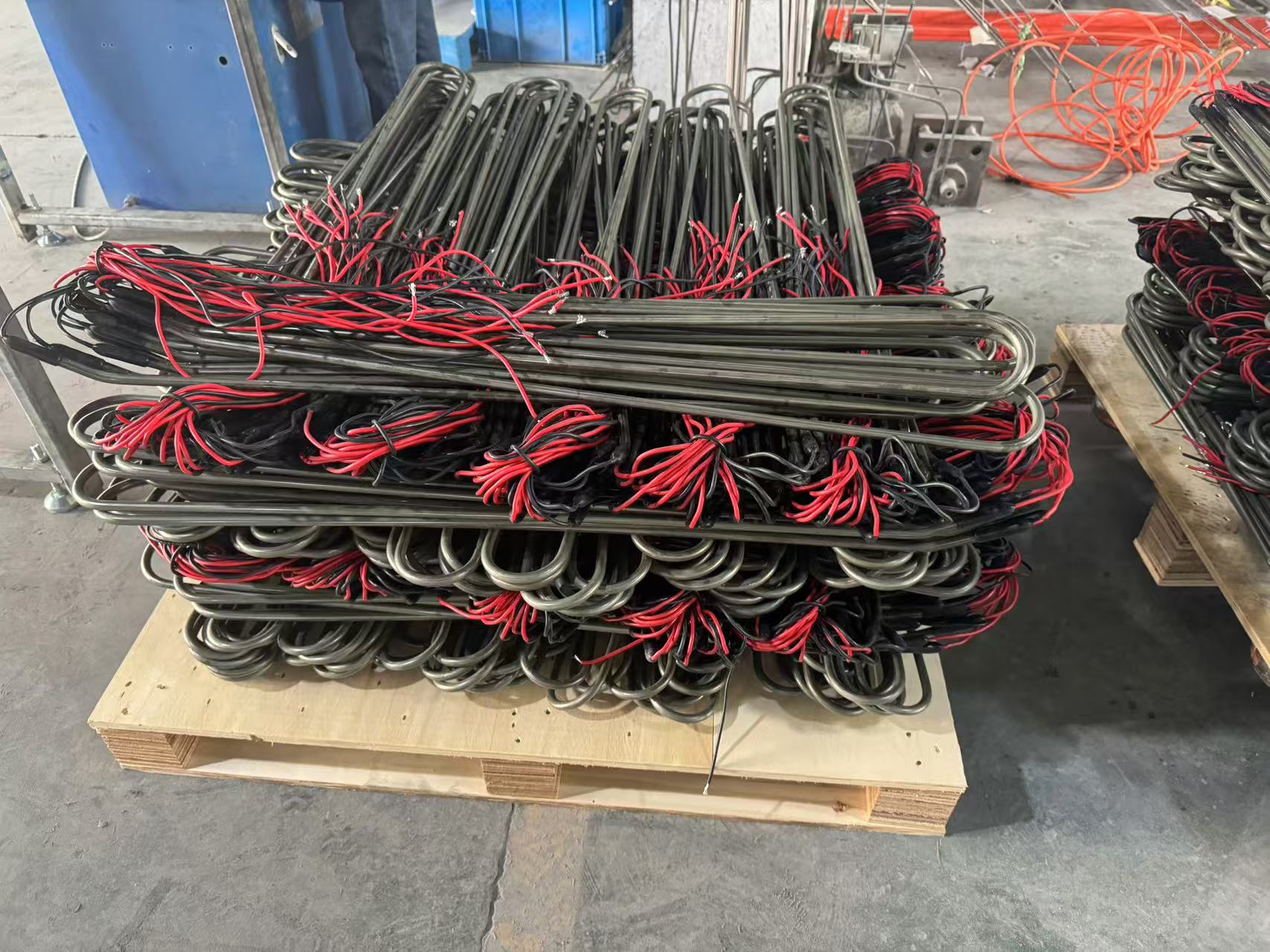

Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
