Product Configuration

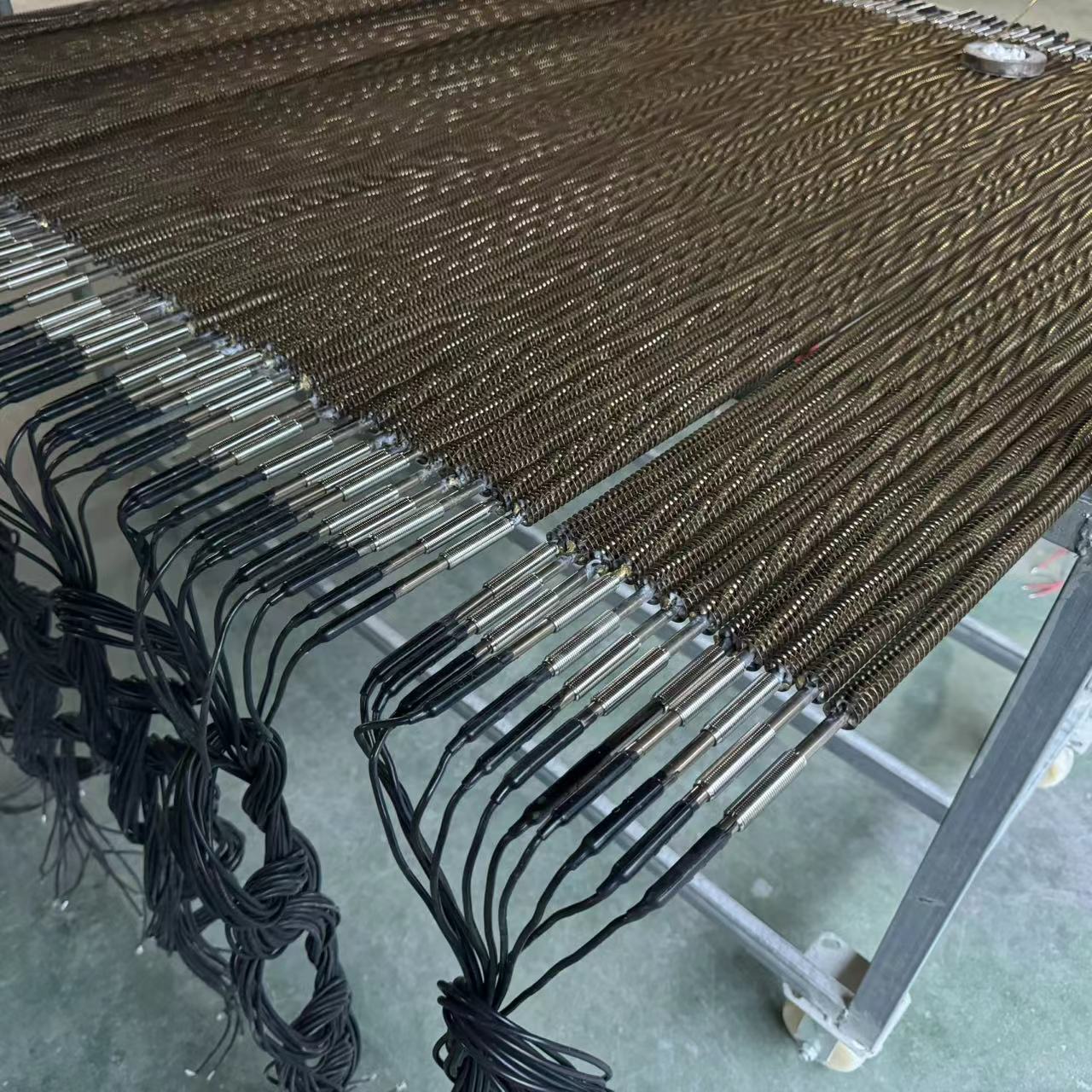

The Finned Heater Element is a dedicated core component for forced convection air heating. It is specifically designed for dry air heating scenarios. By welding high-density fins on the outer wall of the metal heating tube, the original surface heat dissipation of the tube is transformed into large-area heat dissipation through the fins. The heat dissipation area is increased by 3 to 5 times compared to the ordinary straight-type heating tube, significantly improving the heat exchange efficiency, enabling rapid heating and uniform temperature control, and addressing the pain points of low air heating efficiency and slow heating speed of ordinary heating tubes.
The finned heater element core is made of SUS304/316 stainless steel tubes as the base material. It is equipped with a Cr20Ni80 nickel-chromium alloy heating core, and the tube is filled with high-density, high-temperature-resistant modified magnesium oxide powder. The insulation and heat insulation performance is excellent. The fins are made of stainless steel strips and are seamlessly combined with the tube body through a high-frequency welding process. The welding is firm and does not fall off, and it can withstand high temperatures without deforming. It can work stably in dry heating and forced convection environments for a long time. The finned heater element has the characteristics of being resistant to dry heating, corrosion-resistant, anti-oxidation, and having low thermal inertia.
The finned heater element supports various structural customization such as straight type, U type, W type and irregular type. The pipe diameter, fin spacing and power can be adjusted according to the equipment space and heating requirements. It is compatible with 110V/220V single-phase and 380V three-phase voltages. It can be used individually or combined into a heating module. The finned heater element is widely used in air heating scenarios such as industrial ovens, HVAC, and food drying. It is easy to install and can be adapted to the air ducts and heating cavities of various equipment. It is CE/ROHS certified and has a service life of ≥ 12,000 hours under normal use.
Product Paramenters
| Porduct Name | Finned Heater Fin Heating Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,etc |
| Shape | Straight,U shape,W shape,or customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Finned Heating Element |
| Terminal | Rubber head,flange |
| Length | Customized |
| Approvals | CE, CQC |
|
|
|
Thermal core: Cr20Ni80 nickel-chromium alloy (standard model) / OCr25Al5 iron-chromium aluminum alloy (high temperature resistance model), with stable resistance, no core burning, and high heat conversion efficiency
Insulation layer: High-density high-temperature resistant modified magnesium oxide powder, filled under high pressure, insulation resistance ≥ 100 MΩ, temperature resistance ≥ 800℃, no leakage risk
Tube body: SUS304 stainless steel (mainstream model) / 316L stainless steel (anti-corrosion model) / titanium tube (high corrosion resistance model), seamless tube formed, resistant to pressure and corrosion
Fin: Steel strip fins (high temperature resistance), high-frequency welding combined with the tube body, firmly attached without falling off, heat dissipation area increased by 3-5 times
Connection terminals: Ceramic insulating terminals / high-temperature silicone sealing, anti-leakage and anti-oxidation, suitable for high-temperature environment connections
Shape Choose
Straight
U shape
W shape
1. Small warm air blower / air curtain machine: Φ10mm aluminum fins, 220V, 500W/800W/1000W, straight type
2. Industrial small oven: Φ12mm steel strip fins, 220V/380V, 1000W/1500W, U-shaped, U-shaped combined heating exhaust
3. Central air conditioning fresh air heating: Φ14mm stainless steel fins, 380V, 2000W/3000W, straight type combined heating exhaust
4. Food dryer: Φ12mm fins, 220V, 1500W, W-shaped, suitable for drying cabinet ducts
Product Features
*** Efficient heat dissipation, high thermal efficiency: The fins increase the heat dissipation area, and the thermal efficiency under forced convection is ≥ 90%. The temperature rise speed is 2 to 3 times higher than that of ordinary heating tubes.
*** Professional dry heating, strong stability: Specifically designed for air dry heating, finned heater element can work in an environment without water and under forced convection for a long time, without the risk of pipe explosion.
*** Excellent material, long service life: Stainless steel tube body + high-frequency welded fins, resistant to corrosion, oxidation, and high temperature. The service life is ≥ 12,000 hours.
*** Flexible customization, wide adaptability: finned heater element supports multi-structures, multiple voltages, and multiple power levels for customization. Can be used individually or in combination, and is suitable for heating chambers / air ducts of various devices.
Product Applications
1. Drying / Baking Equipment: Industrial ovens, hot air circulation ovens, food dryers, medicinal material dryers, paint baking ovens for metal parts
2. HVAC Ventilation Equipment: Central air conditioning fresh air heating sections, workshop warm air blowers, industrial hot air blowers, duct-type heaters
3. Production Processing Equipment: Plastic machinery hot air drying machines, printing equipment drying devices, electronic component aging chambers, paint baking room heating systems
4. Other Industrial Equipment: Cold storage defrosting hot air heating, industrial dehumidifiers, new energy battery drying equipment
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
