Product Configuration

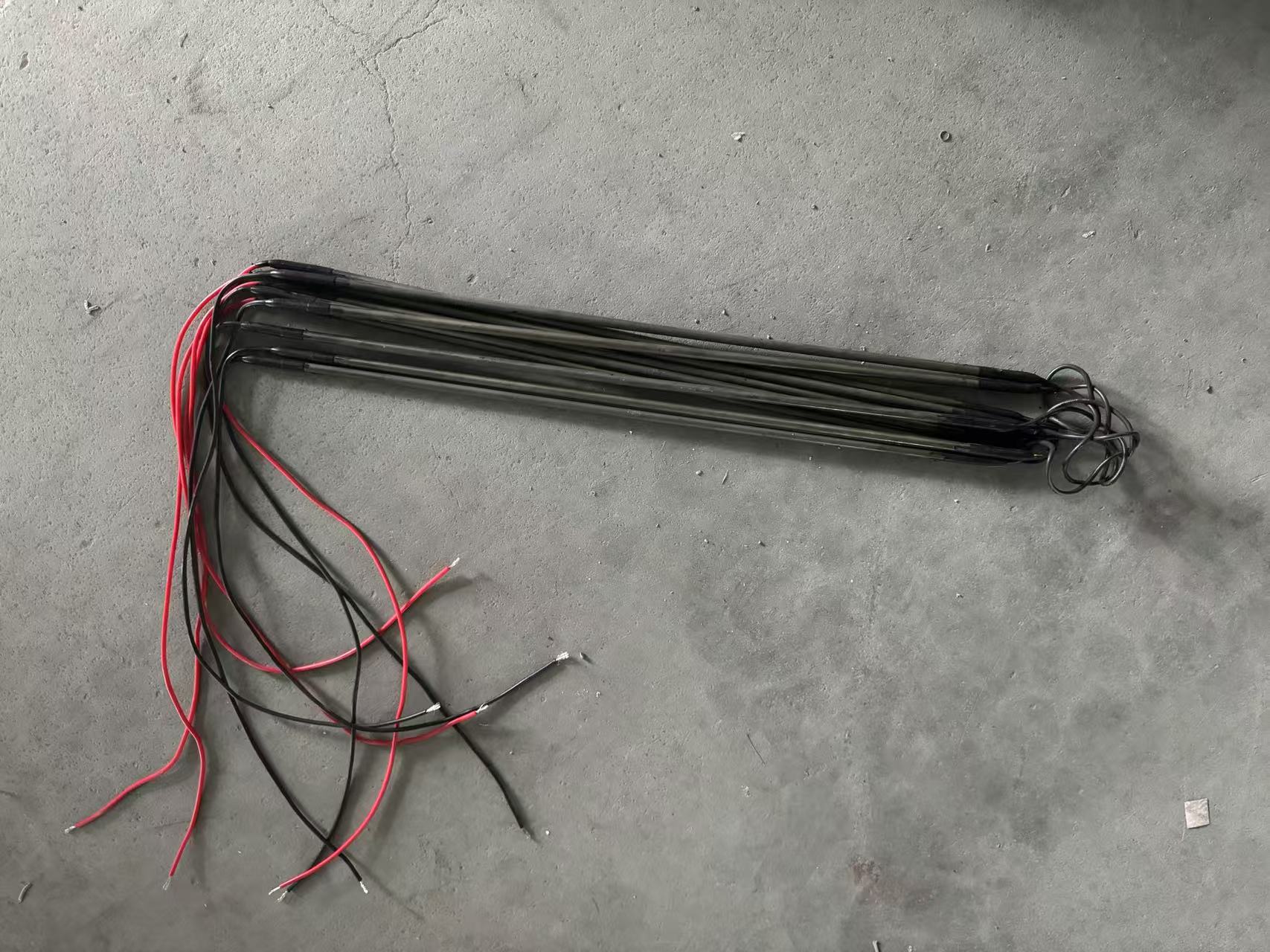

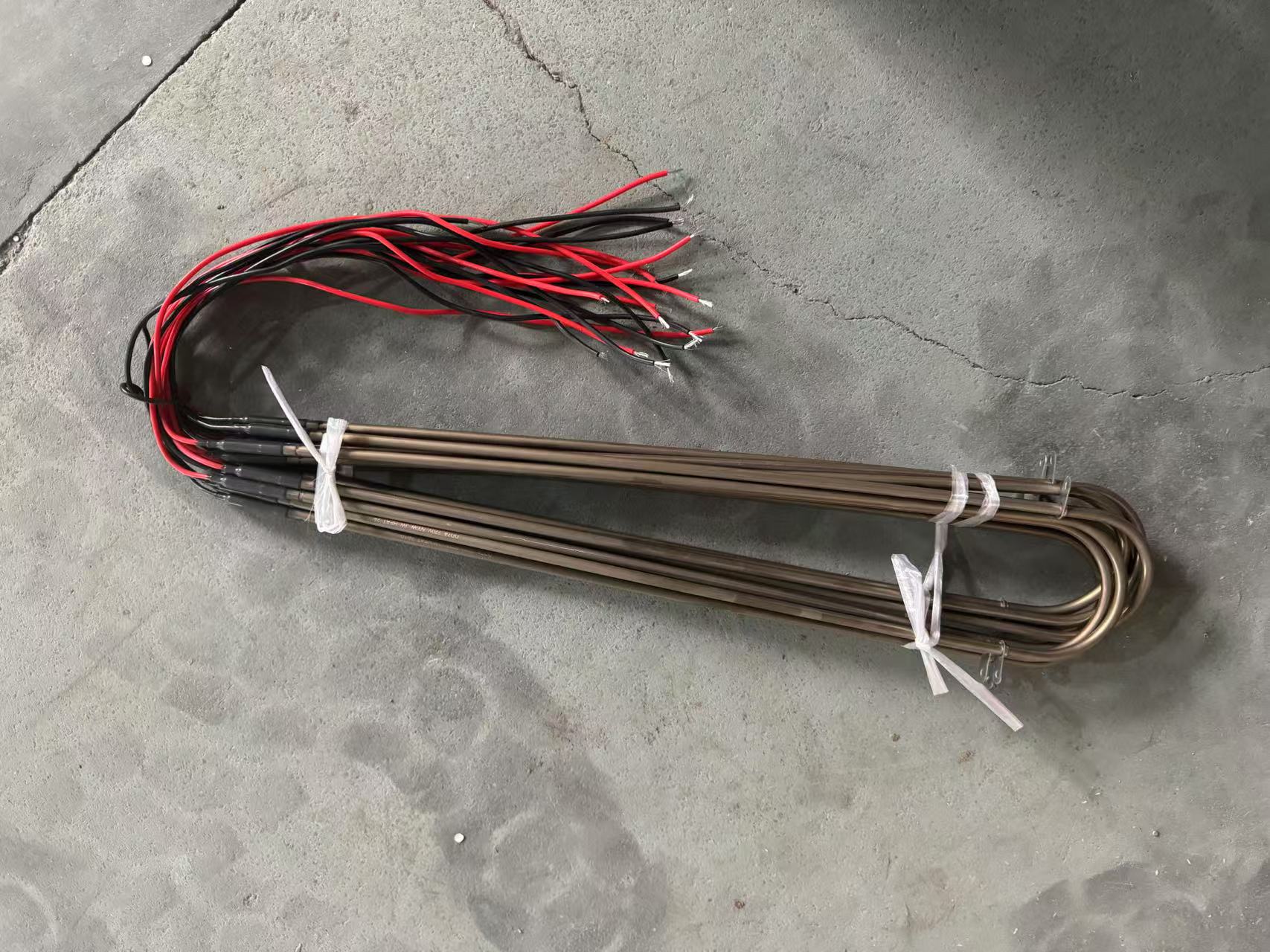

The evaporator defrost heater, as the core defrosting component of refrigerators and freezers, directly acts on the evaporator coil of the refrigeration core. The defrost heater is a key component for solving the problems of reduced refrigeration efficiency, compressor overload, and soaring energy consumption caused by frost and ice accumulation on the evaporator. It is widely used in evaporator defrosting systems of various refrigeration equipment such as household refrigerators, upright freezers, commercial display cabinets, and small cold storages.
The evaporator defrost heater is equipped with industrial-grade core components and features a built-in Cr20Ni80 nickel-chromium alloy heating core. The resistance is stable and does not burn the core, with a heat conversion efficiency of over 95%. It heats up quickly and heats evenly without local hotspots. While gently melting the evaporator coil and frosting, it does not damage the evaporator fins and surrounding precision components. The outer tube is made of 304 stainless steel pipe, which is resistant to pressure and corrosion, suitable for the harsh environment inside refrigerators with low temperatures and high humidity. It can work stably within a wide temperature range of -40℃ to 200℃, and is not afraid of long-term erosion by condensate water. The pipe is filled with high-density magnesium oxide powder, which has excellent insulation and heat insulation performance. It is paired with IP65 waterproof sealing technology, fully sealed connection terminals, effectively preventing water vapor from penetrating, with an insulation resistance of ≥100MΩ. It is safe to use without the risk of leakage.
According to the evaporator layout, the defrost heater is designed with straight type, U type (main model), and M type structures. The defrost heater tube diameters are Φ6.5mm/Φ8.0mm/Φ10.7mm, covering all ranges. The defrost heater element precisely matches the spacing of different specifications of evaporator fins, and can be directly fixed without modification. It is compatible with 95% of mainstream brands of refrigerators and freezers, with selectable rated voltages of 110V/220V, and can adapt to different power ratings of refrigeration equipment ranging from 50W to 300W. It is equipped with stainless steel installation clips, and can be replaced by hand without professional tools. The evaporator defrost heater has the quality of original factory replacement, a service life of ≥8000 hours, effectively restoring the refrigeration efficiency of the equipment, reducing energy consumption, and extending the service life of the entire machine.
Product Paramenters
| Porduct Name | Evaporator Heater Element for Defrosting |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,A-A type,U shape,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Defrost Heater Element for evaporator |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Company | Manufacturer/supplier/factory |
|
The evaporator defrost heater for unit cooler is used for the air cooler defrosting,picture shape of defrost heating element is A-A type (double straight tube ),tube length custom is following your air-cooler size,our all defrost heater can be customized as required. The tubular defrost heater tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Defrost Heater for Air-cooler Model
Singel Straight Defrost Heater
A-A Type Defrost Heater
U Shaped Defrost Heater
UB Shaped Defrost Heater
B Typed Defrost Heater
BB Typed Defrost Heater
Product Features
1. Defrosting
The chiller's surface is vulnerable to frost in low-temperature environments. To maintain regular equipment performance, the tubular defrost heater for unit cooler melts the frost layer by heating.
2. Improve efficiency
the frost layer will hinder air circulation and heat exchange, and the tubular defrost heater for unit cooler can effectively restore the heat exchange performance of the chiller.
3. Increase the equipment's lifespan
Frequent defrosting can lessen the strain on the machinery and prevent harm from an excessively thick layer of frost.
Product Application
1. Household Refrigeration Equipment (Main Core Application Scenario)
The deforst heater element suitable for various refrigerators and freezers used in households. It is the standard replacement / original accessory for evaporator core defrosting in household refrigeration equipment.
2. Commercial Refrigeration Equipment (Medium and Small Power Industrial Adaptation)
The defrost heater element applicable to refrigeration display / storage equipment in commercial scenarios such as supermarkets, convenience stores, restaurants, and fresh food stores, meeting the defrosting requirements for evaporators under frequent use.
3. Lightweight Industrial Refrigeration Equipment (Large Power Customized Adaptation)
The defrost heater element suitable for lightweight refrigeration devices in light industrial production, warehousing, and logistics scenarios, adapted for large evaporators' defrosting. Requires customized large power / non-standard specifications.
4. Special Customization Adaptation Scenarios (Non-standard Specification Customization)
The defrost heater element supports customization based on evaporator layout, voltage, and power, adapting to the defrosting of evaporators of non-standard refrigeration equipment.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

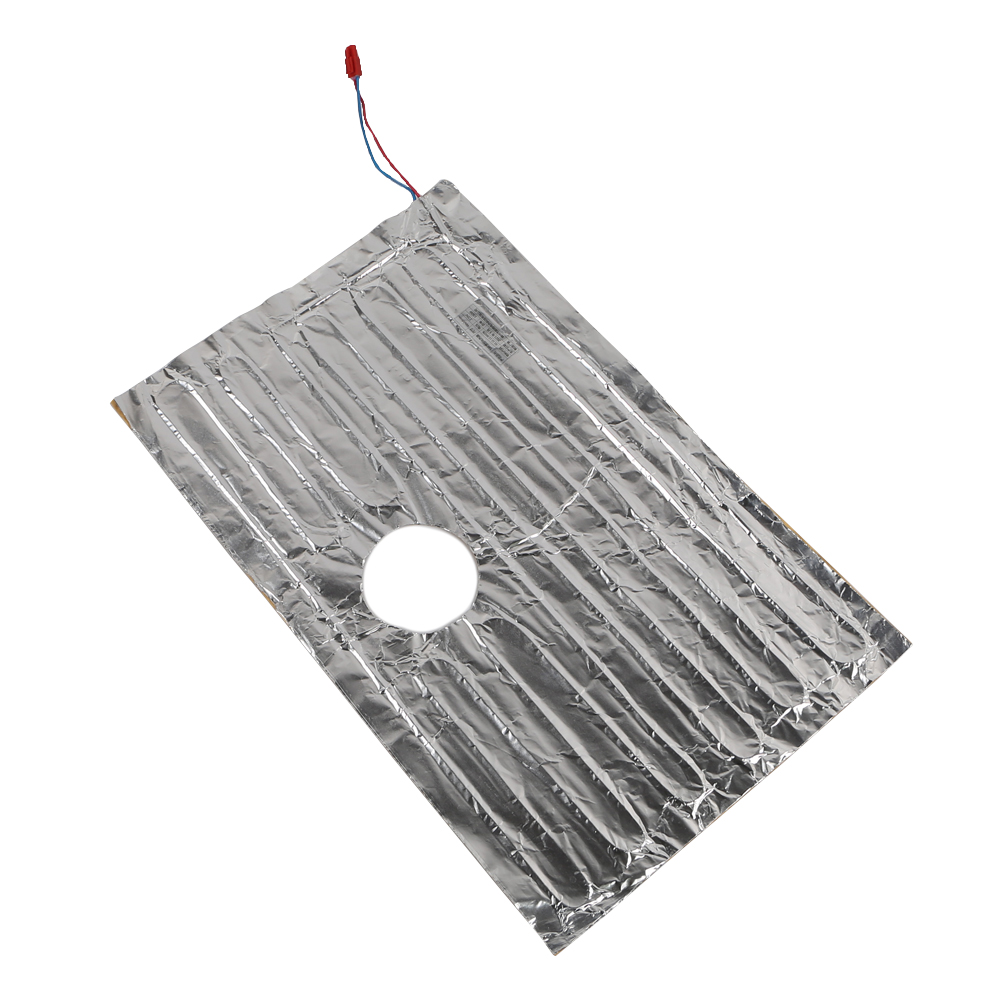

Aluminum Foil Heater
Immersion Heater

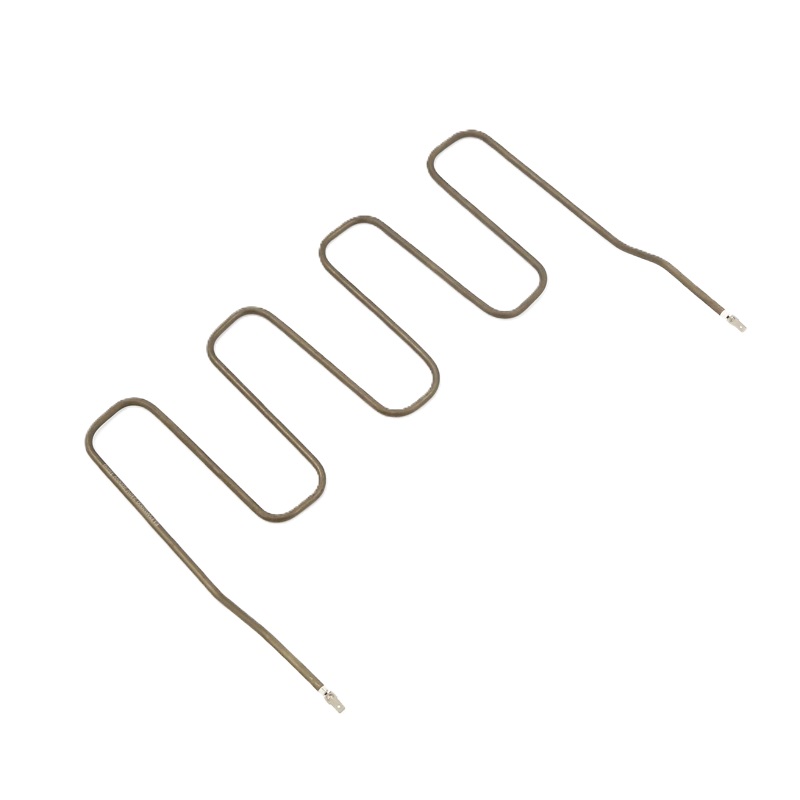

Oven Heating Element
Defrost Wire Heater

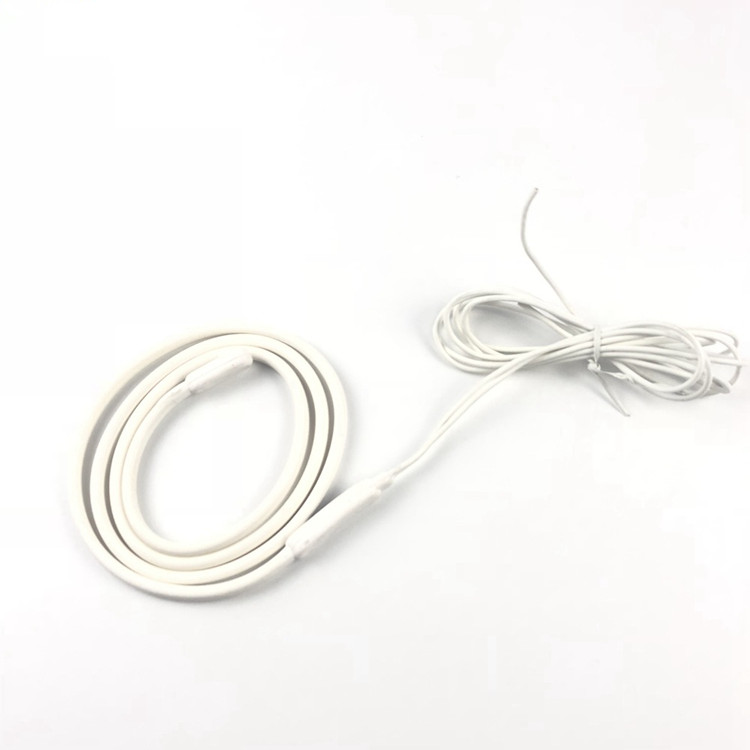

Drain Line Heater

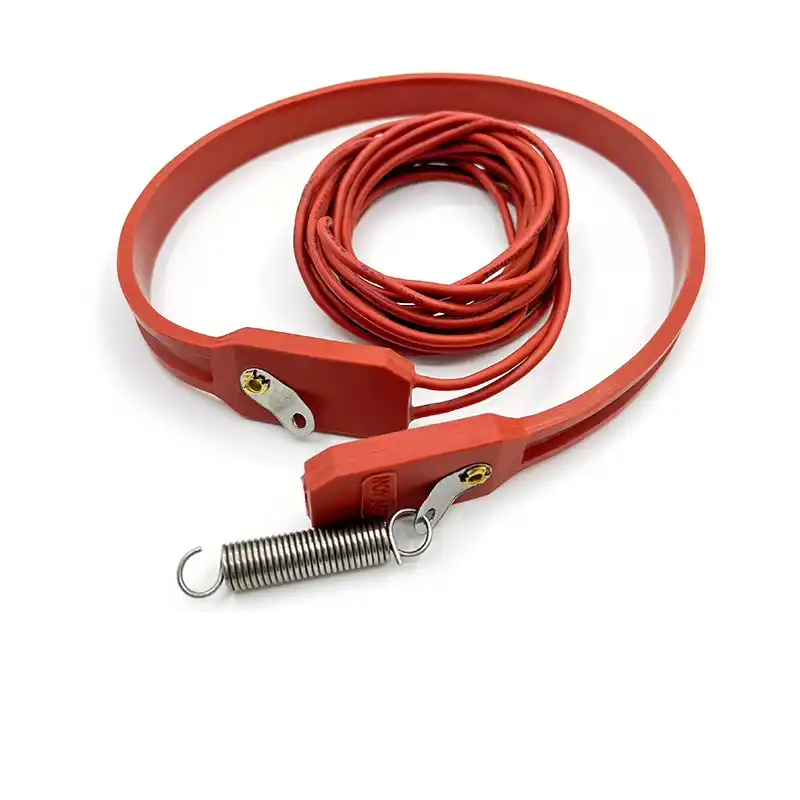

Crankcase Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
