Product Configuration

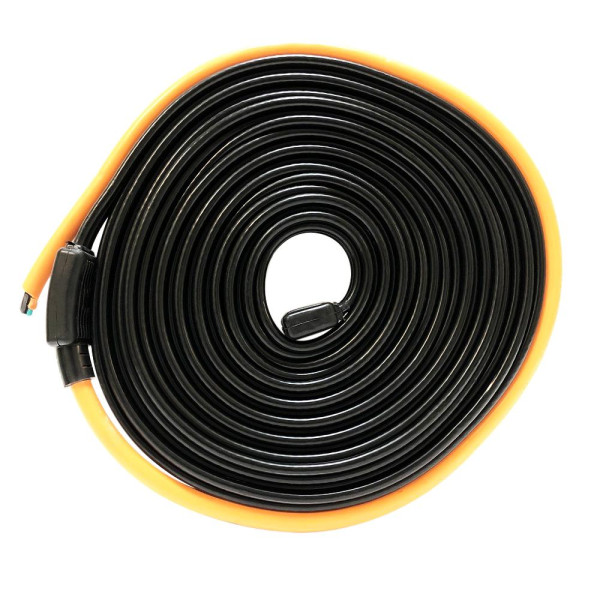

The Easy Heat drain pipe heating cable is a specially designed resistance heating cable, aiming to provide reliable and efficient solutions for various heating applications. The length of this type of pipe heating cable can be customized from 1 to 30 meters, with a working voltage of 110 -240 volts and a power of 23W/M. The design feature of pipe heating cable lies in that it does not contain an automatic shut-off function. Therefore, users can manually control the heating process according to specific needs. This characteristic makes it highly suitable for various scenarios that require continuous heating, such as industrial pipelines, home heating systems, or temperature maintenance in specific environments.

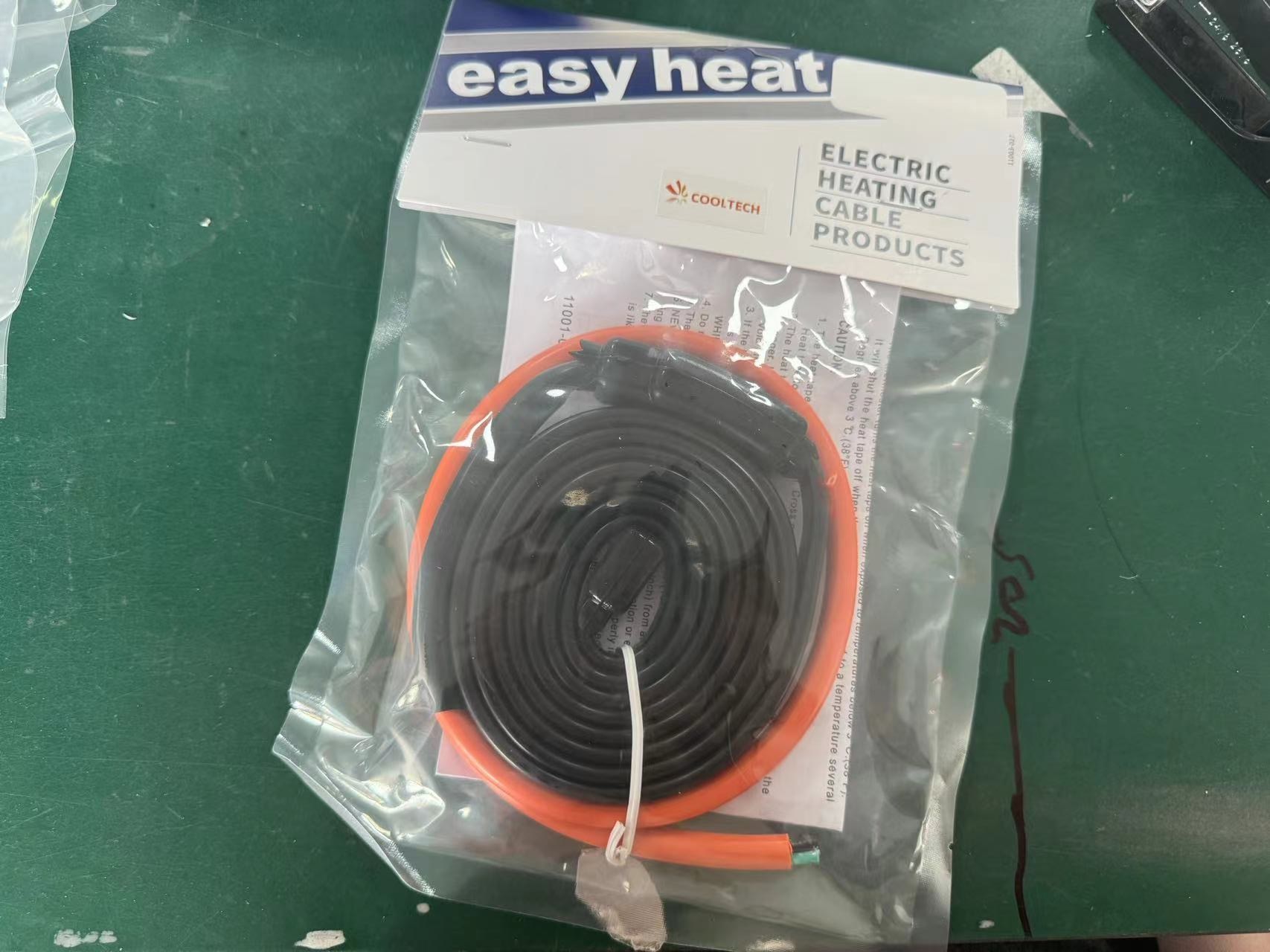

Easy heat drain pipe heating cable is a pre-assembled and ready-to-install heating cable, specially designed to prevent the freezing of metal and plastic water supply pipes. This Easy Heater pipe heating cable effectively avoids the problem of water freezing in the pipe in a low-temperature environment by continuously providing stable heat. It is not only applicable to family residences, but also widely used in commercial buildings and industrial facilities to ensure the normal operation of the water supply system during cold seasons.
Product Paramenters
| Porduct Name | 220V/110V Easy Heat HB04-2 Drain Pipe Heating Cable 4M |
| Material | Silicone rubber |
| Size | 5*7mm |
| Heating length | 0.5M-20M |
| Lead wire length | 1000mm,or custom |
| Color | white,grey,red,blue,etc. |
| MOQ | 100pcs |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | pipe heating cable |
| Certification | CE |
| Package | one heater with one bag |
| Company | factory/supplier/manufacturer |
|

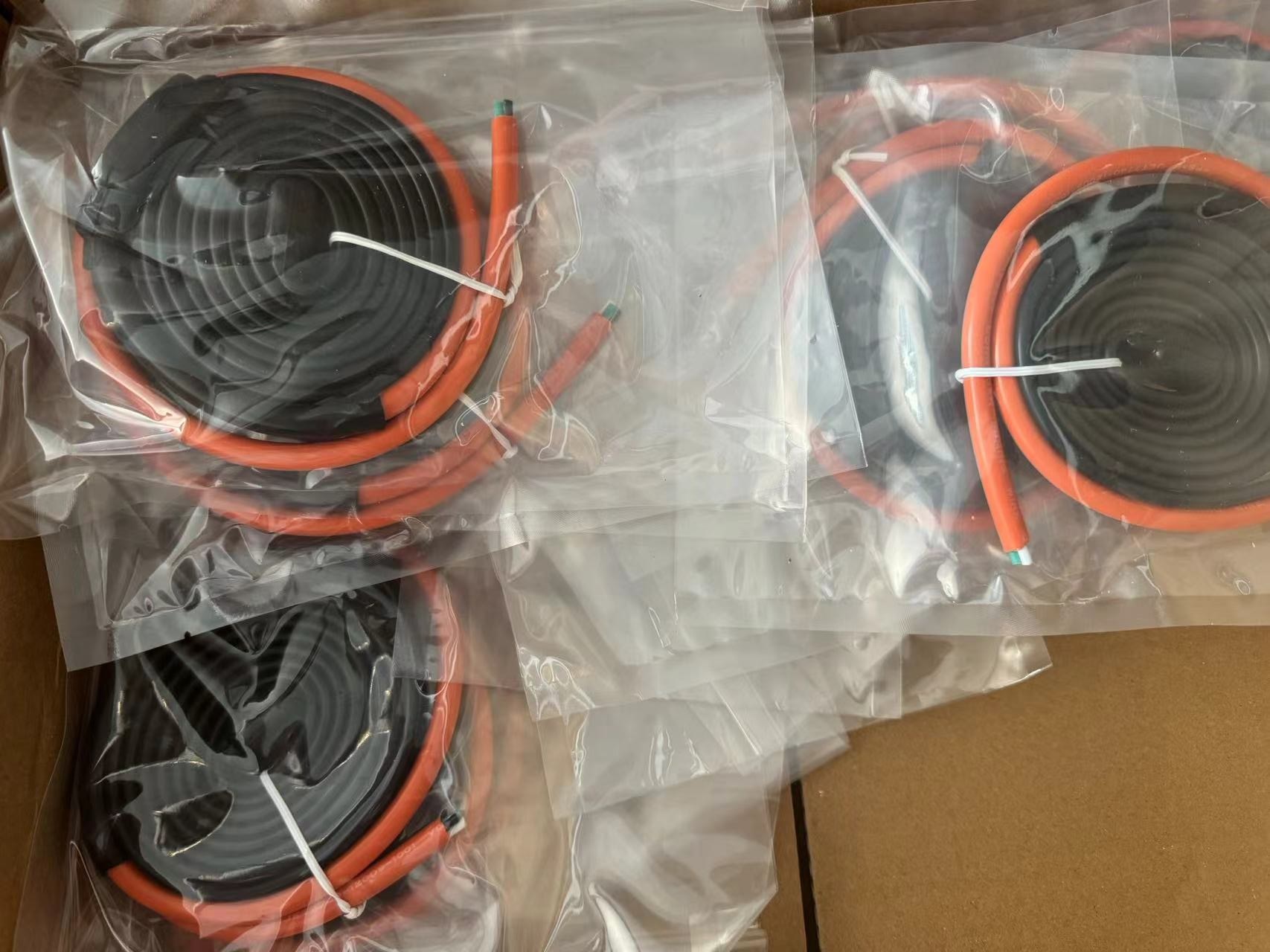

The power of drain pipe heating cable is 23W/M,the length of drain pipe heater have 1-30M.The longest can be made 30M. The package of drain pipe heating cable is one heater with one transplant bag,customized bag quantity at list more than 500pcs for each length. Jingwei heater is also producing the constant power drain line heater,the heating cable length can be cut by yourself,the power can be customized 20W/M,30W/M,40W/M,50W/M,etc. |
|
EasyHeat heat pipe heating cable is a constant wattage hard wire cable specifically designed for pipe anti-freezing. It is particularly suitable for outdoor installation at freezing temperatures and is used for the protection of refrigeration, condensation and air conditioning pipes. This heating cable can ensure that the related pipelines can operate normally even in extremely low-temperature environments, thereby avoiding damage or interruption caused by frost damage.
Product Features
1. Protects up to 14' of pipe from freezing
2. The pipe heating cable can be used on copper, iron, and schedule 40 PVC supply lines up to 1 1/2" in diameter
3. Helps prevent water damage and bursting pipes in sub-freezing temperatures
4. Integral thermostat turns heat cable on when freeze protection is needed and off when it isn't needed
5. Pipe and heating cable must be wrapped with insulation for effective freeze protection
Product Applications
1. Household appliances: the drain line heater used for defrosting drainage pipes of refrigerators, freezers, air conditioners and other equipment.
2. Commercial refrigeration equipment: the drain pipe heater used in the drainage system of supermarket freezers, refrigerated display cabinets and other equipment.
3. Industrial refrigeration equipment: the drain pipeline heater used for freezing prevention of drainage pipes such as cold storage and freezing equipment.
4. Automotive industry: the defrost drain heater used for antifreeze of automotive air conditioning drainage pipes.
Factory Picture
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Defrost Heater

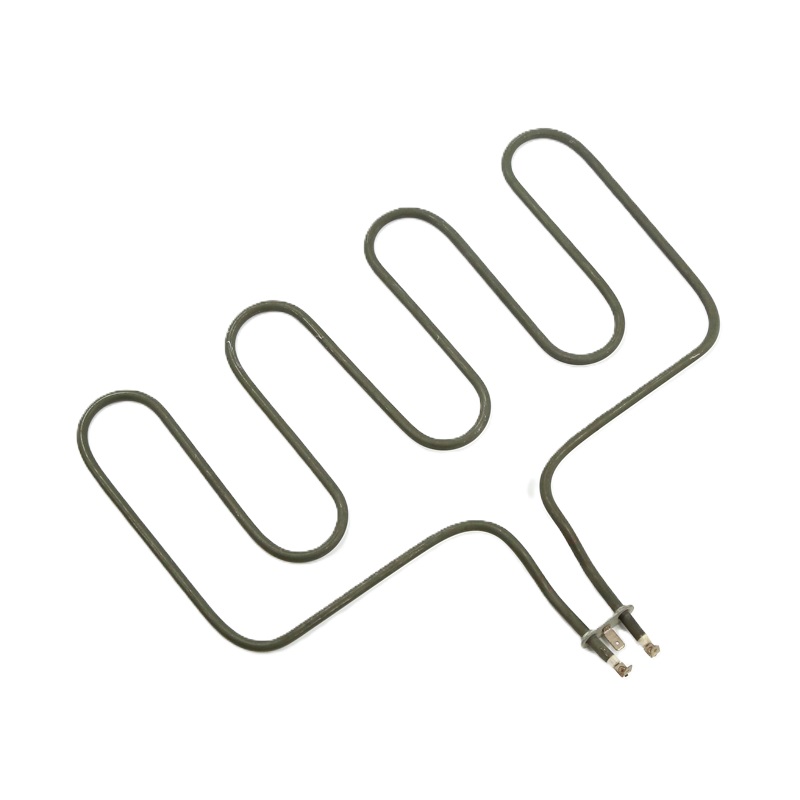

Oven Heating Element
Aluminum Tube Heater
Aluminum Foil Heater
Crankcase Heater
Defrost Wire Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
