Product Configuration

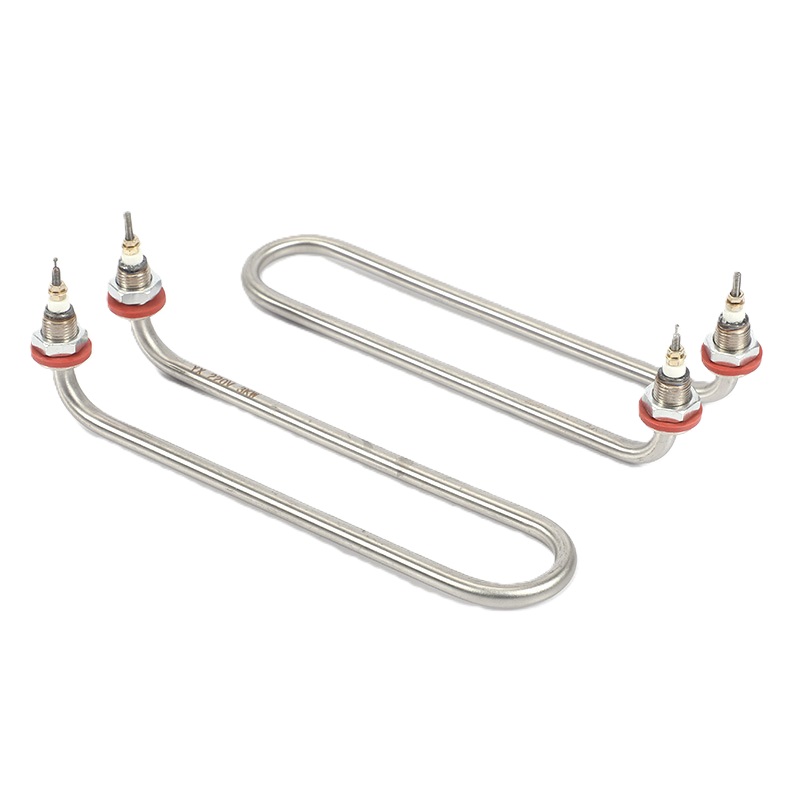

The factory-direct U-shaped tubular heater element is a universal core component for industrial electric heating, supporting OEM/ODM customization and large-scale wholesale by global equipment manufacturers, distributors, and engineering companies. Key features: SUS304/316L stainless steel tubes, Cr20Ni80/0Cr25Al5 heating core, high-density modified magnesium oxide insulation, precision integrated bending molding, no welding seams, and high structural stability.
The standard specifications of U-shaped heating tubes cover pipe diameters of Φ6.5 to Φ10.7 millimeters, single-arm lengths of 100 to 2000 millimeters, U-shaped opening widths of 50 to 500mm, rated voltages of 110V/220V/380V, single-unit power ranging from 100W to 5000W, suitable for dry air heating and liquid (water/oil/chemical medium) heating. We support customizing non-standard U-shaped opening widths, tube materials, power, lead wire lengths, and installation brackets, as well as explosion-proof/IP68 waterproof designs for special scenarios.
Product Paramenters
| Porduct Name | Wholesale U-shaped Tubular Heater |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | U Shape Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|
The U shaped tubular heater material we have stainless steel 201 and stainless steel 304.The Electric Tubular Heater Heating Element is used for the commercial kitchenware,such as rice steamer,heat steamer,hot showcase,etc.The U shape heating tube size can be customized as client’s requirements.Tube diameter can be choosed 6.5mm,8.0mm,10.7mm,etc. |
|
1. Heating Core: Cr20Ni80 nickel-chromium alloy, stable resistance, high thermal conversion efficiency, not easy to burn out.
2. Insulation Layer: High-density high-temperature resistant magnesium oxide powder, tightly filled, excellent insulation and thermal conductivity.
3. Outer Tube: SUS304/316L seamless stainless steel, anti-corrosion, high temperature resistance, suitable for various working environments.
4. Sealing End: High-temperature epoxy sealing, effectively isolating moisture and dust, enhancing waterproof and anti-aging performance.
5. Lead Wire: High-temperature silicone wire, stable power transmission, suitable for high-temperature working environment.
Product Type
✅ Industrial Equipment
Industrial oven, hot air circulation drying box, plastic machinery heating, hydraulic oil tank heating, mold heating, small chemical liquid tank heating, cold storage & freezer evaporator defrosting.
✅ Commercial Equipment
Commercial refrigerator, display freezer, water boiler, beverage heating equipment, food drying machine, commercial warm air blower, kitchen heating & insulation equipment.
✅ Household & Small Appliances
Household refrigerator defrost, small oven, electric water heater, constant temperature water tank, aquarium heating, pet water dispenser.
✅ Special Custom Scenarios
Vehicle-mounted heating equipment, marine low-corrosion heating, explosion-proof industrial heating, anti-corrosion medium heating (custom 316L/titanium tube).
Custom & Wholesale Service
- Support OEM/ODM customization: size, power, voltage, material, logo and packaging customization.
- Bulk wholesale available with favorable factory direct price, fast delivery for standard and customized orders.
- Full set of quality testing, 12-month warranty, professional technical support provided.
- Global shipping via DHL, FedEx, UPS and sea freight, with shockproof and waterproof packaging.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
