Product Configuration

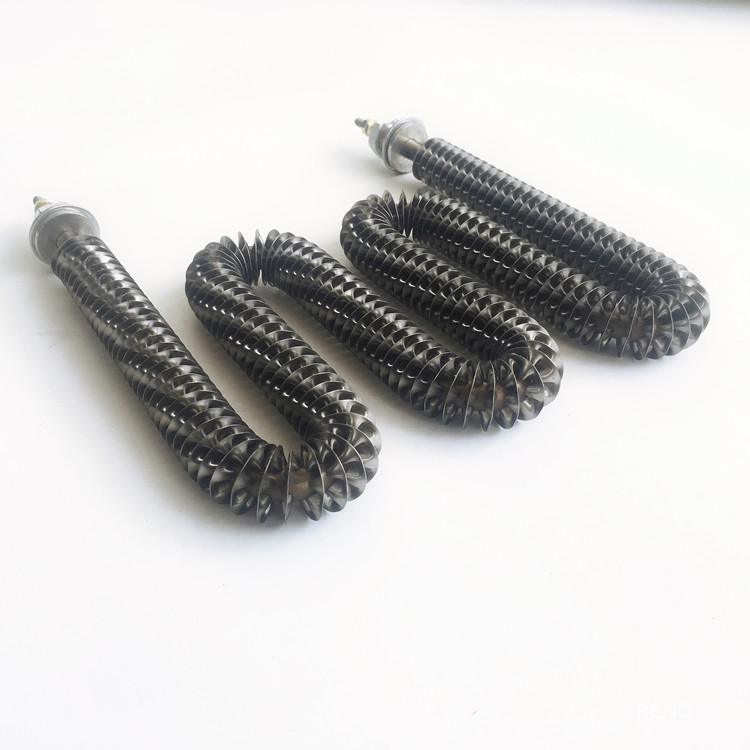

Tubular& finned heater tubulars are highly efficient heating solutions widely used in the industrial field. Their core advantages lie in their unique structural design and outstanding performance. This finned heater is composed of a solid tubular heating element with continuously spirally arranged fins on its surface. These fins are permanently welded to the sheath at a frequency of 4 to 5 per inch, thereby forming a highly optimized heat transfer surface. By increasing the surface area, this finned heater element design significantly enhances the heat exchange efficiency, enabling heat to be transferred from the heating element to the surrounding air more quickly, thereby meeting the demands of various industrial scenarios for rapid and uniform heating.
The role of fins is not limited to accelerating the heat transfer process; the tubular&finned heater element also have other important functions. For instance, fins can reduce the surface temperature of the heating element by dispersing heat, thereby ensuring that the equipment maintains optimal performance and safety during long-term operation. Lower surface temperatures not only reduce the risk of material fatigue or damage due to high temperatures, but also extend the overall service life of components. In addition, this finned heater design can effectively prevent safety hazards caused by high temperatures, such as the risk of burns or fires, providing additional safety guarantees for operators and equipment.
Product Paramenters
| Porduct Name | Stainless Steel Air Tubular&Finned Tubular Heaters Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,etc |
| Shape | Straight,U shape,W shape,or customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Finned Heater Element |

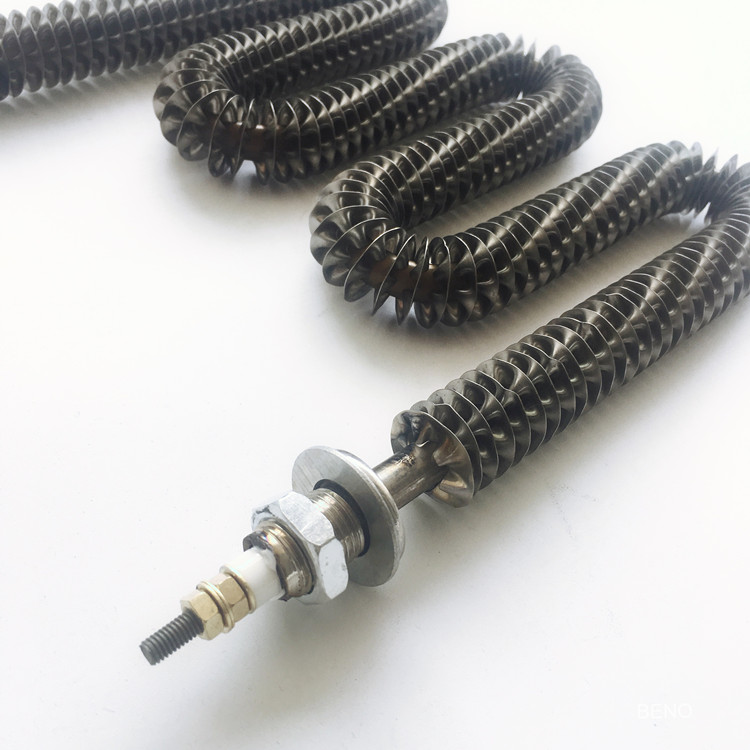

| Terminal | Rubber head,flange |
| Length | Customized |
| Approvals | CE, CQC |
| The shape of tubular&finned heater element we usually made by straight,U shape,W shape,we can also customized some special shapes as required.Most customer's is choosed the tube head by flange,if you used the finned heating elements on unit cooler or other defrsoting equipments,maybe you can choosed the head seal by silicone rubber,this seal way has the best waterproof. | |
Shape Choose
Straight
U shape

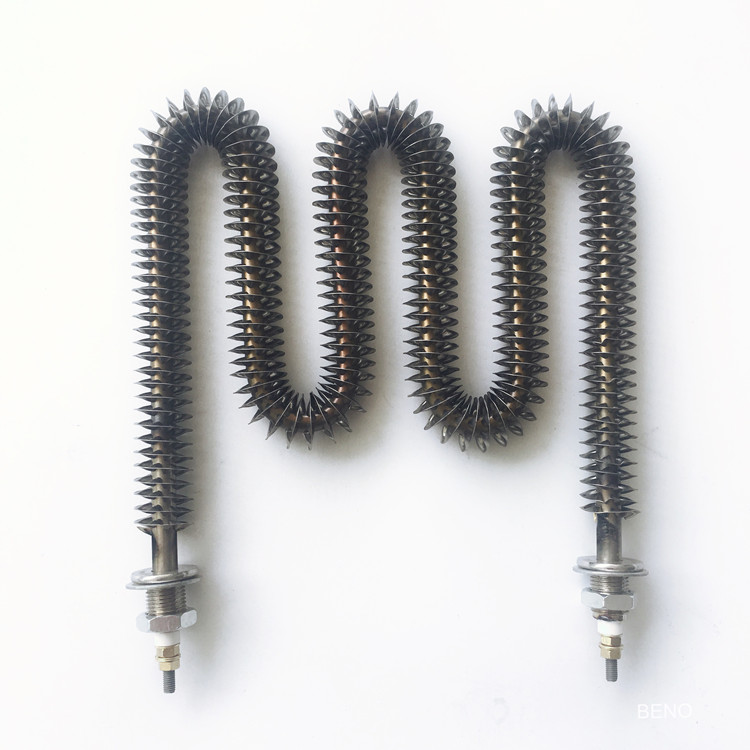

W shape
*** High heating efficiency, good energy saving effect.
*** Strong structure, long service life.
*** Adaptable, can be used in a variety of media (air, liquid, solid).
*** Finned heating element shapes and sizes can be customized according to requirements.
Product Features
Increased Surface Area
The fins significantly increase the surface area of the heating element, facilitating more efficient heat transfer.
Enhanced Heat Transfer
The fins allow for faster heat dissipation, leading to quicker heating and cooling.
Customized Designs
Finned heaters can be designed in different shapes, sizes, and wattages to suit specific application needs, such as straight, U-shaped, or W-shaped configurations.
Uniform Heat Distribution
The fins help distribute heat more evenly across the surface, promoting uniform heating and reducing hot spots.
Versatile Applications
Finned heating elements are suitable for a wide range of applications, including air heating, industrial ovens, drying processes, and packaging equipment.
Product Applications
Finned heater tube element is a kind of efficient and reliable heating element, which is widely used in industrial and household fields. Selecting the right finned heating tube and maintaining it regularly can significantly improve equipment performance and life. For more information, please refer to the specific product description or consult a professional technician.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

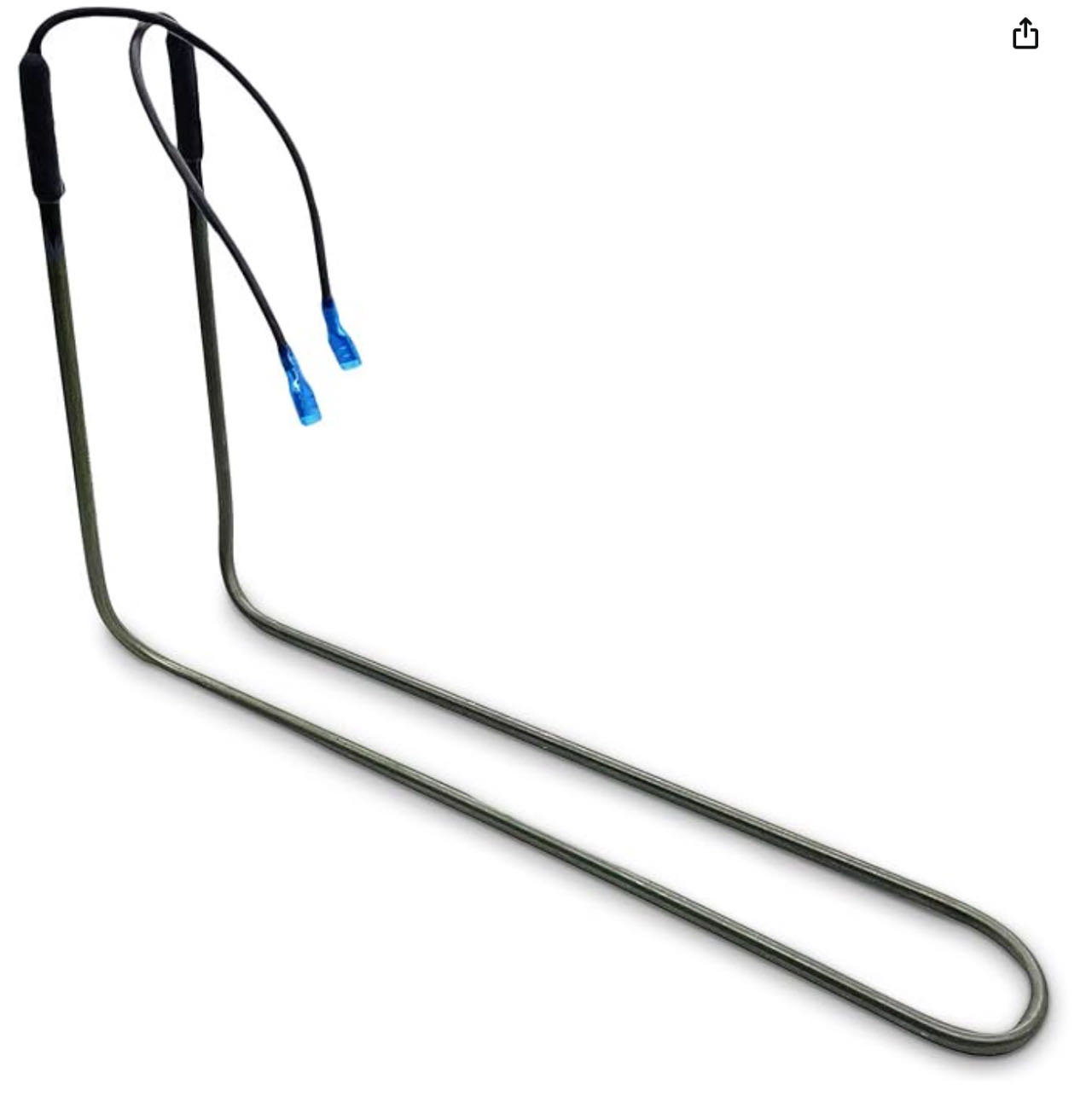

Defrost Heater Element
Immersion Heater
Oven Heating Element

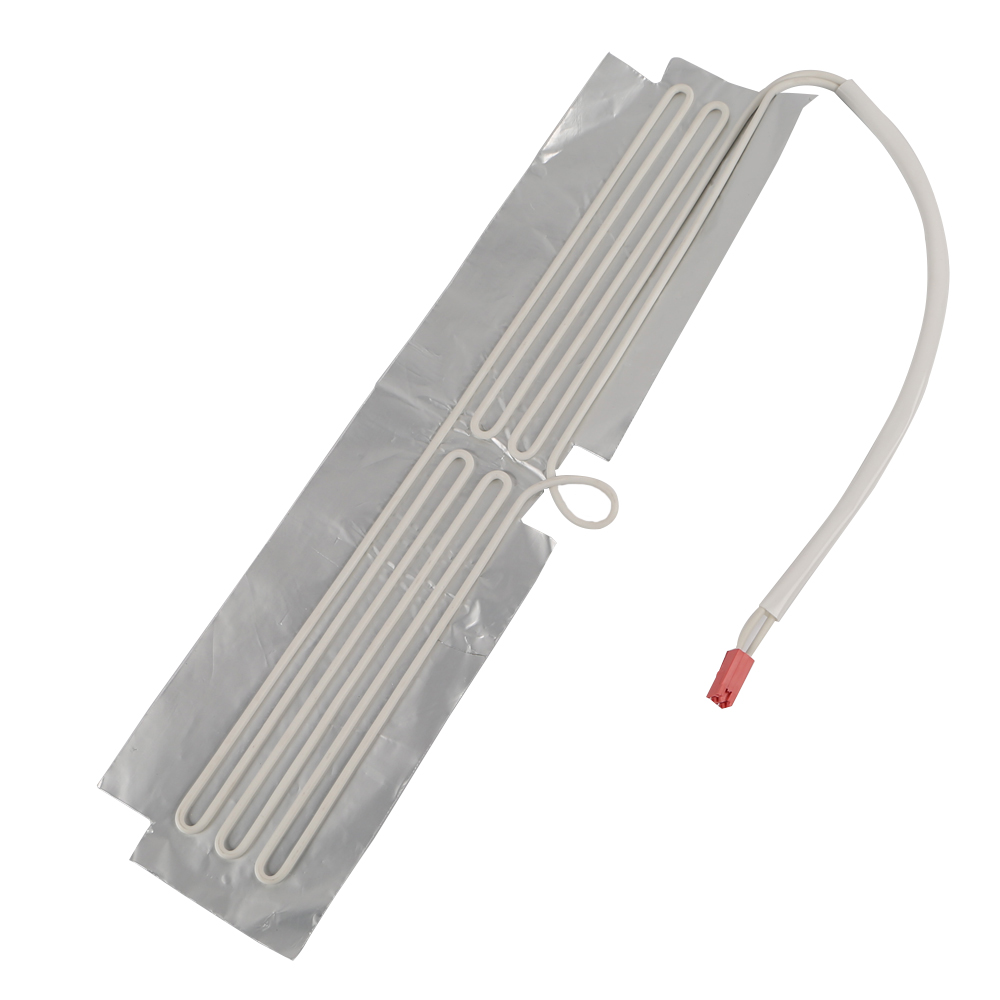

Aluminum Foil Heater
