Product Configuration

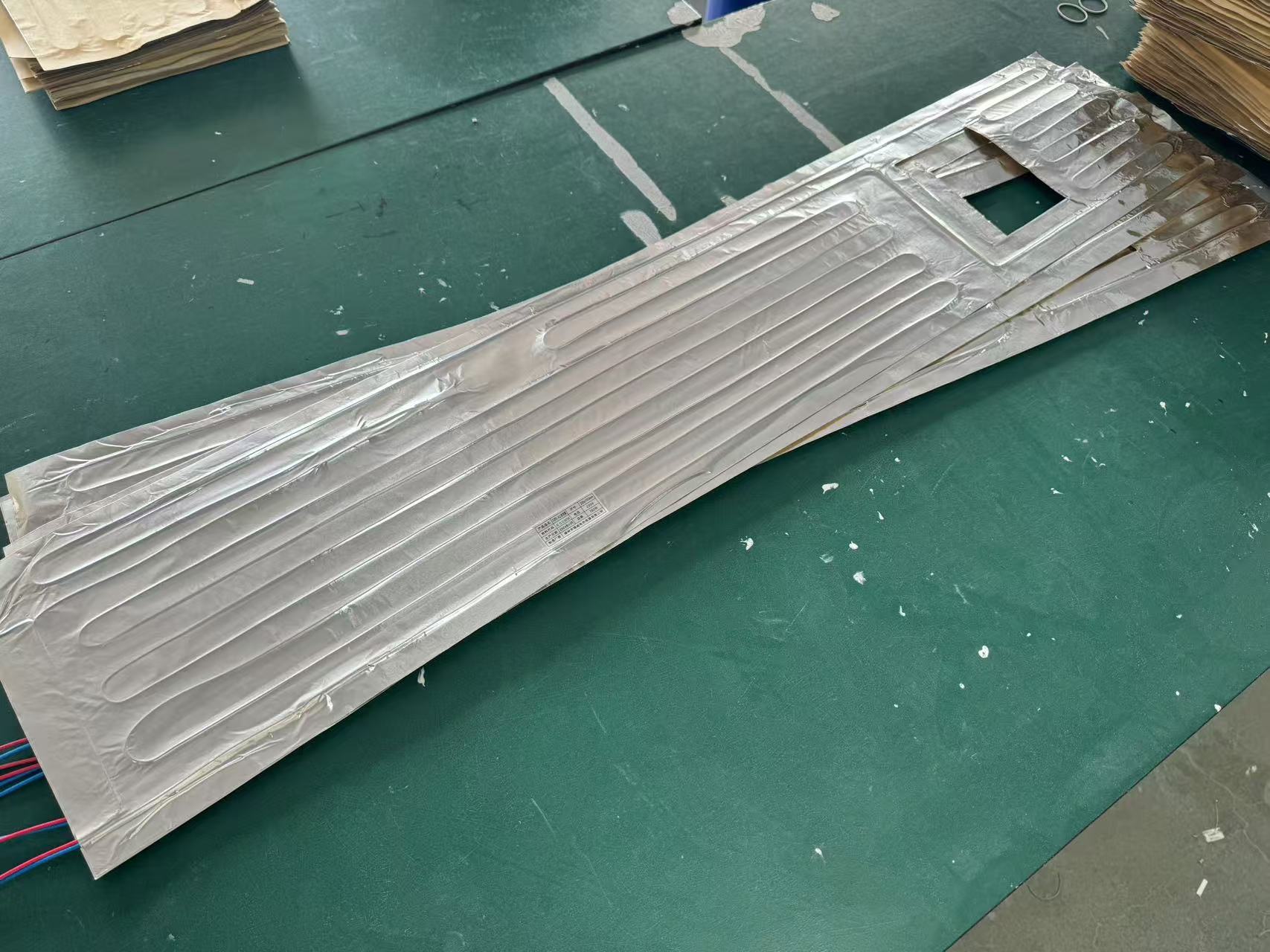

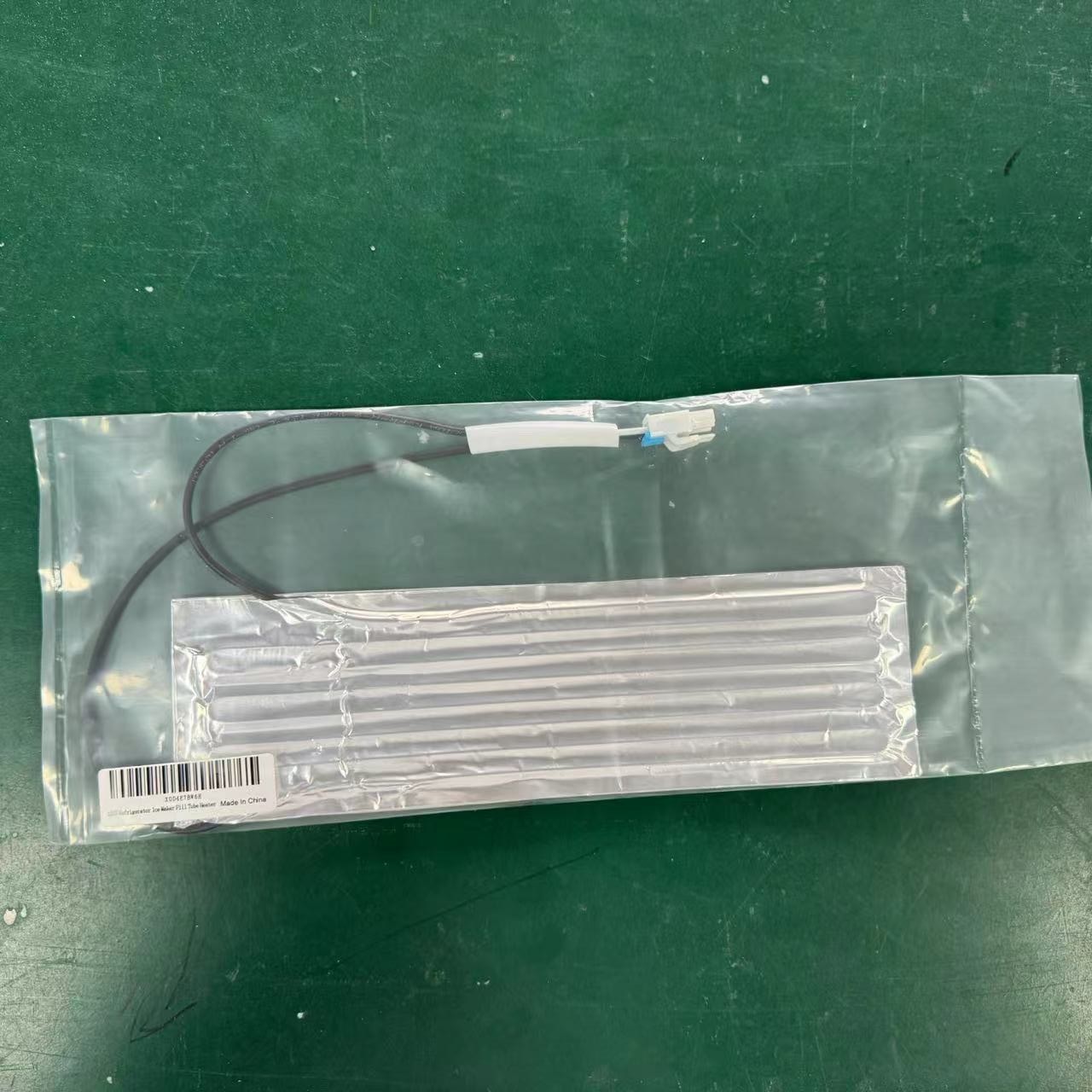

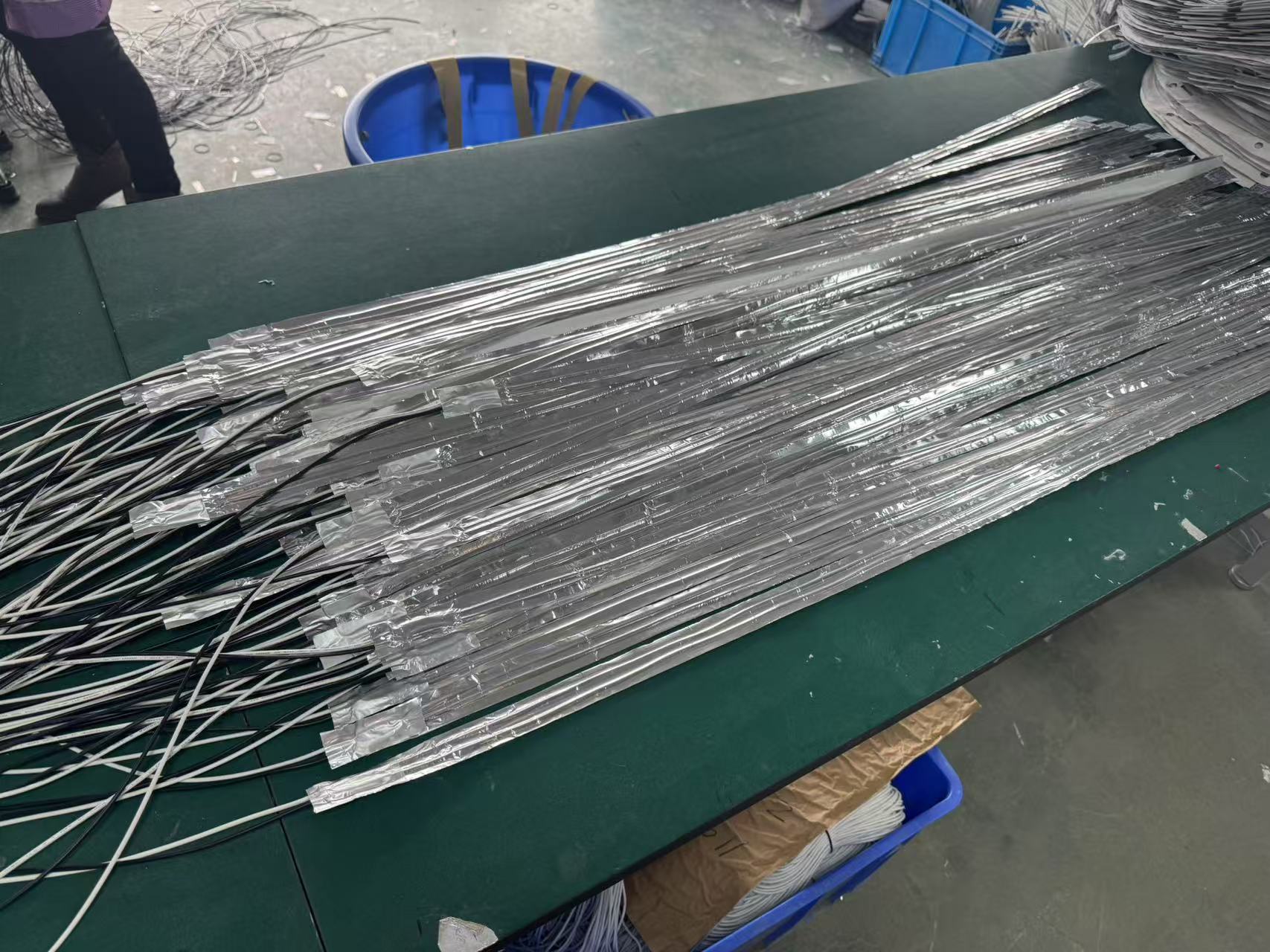

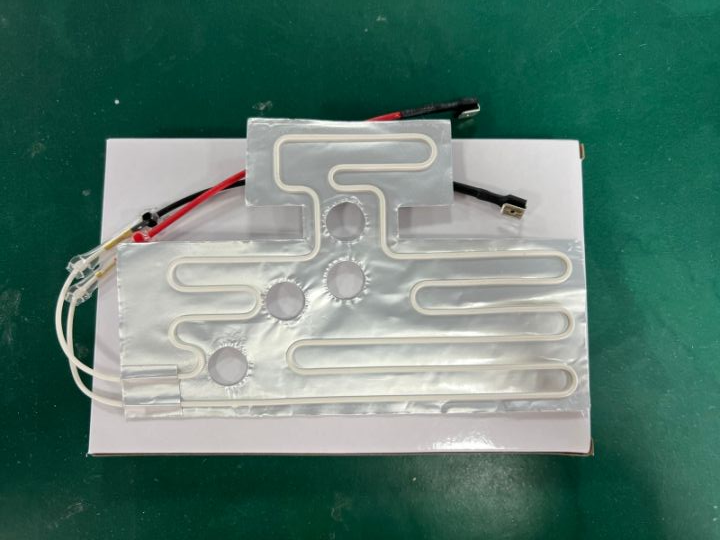

The refrigerator part aluminum foil heater is an ultra-thin and flexible heating element specially designed for defrosting the refrigerator evaporator, heat compensation, and prevention of freezing during drainage. The aluminum foil heater is an ideal alternative to the traditional tubular heating elements. The size, shape, voltage and power of the defrost heater can be customized according to customer requirements. The voltage range is from 12V to 240V. The core functions of aluminum foil heater include evaporator defrosting, drainage to prevent freezing, and thermal compensation for insulation.
*** Efficient heat conduction: Utilizing a high-purity aluminum foil base, it has excellent heat conduction performance. Combined with precisely arranged heating wires, aluminum foil heater ensures uniform heating and rapid defrosting, with high thermal efficiency.
*** Ultra-thin and flexible: Thin in thickness and small in volume, refrigerator part aluminum foil heater can easily fit into narrow spaces and irregular surfaces such as evaporators, water collection trays, and drainage pipes, and has strong installation adaptability.
*** Reliable and durable: The outer layer of the heating wires is insulated with PVC/silicone, which is waterproof, moisture-proof, and resistant to low-temperature impacts. It is suitable for the humid and low-temperature environment inside the refrigerator, with a long service life .
*** Intelligent temperature control: The defrost aluminum foil heater can be paired with a thermostat/defrost timer to achieve automatic start and stop, precisely control the defrosting temperature, avoid excessive heating, and balance safety and energy efficiency.
*** Flexible customization: The aluminum foil heater supports customization of size, power, shape, and wire specifications to meet the needs of different brand refrigerator accessories.
Product Paramenters
| Porduct Name | Refrigerator Drain Defrost Part Aluminum Foil Heater |
| Material | heating wire +aluminum foil tape |
| Voltage | 12-230V |
| Power | Customized |
| Shape | Customized |
| Lead wire length | Customized |
| Terminal model | Customized |
| Resistant voltage | 2,000V/min |
| MOQ | 120PCS |
| Use | Aluminum foil heater |
| Package | 100pcs one carton |
|
The size and shape and power/voltage of refrigerator part aluminum foil heater can be customized as client’s requirement,we can be made following the heater pictures and some special shape need the drawing or samples. |
|
Product Features
1. Evaporator defrosting: aluminum foil heater attached to the evaporator coil, it defrosts regularly to ensure refrigeration efficiency and prevent frosting from affecting the cooling effect.
2. Drainage anti-freezing: The aluminum foil heater installed on the surface of the water collection tray or drainage pipe, it prevents the secondary freezing of defrosting water from blocking and avoiding water overflow.
3. Thermal compensation insulation: The aluminum foil heater helps maintain the stability of the refrigerator's internal temperature and enhances the overall performance of the refrigeration system.
Product Applications
Household refrigerators, commercial freezers, cold storage display cabinets, cold storage rooms, etc. - these are all types of refrigeration equipment that require automatic defrosting and low-temperature insulation.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

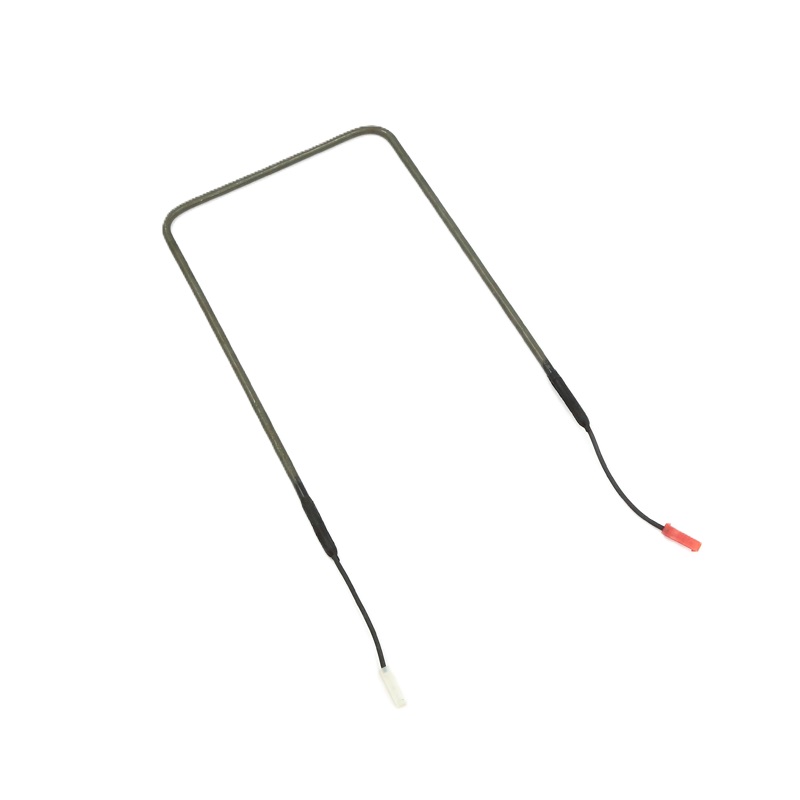

Defrost Heater Element

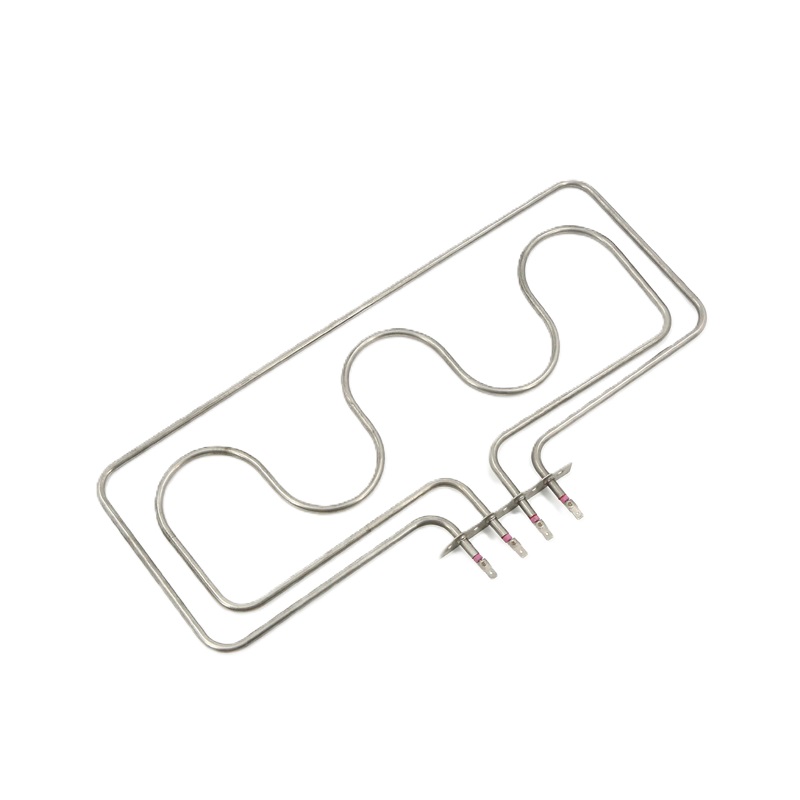

Oven Heating Element
Air Heating Tube
Pipe Heating Cable

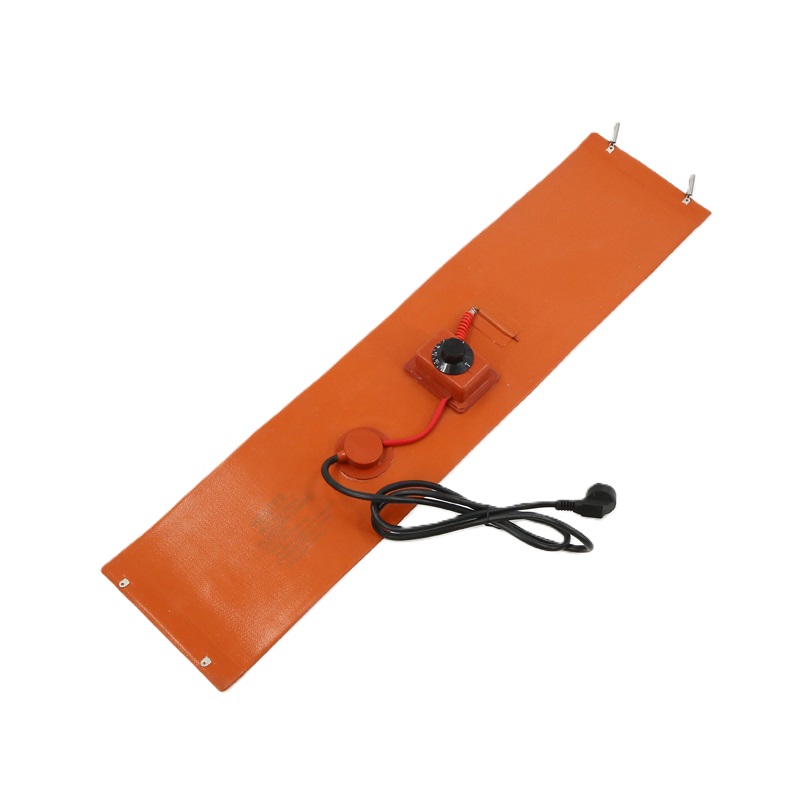

Silicone Heating Pad
Crankcase Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
