Product Configuration

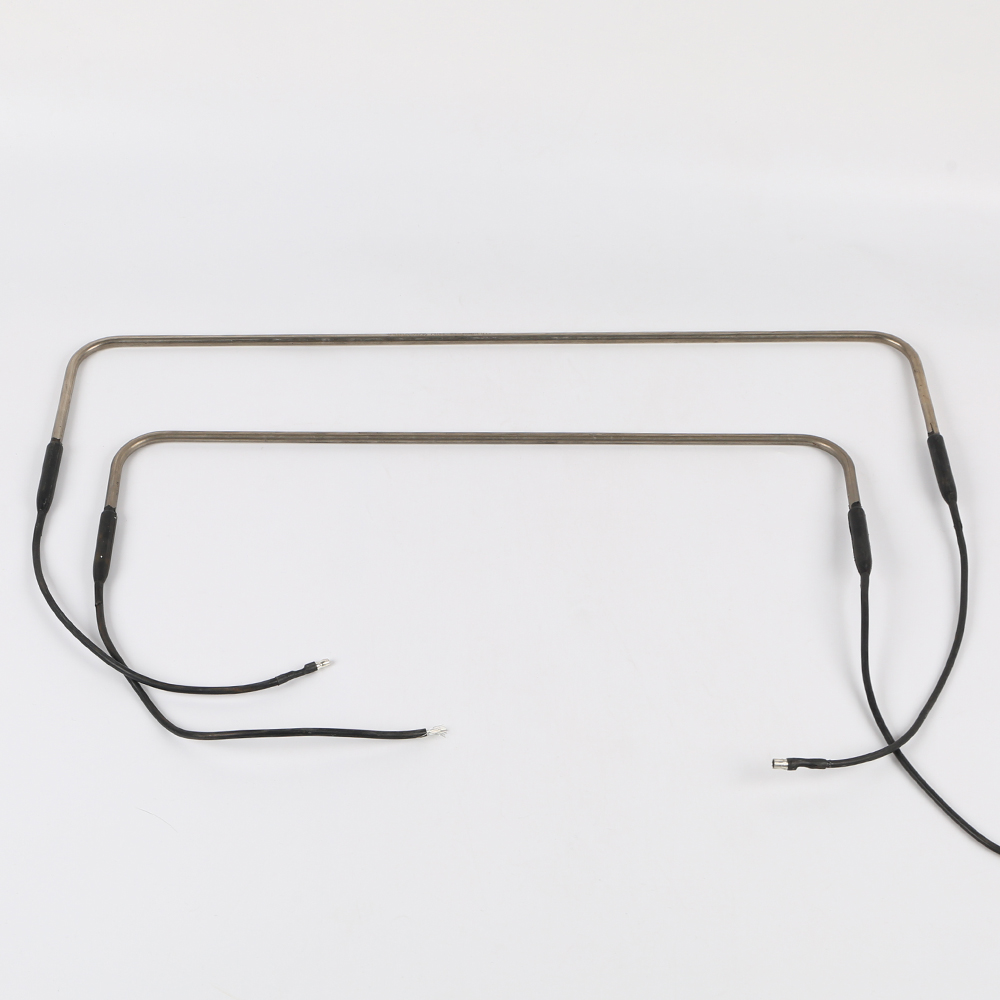

The refrigerator defrost heater is a high-performance replacement part engineered for household and commercial fridges, freezers, and wine coolers, designed to melt frost and ice on evaporators, drain pipes, and condensed water pans.
The refrigerator defrost heater built with a premium Cr20Ni80 nickel-chromium heating core and 304 stainless steel tube-resistant housing, it delivers fast, uniform heating with thermal conversion efficiency ≥95%, effectively solving frost buildup, poor cooling, and water leakage caused by faulty defrost systems.
The refrigerator defrost heater universal fit for 95% of mainstream brands (Samsung/LG/Whirlpool/Frigidaire/Bosch/Haier), defrost heater tube is available in 110V/220V voltage and multiple power/size options. And this refrigerator defrost heater features IP65 waterproof, anti-condensation, and V-0 flame retardant design, with insulation resistance ≥100MΩ for safe use in low-temperature, high-humidity fridge interiors. Easy DIY installation with included mounting clips—no professional tools needed, restores your fridge’s optimal cooling performance in 10 minutes. CE/ROHS certified, service life ≥8000 working hours, equivalent to original factory parts.
Product Paramenters
| Porduct Name | Refrigerator Defrost Heater Element |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,A-A type,U shape,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Refrigerator Defrost Heater Element |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Company | Manufacturer/supplier/factory |
|
The Refrigerator Defrost Heater is used for the air cooler defrosting,picture shape of defrost heating element is A-A type (double straight tube ),tube length custom is following your air-cooler size,our all defrost heater can be customized as required. The tubular defrost heater tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Defrost Heater for Air-cooler Model
Singel Straight Defrost Heater
A-A Type Defrost Heater
U Shaped Defrost Heater
UB Shaped Defrost Heater
B Typed Defrost Heater
BB Typed Defrost Heater
Product Features
1. Refrigeration-Specific Design, Fast Defrost
The refrigerator defrost heater built-in Cr20Ni80 nickel-chromium alloy heating core, thermal conversion efficiency ≥95%, rapid heating to melt frost/ice in minutes, shortens defrost cycle and reduces fridge energy consumption.
2. Universal Fit for Most Brands
Defrost heater element standardized dimensions and wiring design, compatible with household top-freezer, bottom-freezer, side-by-side and French door fridges/freezers, fits major global brands (Samsung/LG/Whirlpool/Frigidaire/Bosch).
3. Corrosion & Low-Temp Resistant
Protective housing made of 304 stainless steel/heat-resistant plastic, anti-corrosion, anti-condensation, stable performance in fridge’s low-temp environment (-40℃ ~ 200℃), no cracking or aging.
4. Safe & Reliable, No Overheating Risk
Mild heating design (no hot spots), built-in thermal protection (optional), insulation resistance ≥100MΩ (DC500V), CE/ROHS certified, no electric leakage or component damage risk.
5. Easy DIY Installation
Compact size, comes with matching mounting clips/wires, direct replacement for original faulty heater, no soldering or professional repair needed—install in 10 mins with basic hand tools.
6. Multiple Sizes for All Defrost Zones
The refrigerator defrost heater available in tube/rod/tape types for evaporator, drain pipe and water pan defrost, multiple voltage (110V/220V) and power options to match different fridge models/sizes.
Product types
Our refrigerator defrost heaters are classified by installation position (the key to selection), with three mainstream types for different defrost zones of fridges/freezers—all with industrial-grade sealed structure for fridge’s high-humidity environment.

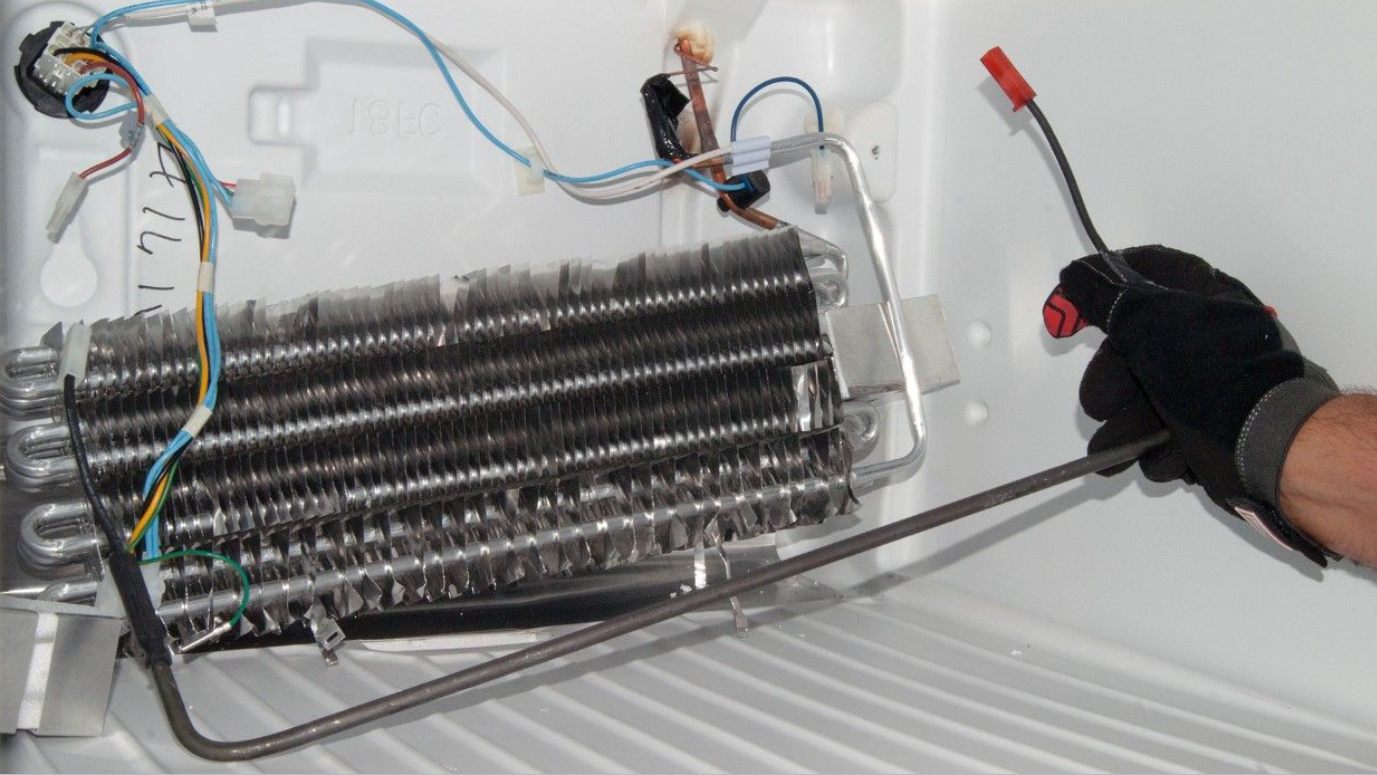

1. Evaporator Defrost Heater (Tube/Rod Type - Most Common)
Core Application: Main defrost for fridge/freezer evaporators (the core cooling part)
Structure: Cr20Ni80 heating core + 304 stainless steel tube + magnesium oxide insulation + waterproof sealed terminals
Key Feature: Rigid structure, the defrost heater is easy to mount on evaporator fins, uniform heating to melt frost on cooling coils
2. Drain Pipe Defrost Heater (Tape/Wire Type)
Core Application: Anti-freeze for fridge drain pipe/water pan, prevent ice blockage and water leakage
Structure: Ni-Cr heating wire + glass fiber/silicone insulation + self-adhesive backing
Key Feature: Flexible, the defrost heater element can be wrapped around drain pipes, small size, fits narrow fridge spaces
3. Mini Defrost Heater (Chip Type)
Core Application: Small fridges, bar fridges, wine coolers (compact evaporators)
Structure: Thin film heating core + heat-resistant ceramic base + insulated leads
Key Feature: Ultra-compact, low power, perfect for small refrigeration equipment with limited space
Product Application
1. cold storage cooling fan : tubular defrost heater used for unit cooler evaporator defrost, prevent frost accumulation affect refrigeration efficiency ;
2. cold chain equipment : U shape defrost heater Maintain the constant temperature environment of refrigerated truck and display cabinet to avoid frost resulting in temperature control failure ;
3. industrial refrigeration system : defrost tube heater is integrated in the bottom of the water pan or condenser to ensure the continuous operation of the equipment
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

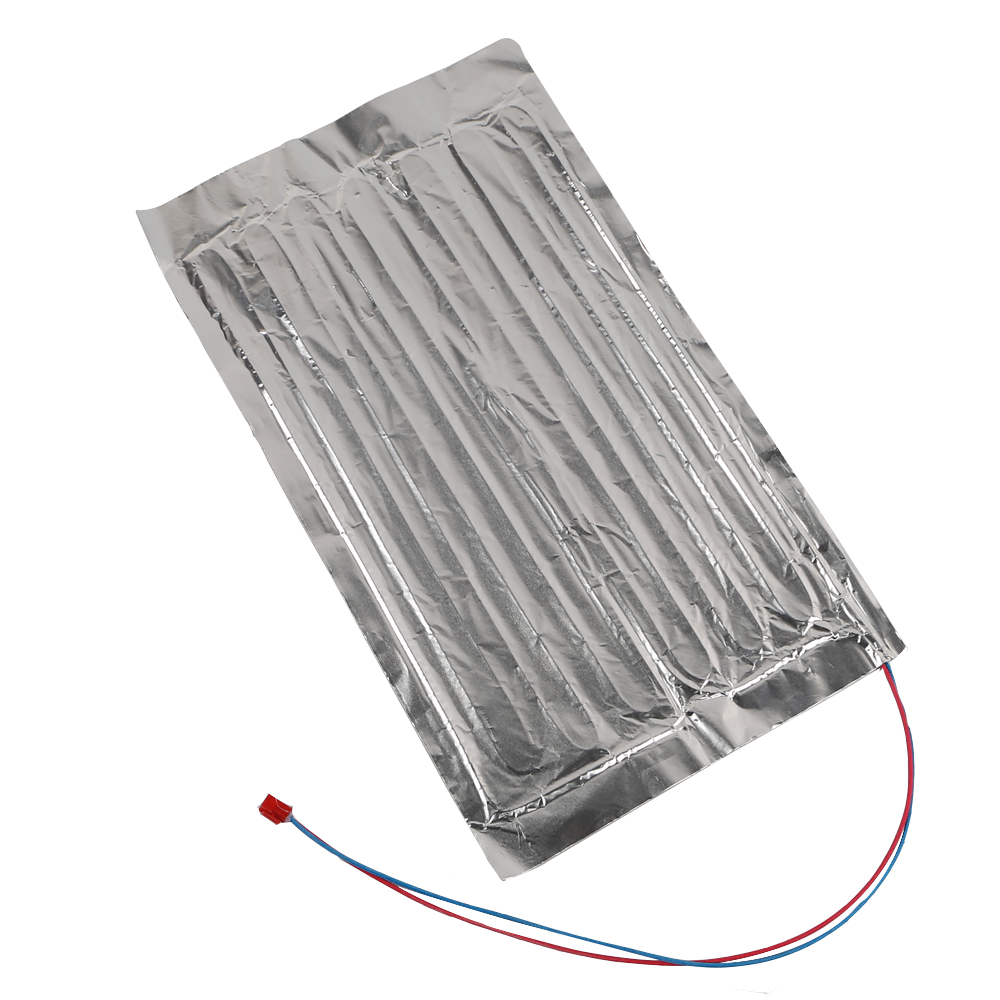

Aluminum Foil Heater
Immersion Heater
Oven Heating Element

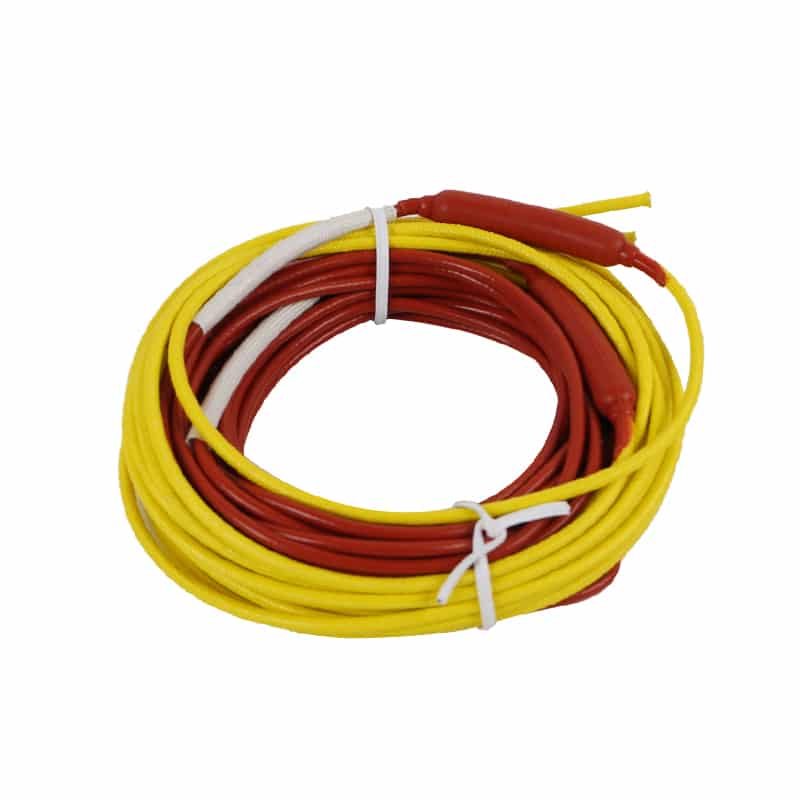

Defrost Wire Heater
Drain Line Heater
Crankcase Heater

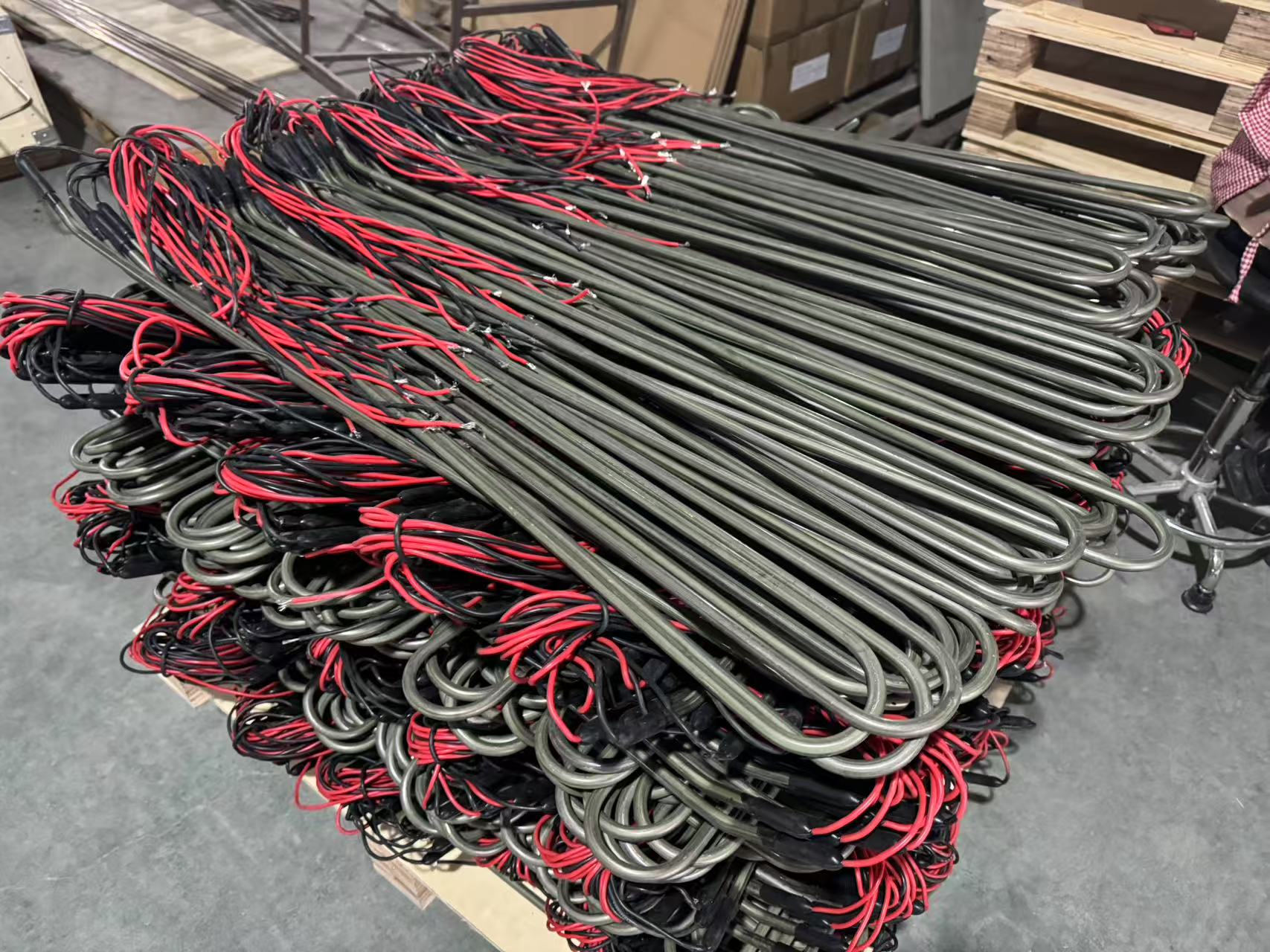

Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
