Product Configuration
The refrigeration heatcraft drain pan defrost heater is one of the indispensable key components in modern refrigeration equipment and air conditioning systems, and the drain pan defrost heater is widely used in cold storage, refrigerators, unit cooler,air conditioners and other scenarios that require temperature control. Its core function lies in generating heat to melt the frost formed on the surface of the condenser, thereby ensuring the continuous and efficient operation of the refrigeration equipment.
In practical applications, the surface of the condenser in refrigeration equipment is prone to frosting due to low-temperature environments. This frost layer will impede the heat exchange efficiency, leading to a decline in equipment performance or even complete failure. To solve this problem, the refrigeration drain pan defrost heater emerged. It usually operates by electric heating: when current passes through the resistance element inside the heating tube, the resistance generates heat, causing the surface temperature of the heating tube to rise rapidly. Subsequently, this heat is transferred to the surface of the condenser through conduction, melting the frost adhering to it and restoring the normal operation of the equipment.
Product Paramenters
| Porduct Name | Refrigeartion Defrost Heatcraft Drain Pan Heater tube for Unit Cooler |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,A-A type,U shape,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Defrost heater for unit cooler |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Company | Manufacturer/supplier/factory |
|
The refrigeration drain pan defrost heater is used for the air cooler defrosting,the defrost heater element shape have A-A type (double straight tube),U shaped,W shaped,L shaped,or other custom shapes.Tube length custom is following your air-cooler size,our all defrost heater can be customized as required. The tubular defrost heater tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Defrost Heater for Air-cooler Model
Singel Straight Defrost Heater
A-A Type Defrost Heater

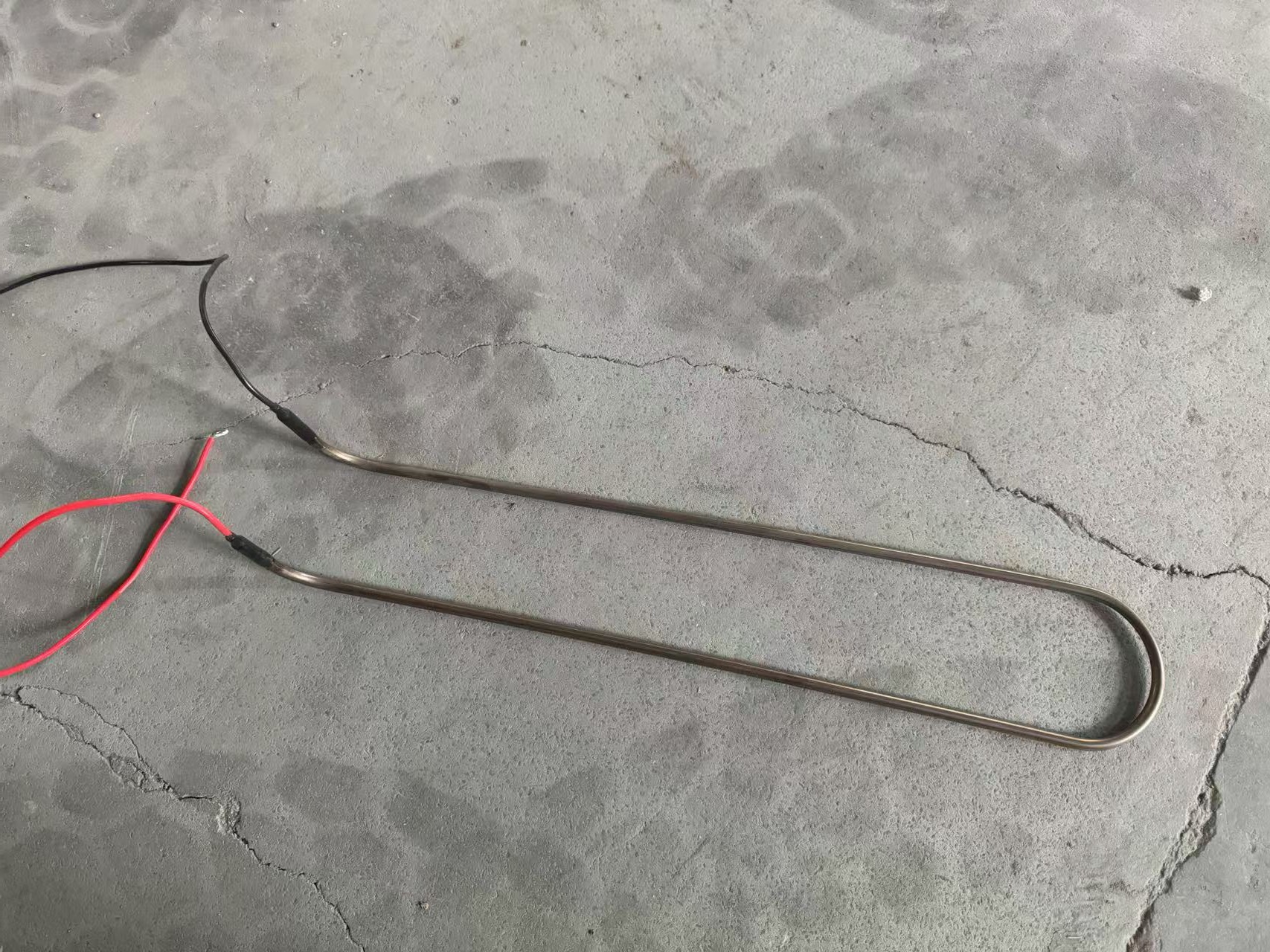

U Shaped Defrost Heater
UB Shaped Defrost Heater
B Typed Defrost Heater
BB Typed Defrost Heater
Product Customized Design
The design of the refrigeration drain pan defrost heater is highly flexible and can be customized according to the specific needs of customers. For instance, different application scenarios may have varying requirements for heating power, size or installation methods. We can meet various special requirements by adjusting parameters such as the length, material and circuit design of the defrost heating tubes. This customization capability enables the refrigeration defrosting heater to adapt to a wide range of usage scenarios, from small household refrigerators to large industrial cold storage facilities.
Product Features
1. Automatic control of heating time and temperature to solve the frost problem;
2. Generate heat through resistance heating wire, safe and reliable;
3. Reduce the workload of human maintenance and improve work efficiency;
4. For different temperature environments, you can choose different power refrigeration drain pan defrost heater.
Product Application
1. cold storage cooling fan : drain pan defrost heater used for unit cooler evaporator defrost, prevent frost accumulation affect refrigeration efficiency ;
2. cold chain equipment : drain pan defrost heater maintain the constant temperature environment of refrigerated truck and display cabinet to avoid frost resulting in temperature control failure ;
3. industrial refrigeration system (unit cooler) : defrost tube heater is integrated in the bottom of the water pan or condenser to ensure the continuous operation of the equipment
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
