Product Configuration
The IP67 rank waterproof defrost heater is a specially designed device whose core function is to generate heat through heating resistance wires, thereby quickly melting the frost layer formed on the surface of cold storage or refrigeration equipment. This refrigeration defrost heater is usually powered by electricity and can provide efficient defrosting solutions for various refrigeration systems.
In cold storage rooms or refrigeration equipment, frost formation is a common issue. The accumulation of frost can significantly reduce the operational efficiency of the equipment, increase energy consumption, and may even lead to a decline in performance or failure. The IP67 rank waterproof defrost heater for unit coolers is specifically designed to address this problem. It not only melts the frost layer quickly but also automatically adjusts the heating time and temperature through an integrated control system, ensuring that the equipment remains in the best working condition. Compared with traditional manual defrosting methods, the waterproof defrost heater for unit coolers greatly reduces the need for manual intervention, lowers maintenance costs, and decreases labor intensity.
Product Paramenters
| Porduct Name | IP67 Rank WaterProof Defrost Heater With Silicon Rubber Seal Head |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,A-A type,U shaped,W shape,etc. |
| Resistant voltage in water | 2,000V/min (normal water temperature) |
| Insulated resistance in water | 750MOhm |
| Use | Defrost Heater for unit cooler |
| Tube length | 300-7500mm |
| Lead wire length | 700-1000mm (custom) |
| Approvals | CE/ CQC |
| Company | Manufacturer/supplier/factory |
|

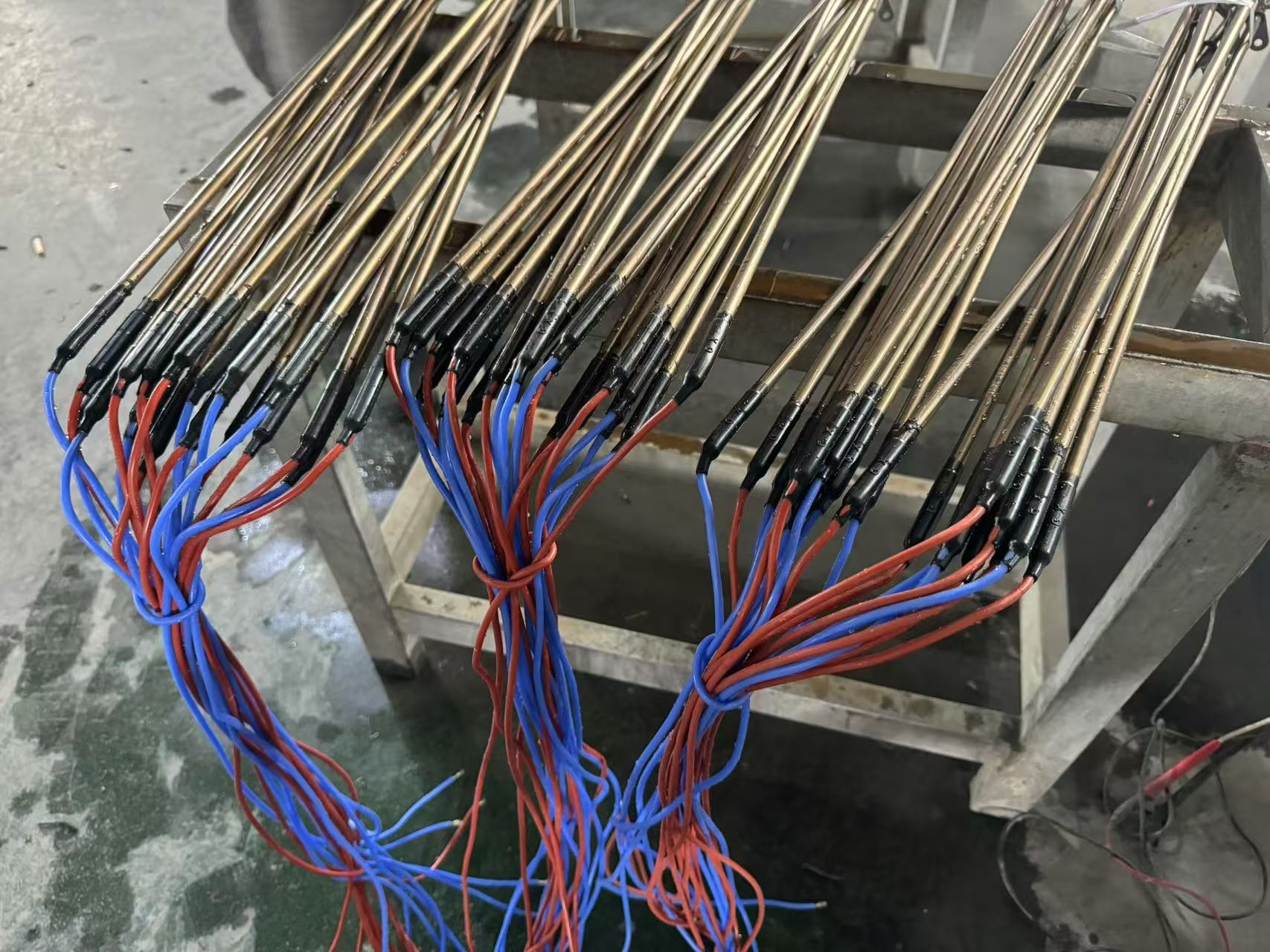

The IP67 rank waterproof defrost heater for unit cooler is used for the air cooler defrosting,tube length custom is following your unit-cooler size,our all defrost heater can be customized as required. The waterproof defrost heater tube diameter can be made 6.5mm or 8.0mm,the tube with lead wire part will be sealed by rubber head.And the shape can also be made U shape and L shape.Power of defrost heating tube will be produced 300-400W per meter. |
|
Defrost Heater for Air-cooler Model
Singel Straight Defrost Heater
A-A Type Defrost Heater

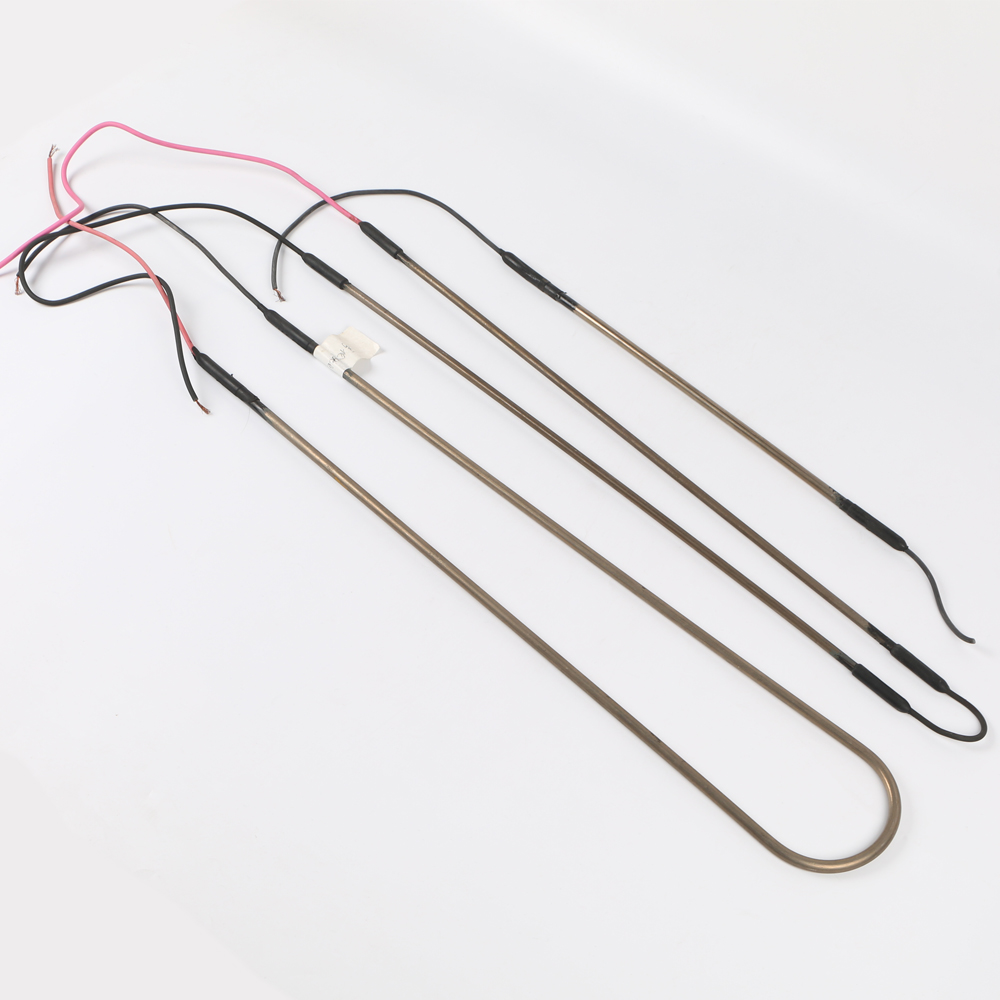

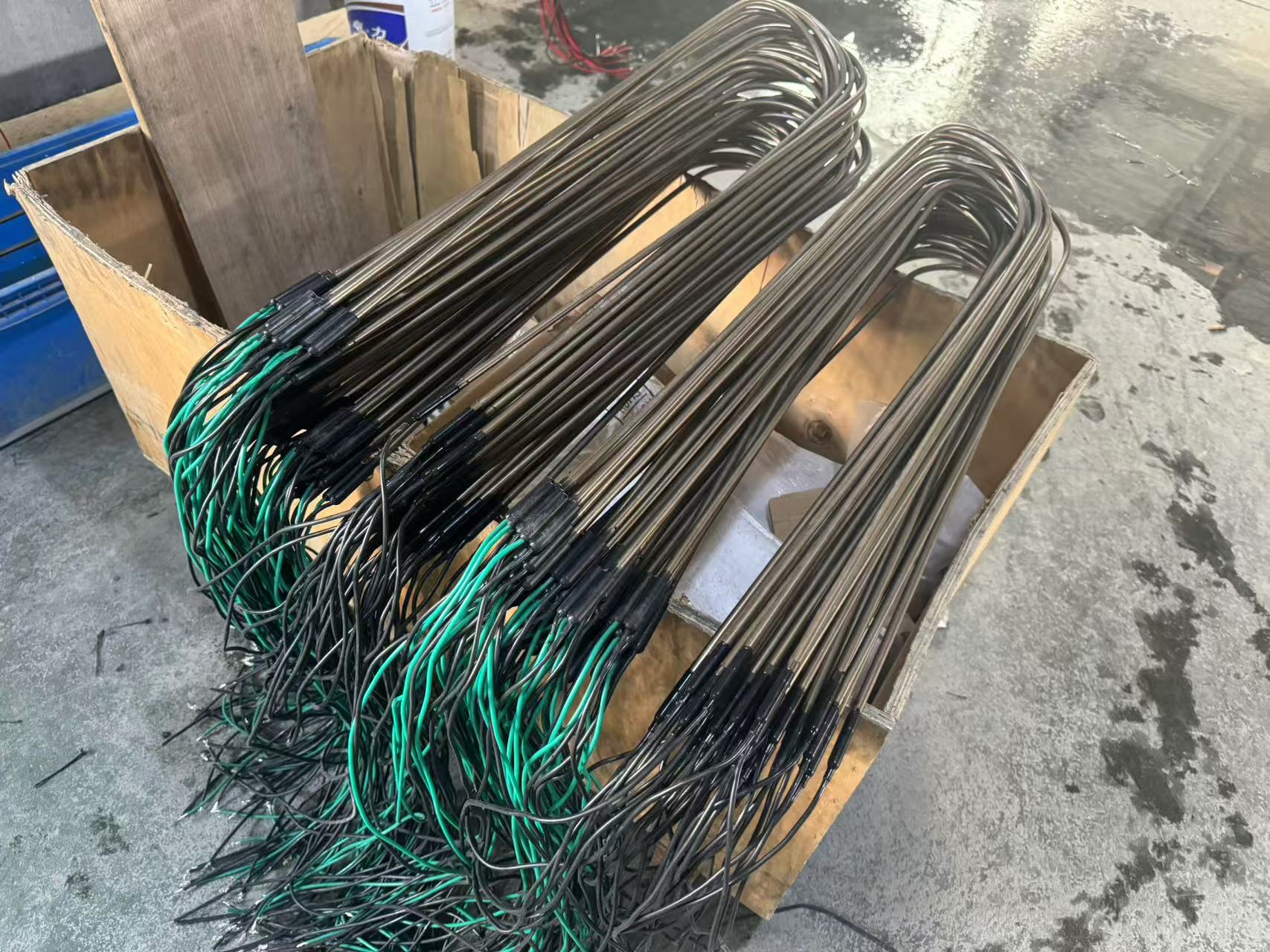

U Shaped Defrost Heater
UB Shaped Defrost Heater
B Typed Defrost Heater
BB Typed Defrost Heater
Product Features
Unit cooler defrost heaters are widely used in refrigerators, freezers, cold storage rooms and large cold storage facilities. To meet the requirements of different equipment, the shape of the defrost tube heater can be customized according to specific uses. Common shapes of defrost heater include single straight tube type, A-A type (double straight tubes), U shaped and L type, etc. These different shape designs of refrigeration defrosting heater can better fit the structure of the air cooler, ensuring uniform and efficient heating effects.
1. Tube material: SUS304,SUS316,SUS310S,etc.
2. Tube diameter: 6.5mm,8.0mm,10.7mm,etc.
3. Voltage: 110-380V
4. Power: 300-400W/M,or custom
5. Shape: the shape of defrost heater can be customized
6. Lead wire length: 600mm,or customized

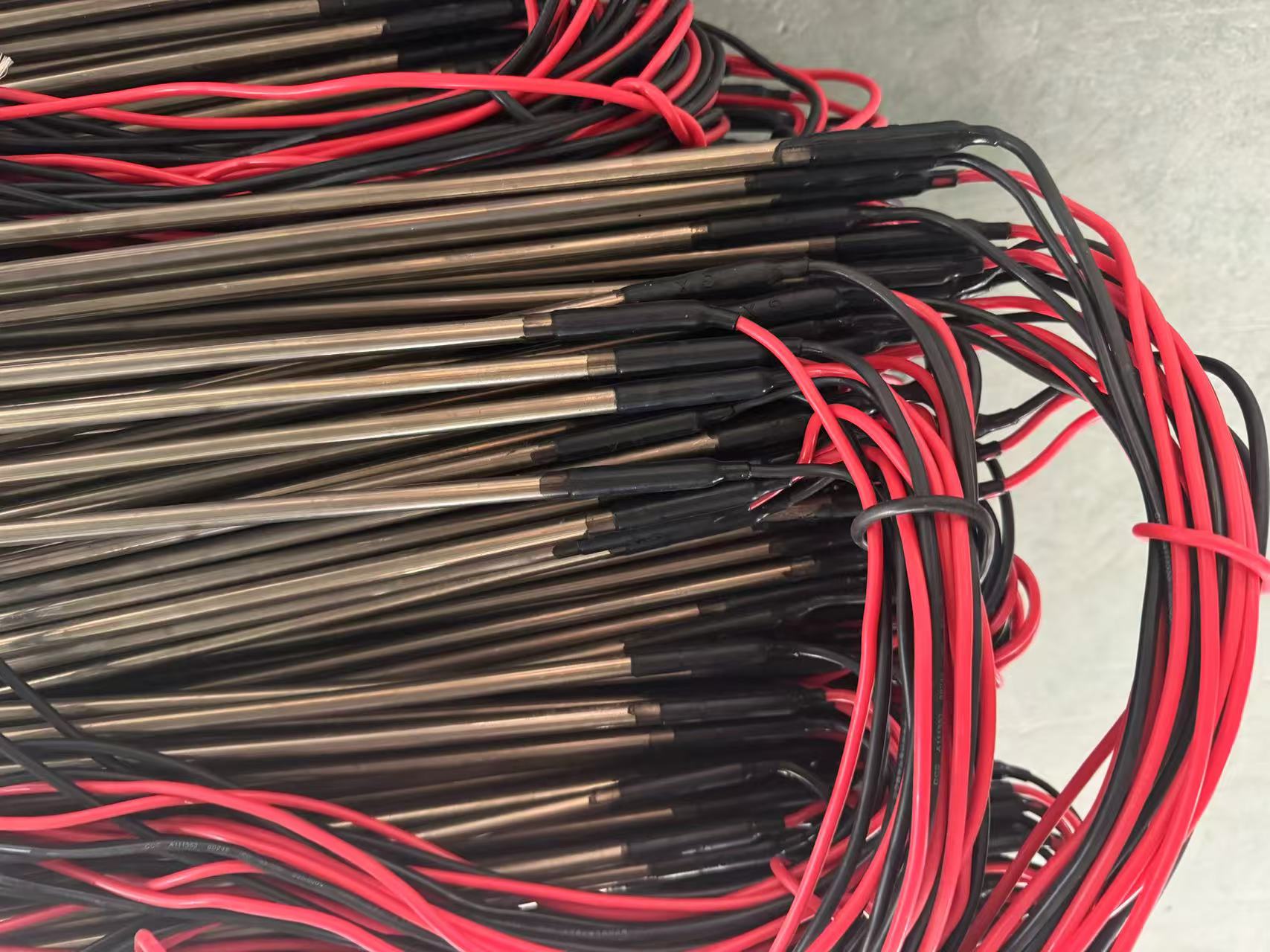

7. Seal way: silicone rubber head or shrinkable tube sealed
The size of the IP67 rank waterproof defrost heater tube can also be adjusted according to the specific needs of the customer. For instance, the length of the defrost heater tube can be customized based on the actual size of the unit cooler to achieve the best installation fit. Meanwhile, there are usually two standard options for the diameter of the defrosting heater tube: 6.5mm and 8.0mm. Users can choose the appropriate specification based on the space limitations and power requirements of the equipment. To ensure safety, the part of the heating tube with leads will be sealed with a rubber cap to prevent water from entering and extend its service life.
Product Application
IP67 waterproof defrost heaters have a wide range of applications; The defrost heater are typically used in freezers, display cabinets, cold storage, refrigeration equipment, and other devices that require refrigeration. Defrosting heater can extend the equipment's service life and effectively prevent frost on the cold storage or equipment's surface, particularly in an area with high humidity.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery

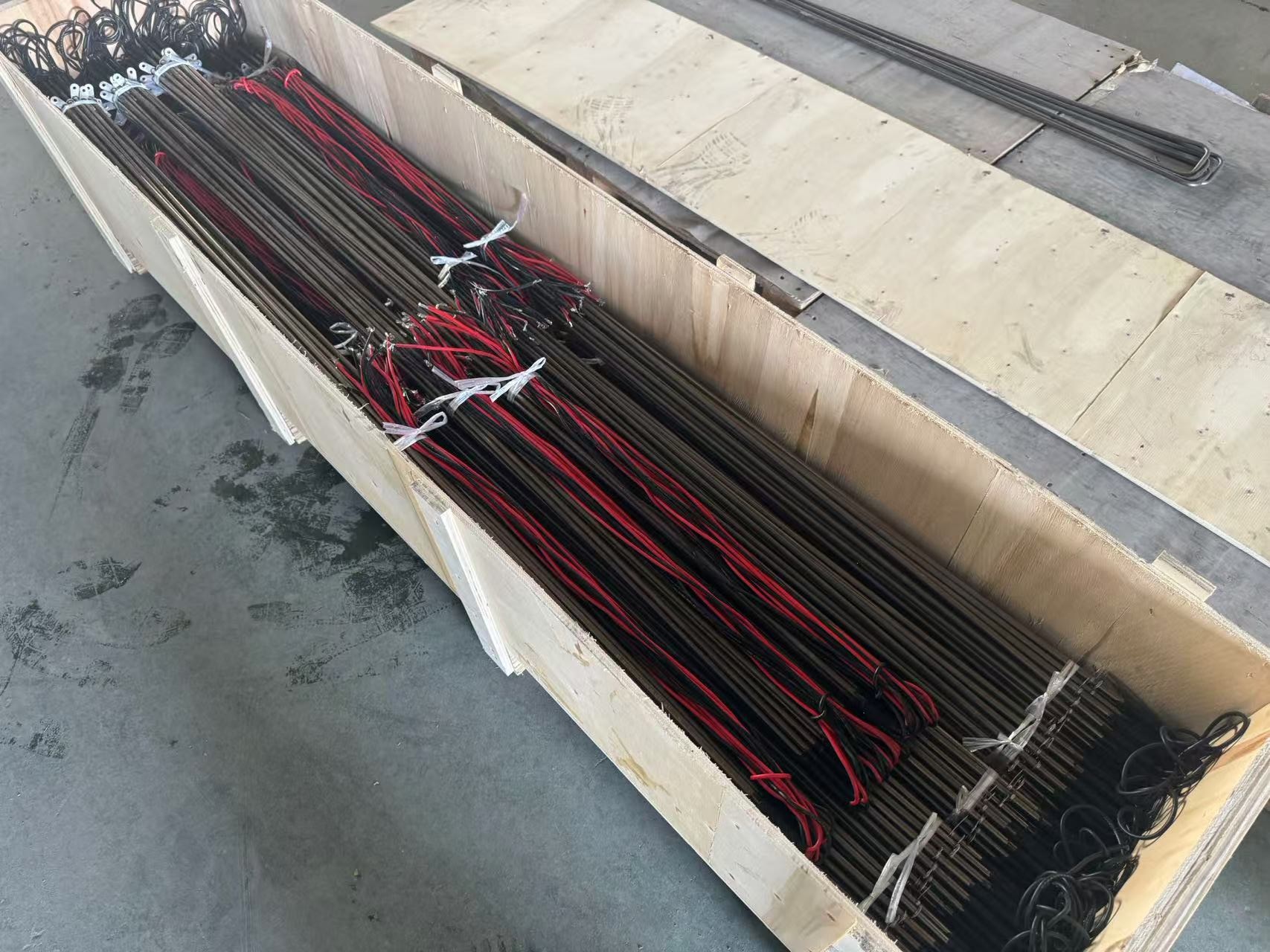

Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

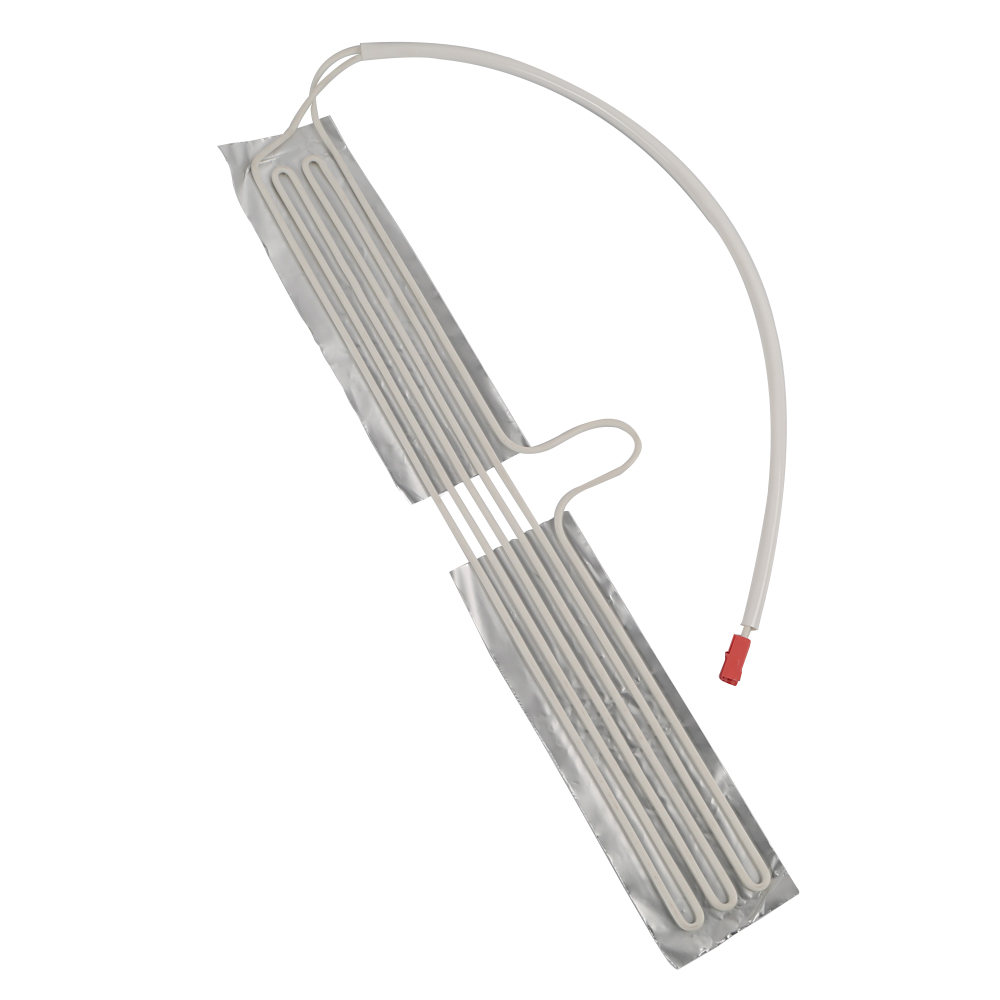

Aluminum Foil Heater

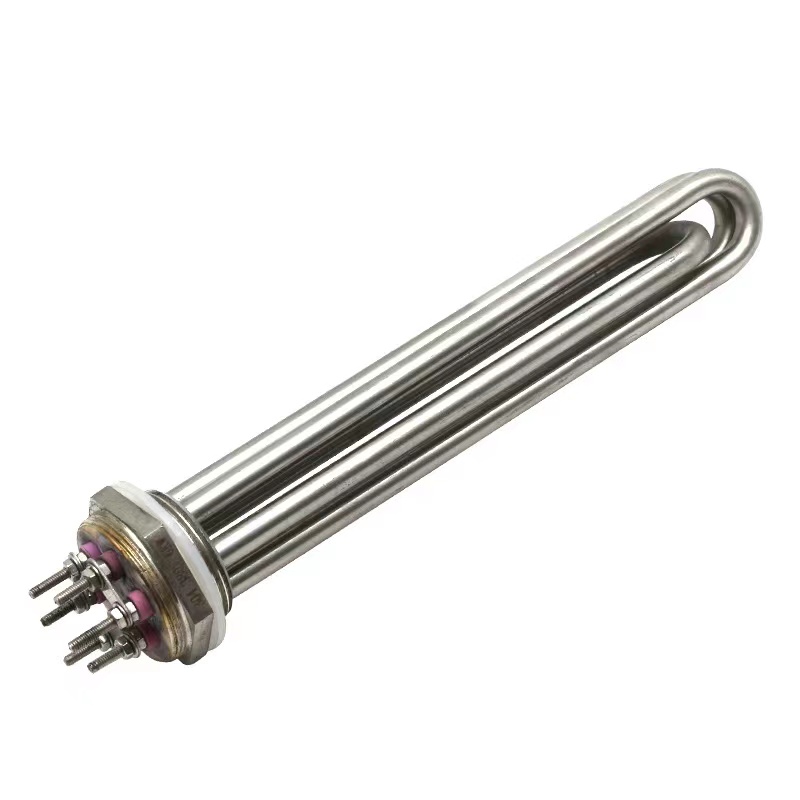

Immersion Heater

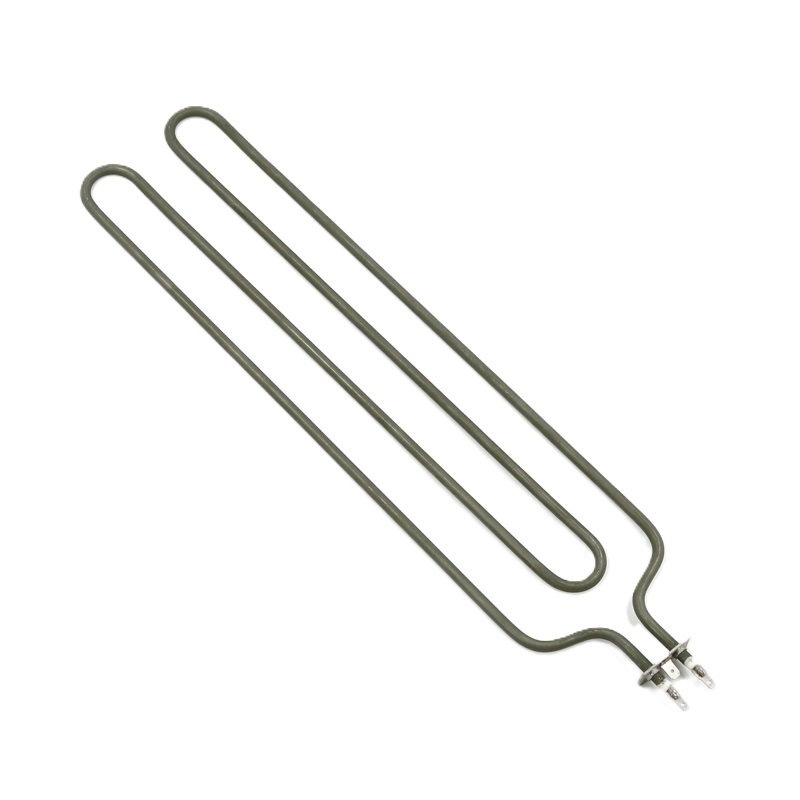

Oven Heating Element
Defrost Wire Heater
Drain Line Heater
Crankcase Heater

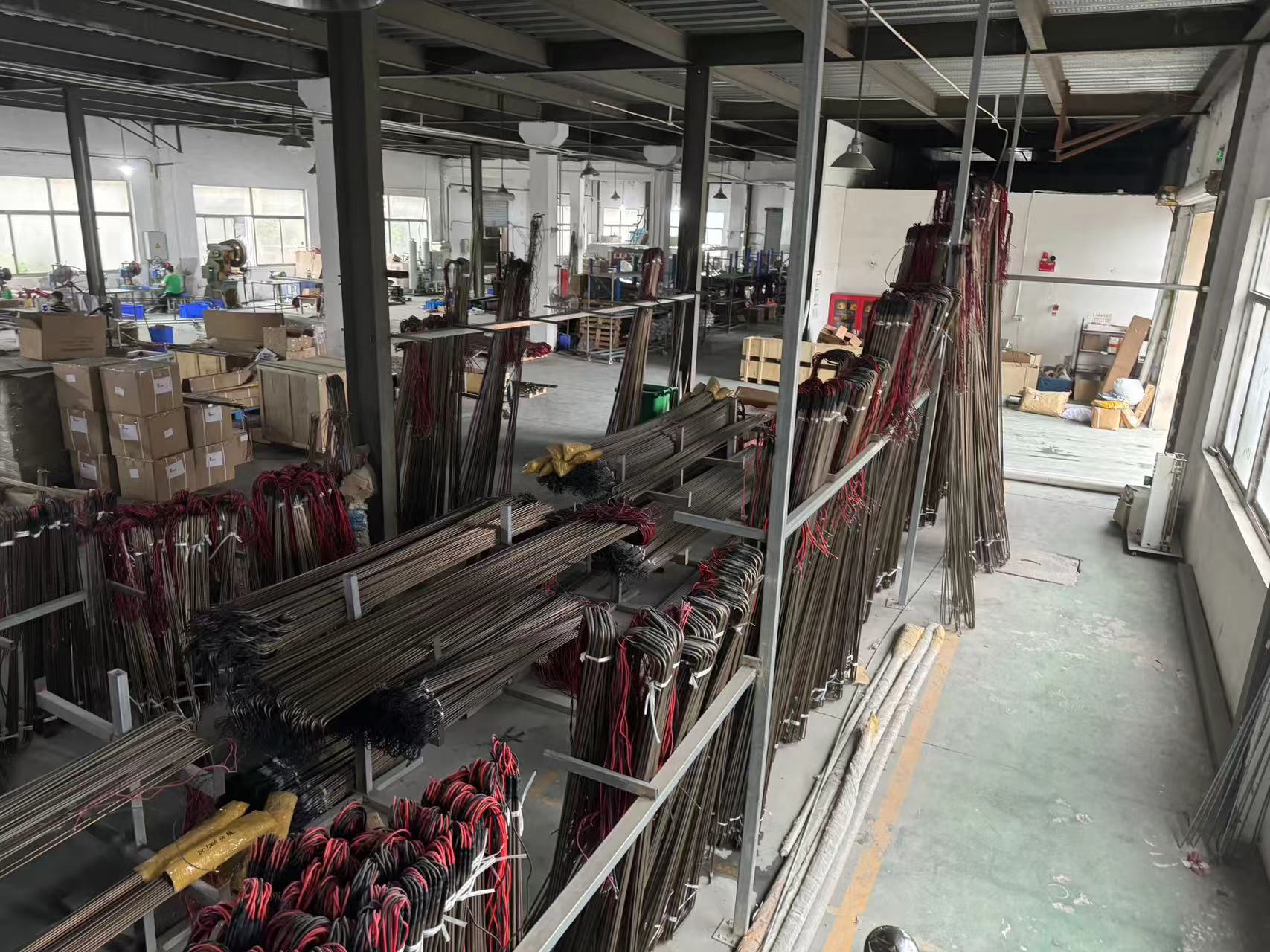

Factory Picture
