Product Configuration
The core material of silicone rubber heater mat is high-temperature resistant silicone rubber, which features excellent flexibility and weather resistance. Embedded inside are nickel-chromium alloy heating wires or metal heating film circuits. Both of these heating elements offer highly efficient and stable heating performance, capable of transferring heat to the target area in a short time. To further enhance the battery heater silicone rubber heater's safety and durability, the outer layer of the silicone rubber heating pad is wrapped with a layer of glass fiber cloth. This not only improves insulation performance but also significantly increases mechanical strength, making it suitable for complex industrial environments.
One of the major features of the silicone rubber heater mat for battery is its flexibility, allowing it to be easily bent to fit various shaped surfaces. Additionally, silicone rubber heater is very thin and light, with a thickness of only 1.5mm and a weight of 1.3 to 1.9 kg per square meter, making it convenient to carry and install. Due to silicone rubber heater for battery heating ultra-thin design and uniform heating characteristics, the silicone rubber heater can quickly and efficiently provide the required temperature support for oil products, avoiding operational difficulties caused by insufficient temperature.
In addition, silicone rubber pad heater for battery heating can be custom-made into various shapes according to actual needs, including complex three-dimensional structures. Different opening positions can also be reserved as per specific application scenarios for ease of installation and maintenance. This flexibility makes it an indispensable heating solution in many industries, especially in scenarios where precise temperature control is required, such as in petroleum processing, chemical production, and mechanical equipment lubrication.
Product Paramenters
| Porduct Name | High Quality Battery Heating Silicone Rubber Heater Mat |
| Material | Silicone rubber |
| Thickness | 1.5mm |
| Voltage | 12V-230V |
| Power | customized |
| Shape | Round,square,rectangle,etc. |
| 3M adhesive | can be added |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Silicone Rubber Heating Pad |
| Termianl | Customized |
| Package | carton |
| Approvals | CE |
| The battery heating silicone rubber heater contains silicone rubber heating pad,crankcase heater,drain pipe heater,silicone heating belt,home brew heater,silicone heating wire.The specification of silicone rubber heating pad can be customized as client's requirements. | |
Product Features
In conclusion, the silicone rubber heater mat, with its outstanding performance, flexible design and reliable safety guarantee, has played a significant role in ensuring oil quality and improving work efficiency. Whether the silicone rubber heater is outdoor operations in cold regions or indoor industrial production, this product can meet diverse heating needs and demonstrate strong practical value.
Large heating surface and uniform heating
Due to silucone rubber heater large area coverage, silicone rubber heater pads ensure uniform heat distribution and avoid local overheating or cold spots.
Weather resistance and corrosion resistance
Silicone rubber material itself has excellent weather resistance and can work stably in extreme temperature, humidity and chemical corrosion environment for a long time.
Environmental Protection and Safety
The silicone rubber heater pad meets environmental standards and has flame retardant properties, which greatly reduces the risk of fire.
Long service life and high insulation strength
Silicone rubber heater pads are made of high-quality materials, so they have a long service life and excellent electrical insulation properties, ensuring safety during use.
Product Application
Silicone rubber heater pads are widely used in all kinds of electric heating devices, such as industrial equipment, medical instruments, household appliances and so on. Silicone rubber mat heaters are specially designed electric heating devices, widely used in industrial fields to heat oil drums, storage tanks or chemical containers. Their main function is to prevent various oils (such as lubricating oil, hydraulic oil, asphalt and chemical raw materials, etc.) from solidifying or increasing viscosity in low-temperature environments, thus ensuring that these oils maintain good fluidity for convenient transportation and use.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater

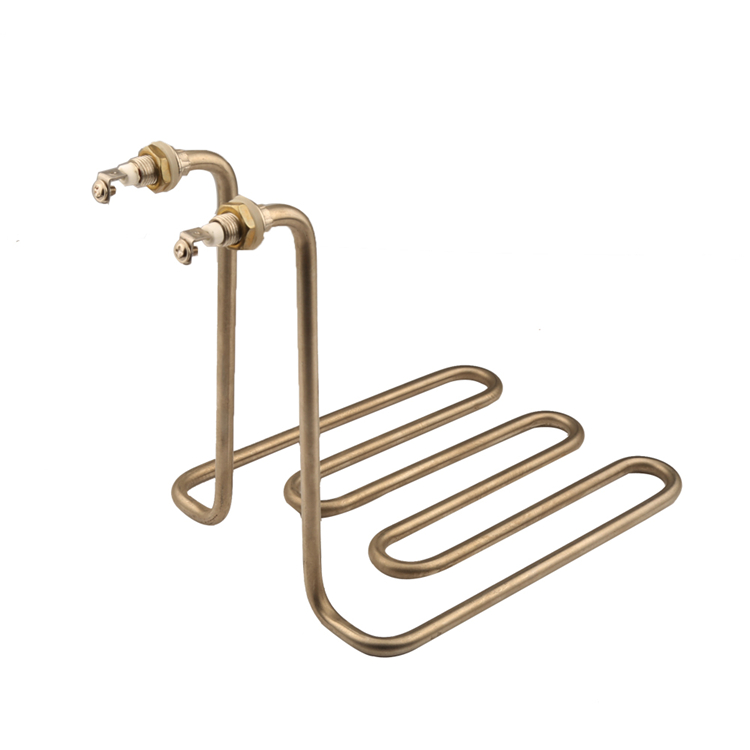

Fryer Heating Element
Defrost Heater Element
Crankcase Heater
Defrost Wire Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
