Product Configuration

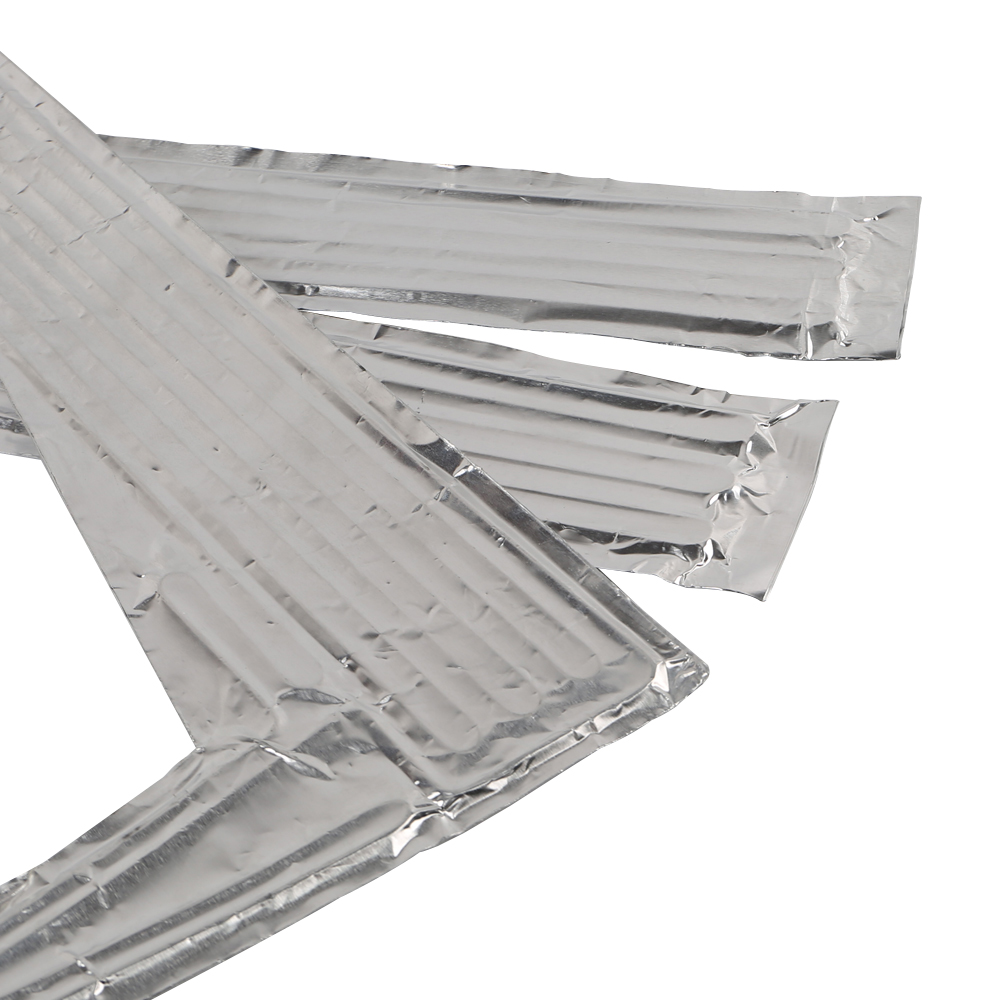

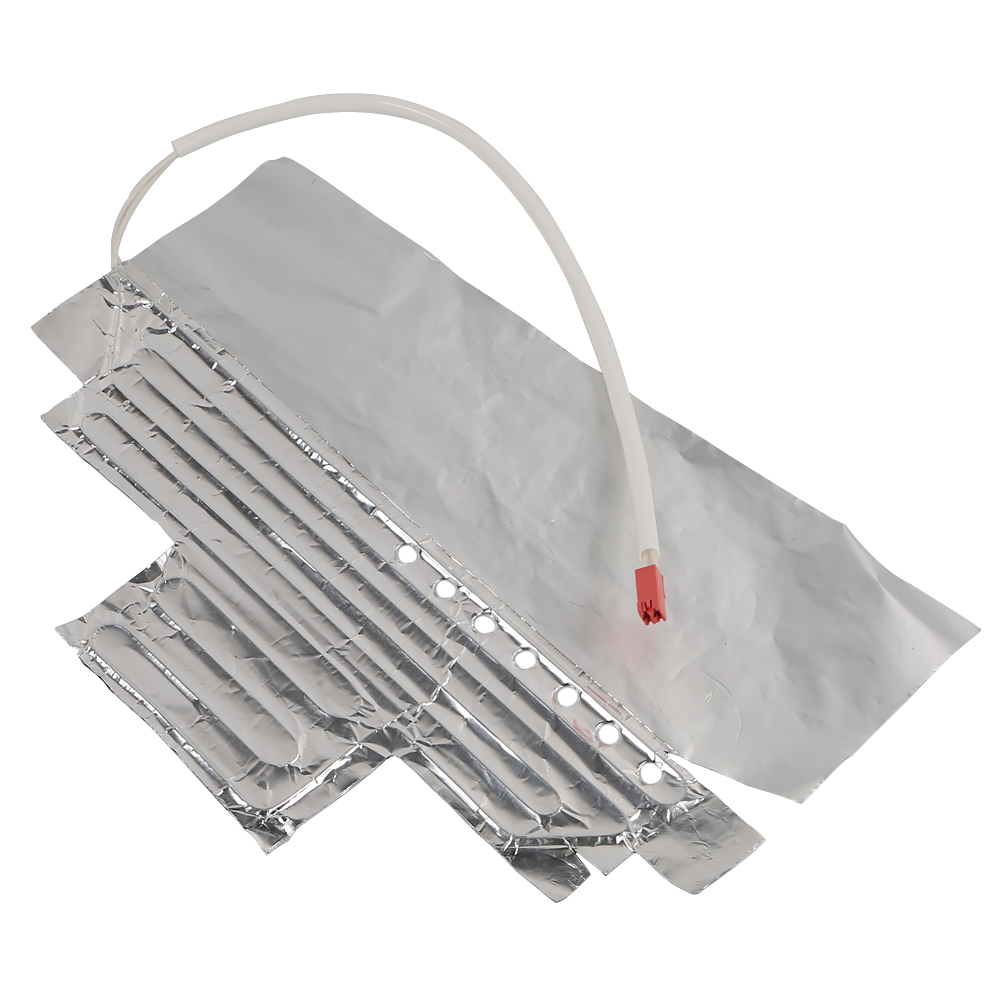

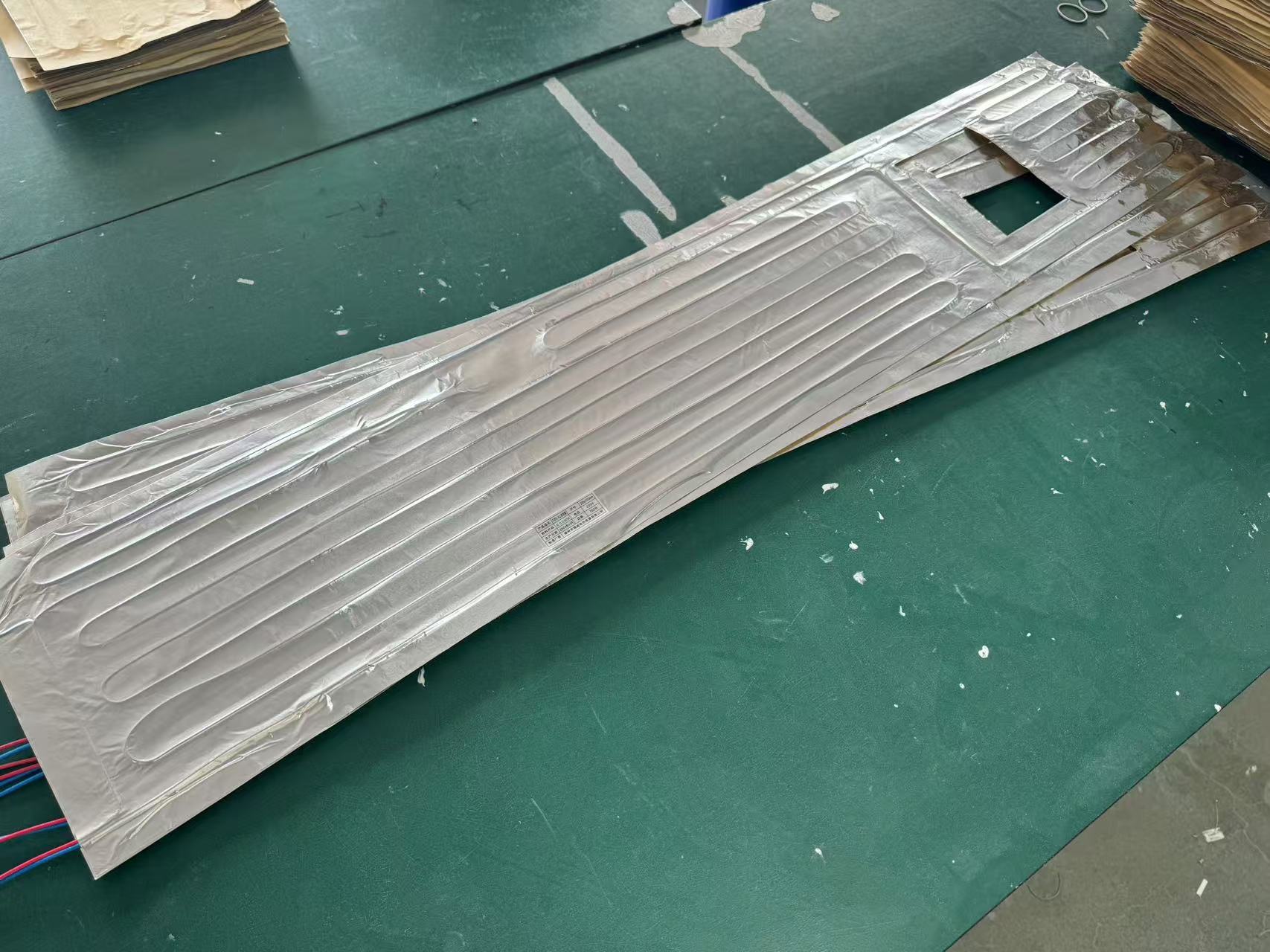

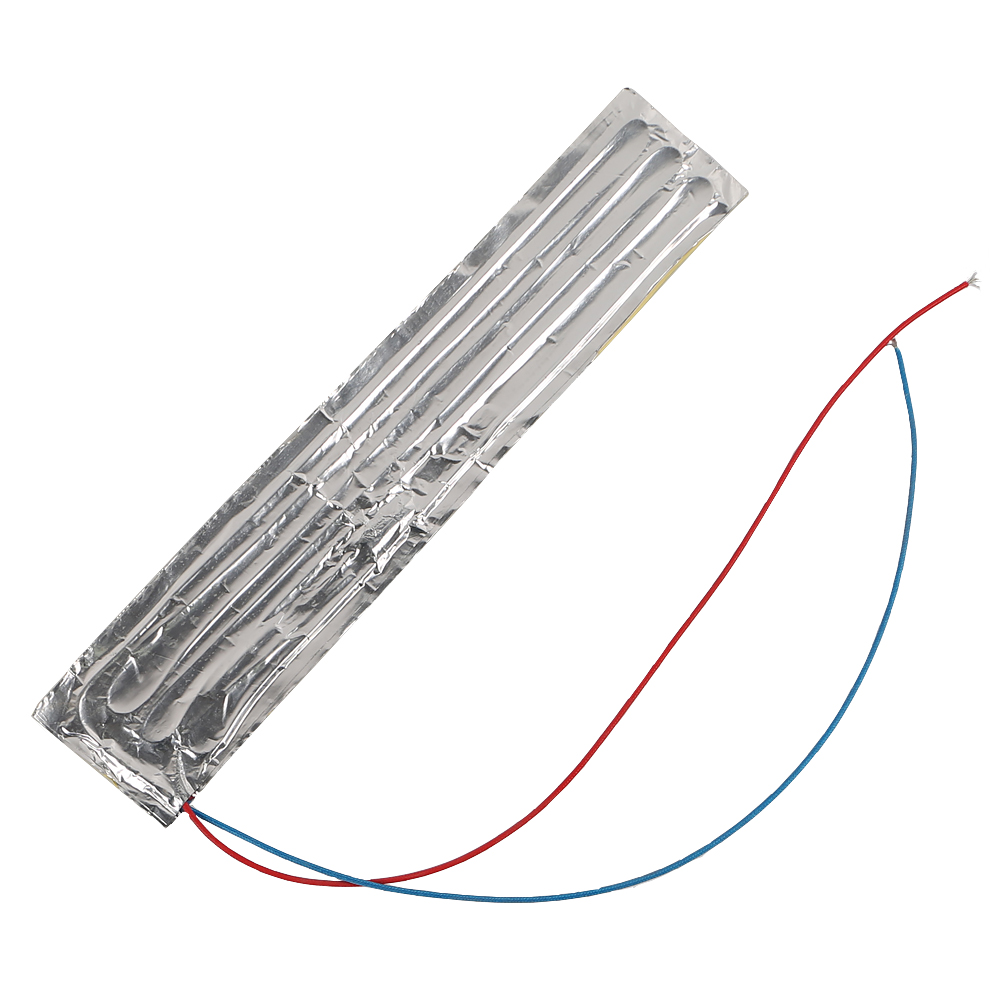

The aluminum foil heater is a planar electric heating element that encapsulates an electric heating wire (such as a silicone rubber heating wire or PVC heating wire) between layers of aluminum foil. The aluminum foil heater plate is widely used in scenarios where uniform and thin heating is required. Its working principle is as follows: Current passes through the heating wire to generate heat, and this heat is rapidly and evenly distributed to the entire surface through the highly conductive aluminum foil.
Fixing of electric heating elements: The electric heating elements must be fixed on the aluminum foil according to the designed circuit (usually in a serpentine arrangement). This is mainly done through two methods:
1. Hot melt fixation: Using specialized equipment, the electric heating wire is directly heated to a high temperature and fused onto the single-layer aluminum foil, or it is bonded onto the aluminum foil using a bonding agent.
2. Interlayer bonding: Place the electric heating elements according to the design diagram on the bottom layer of aluminum foil, apply the high-temperature-resistant and highly adhesive hot melt adhesive specially developed for aluminum foil heaters, and then cover the upper layer of aluminum foil. The structure is then solidified through heat pressing.
Product Paramenters
| Porduct Name | High Quality Aluminum Foil Heaters for Factory Custom |
| Material | heating wire +aluminum foil tape |
| Voltage | 12-230V |
| Power | Customized |
| Shape | Customized |
| Lead wire length | Customized |
| Terminal model | Customized |
| Resistant voltage | 2,000V/min |
| MOQ | 120PCS |
| Use | Aluminum foil heater |
| Package | 100pcs one carton |
|
The size and shape and power/voltage of Aluminum Foil Heater For Delivery Bag can be customized as client’s requirement,we can be made following the heater pictures and some special shape need the drawing or samples. |
|
Product Function
The core function of the aluminum foil heater plate is to efficiently and uniformly transfer heat. The aluminum foil heater's specific functions can be classified into three categories:
Heating and insulation
This is the primary application, such as keeping food and beverages warm, protecting pipes and equipment from freezing, or providing local heating for small spaces.
Auxiliary heating
In industrial production, the aluminum foil heater pad can serve as an auxiliary heat source for equipment to ensure stable production environment temperature and improve equipment operation efficiency.
Temperature control and regulation
When used with a temperature controller, the aluminum foil heater can precisely control the temperature to meet the constant temperature requirements in different scenarios.
Product Applications
The aluminum foil heater, with its advantages of flexibility, lightness, and uniform heating, has a wide range of application scenarios. It can be mainly divided into two major fields:
Civilian field
*** Food and catering: Takeout insulation boxes, insulation cup pads, coffee machine insulation layers, barbecue stove heating plates.
*** Home life: Floor heating modules, bathroom mirror anti-fog films, pet bed insulation pads, small heaters.
*** Automotive products: Car seat heating pads, rearview mirror defrosting films, fuel tank anti-freezing heaters.
Industrial field
*** Equipment insulation: Anti-freezing insulation for chemical pipelines and valves, constant temperature protection for instruments and meters.
*** Production assistance: Preheating of plastic molding molds, drying heating for printing equipment, temperature control in the production process of lithium batteries.
*** Agriculture and breeding: Constant temperature heating for seedling boxes and incubators, local heating for livestock farms.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Defrost Heater Element
Oven Heating Element
Air Heating Tube
Pipe Heating Cable
Silicone Heating Pad

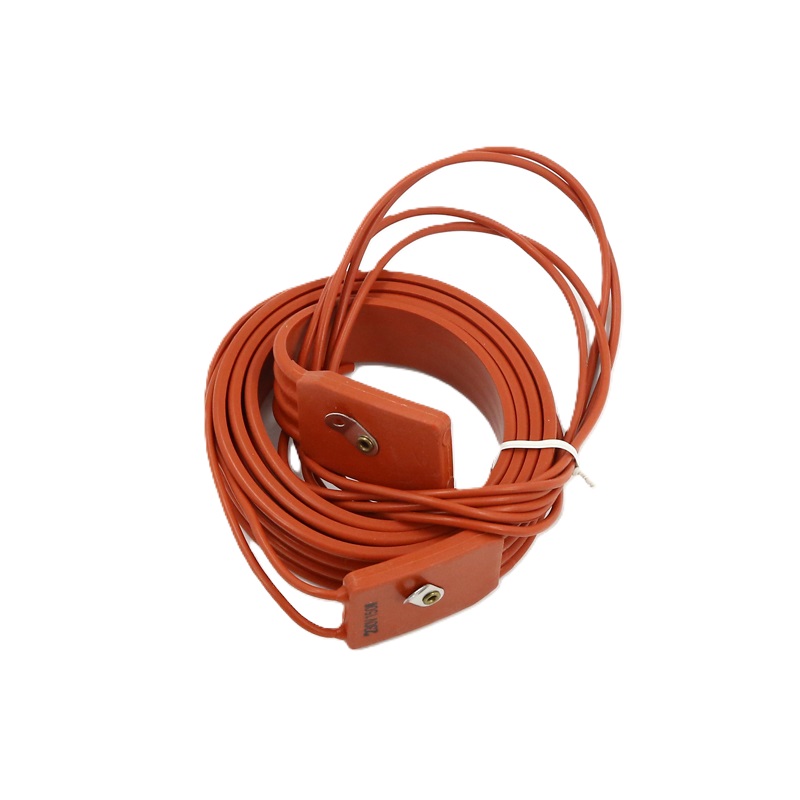

Crankcase Heater
