Product Configuration
This hexagonal flange water immersion heater is a core spare part for all types of electric water heaters (household/commercial/storage/instant). Adopting standard hexagonal flange connection and food-grade 304 stainless steel tube body, it perfectly fits the inner liner of water heaters, realizing fast, efficient, and safe water heating.
The immersion flange heating element is designed for long-term use in water environment, with excellent corrosion resistance, scale resistance and leak-proof performance, and is the first choice for water heater replacement and new machine matching. It complies with international electrical and food safety standards, and is sold to global markets such as Europe, America, Southeast Asia and the Middle East.
Product Paramenters
| Porduct Name | Durable High Quality Hex Flange Stainless Steel Immersion Heating Element for Water Heater |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Immersion Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Terminal type | Customized |
|
The flange immersion heating element material we have stainless steel 201 and stainless steel 304,the flange size have DN40 and DN50,power and tube length can be custoized as requirements. |
|
Core Structure & Working Principle
Core Structure
1. Hexagonal Flange: Carbon steel/stainless steel integrated forming, standard size, with high-temperature resistant silicone rubber sealing gasket, leak-proof and firm.
2. Heating Tube Body: 304 stainless steel seamless tube, food-grade, no heavy metal precipitation, corrosion and scale resistant.
3. Heating Element: Ni-Cr alloy (Cr20Ni80) heating wire, high power, fast heating, oxidation resistant.
4. Insulation Medium: High-density crystalline magnesium oxide powder, good thermal conductivity, high insulation grade, anti-dry burning.
5. Lead Wire & Terminal: High-temperature resistant silicone wire, copper core terminal, anti-oxidation, firm wiring, anti-leakage.
Working Principle
After the flange immersion heating element is installed on the water heater liner through the hexagonal flange (the tube body is completely immersed in water), the power is turned on, and the Ni-Cr alloy heating wire generates heat rapidly. The heat is transferred to the water through the stainless steel tube body by heat conduction, realizing the rapid heating of the water body. The whole process has no open fire, high heat conversion efficiency, and the insulation structure ensures electrical safety without leakage.

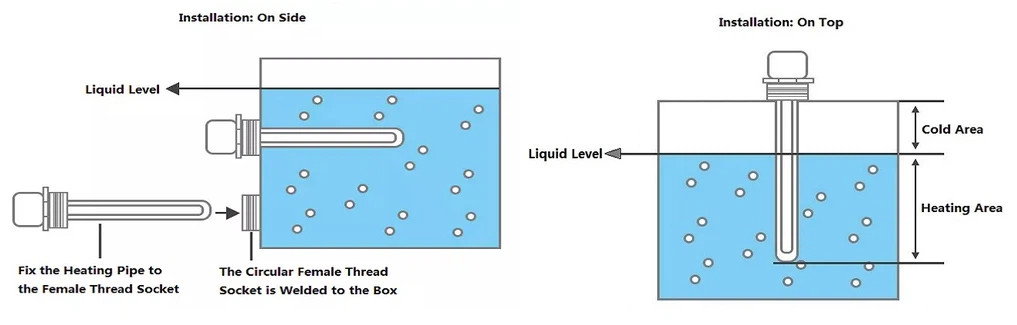

Install Way
Side mounting: install the side opening at a certain distance from the water tank to thebottom.
Top mounting: opening at the bottom or top of the water tank for installation, or hanging atthe top.
Application
*** Household electric water heaters: Storage type, instant type, wall-mounted, vertical water heaters
*** Commercial water heaters: Hotel, hospital, school, factory large-capacity water heaters, industrial hot water supply equipment
*** Special water heating equipment: Solar water heater auxiliary heating, air energy water heater heating core, water tank heating equipment
*** Other: RV water heaters, marine water heaters (316 stainless steel special model)
JINGWEI Workshop
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
