Product Configuration
The strip finned tubular heater is a highly efficient and widely used electric heating component. The strip finned heater's design ingeniously combines multiple material and structural features, achieving outstanding heat exchange performance. The core components of this finned tubular heater include a metal tube, electric heating wire, modified MgO powder, and external fins, each of which plays a crucial role in the overall performance.
As the basic structure of the heating element, stainless steel tubes are usually made of high-performance materials such as stainless steel. These materials not only have good thermal conductivity and corrosion resistance but also maintain stable mechanical properties at high temperatures. Secondly, the electric heating wire (i.e., resistance wire) is the core for energy conversion in the heating element. It converts electrical energy into thermal energy through the resistance effect when current flows through it. To ensure insulation between the electric heating wire and the metal tube and to enhance thermal conduction efficiency, a special modified MgO powder is filled between them. This powder has high insulation performance and excellent thermal conductivity, which can ensure safety while improving heat transfer efficiency.
Product Paramenters
| Porduct Name | Customized Strip Finned Tubular Heater Element for Industry Heating |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,etc |
| Shape | Straight,U shape,W shape,or customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Finned Heating Element |
| Terminal | Rubber head,flange |
| Length | Customized |
| Approvals | CE, CQC |
| The shape of strip finned tubular heater we usually made by straight,U shape,W shape,we can also customized some special shapes as required.Most customer's is choosed the finned heater tube head by flange,if you used the strip finned tubular heater on unit cooler or other defrsoting equipments,maybe you can choosed the head seal by silicone rubber,this seal way has the best waterproof. | |
Shape Choose

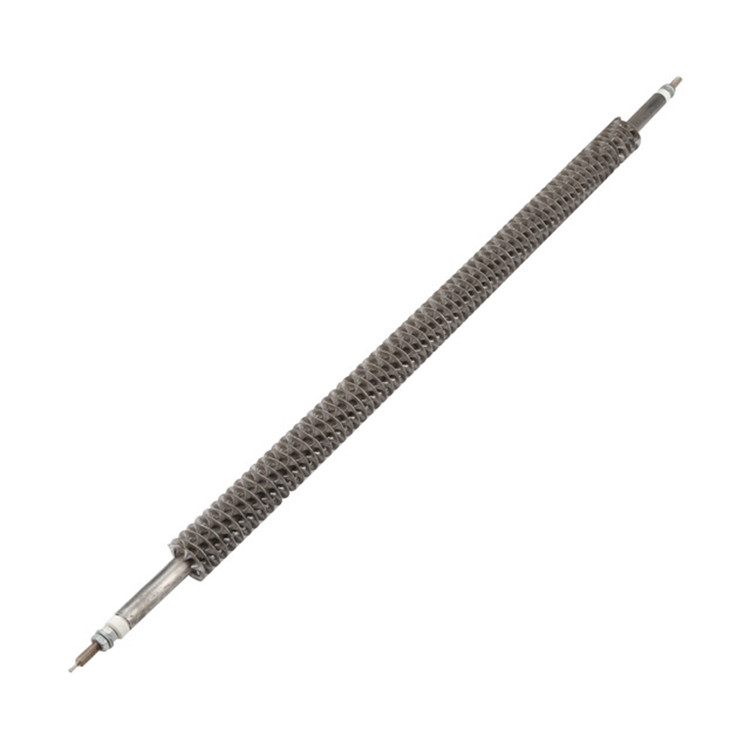

Straight

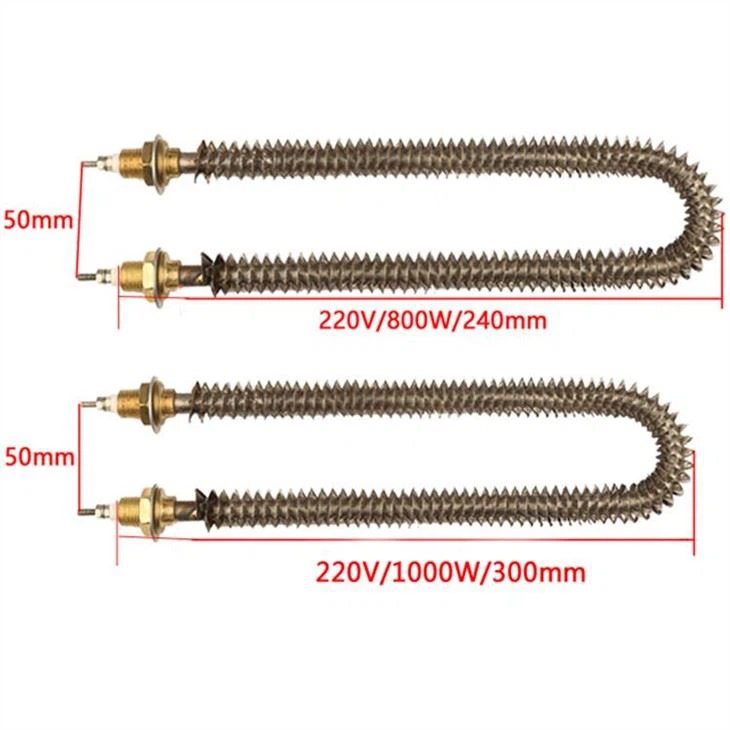

U shape

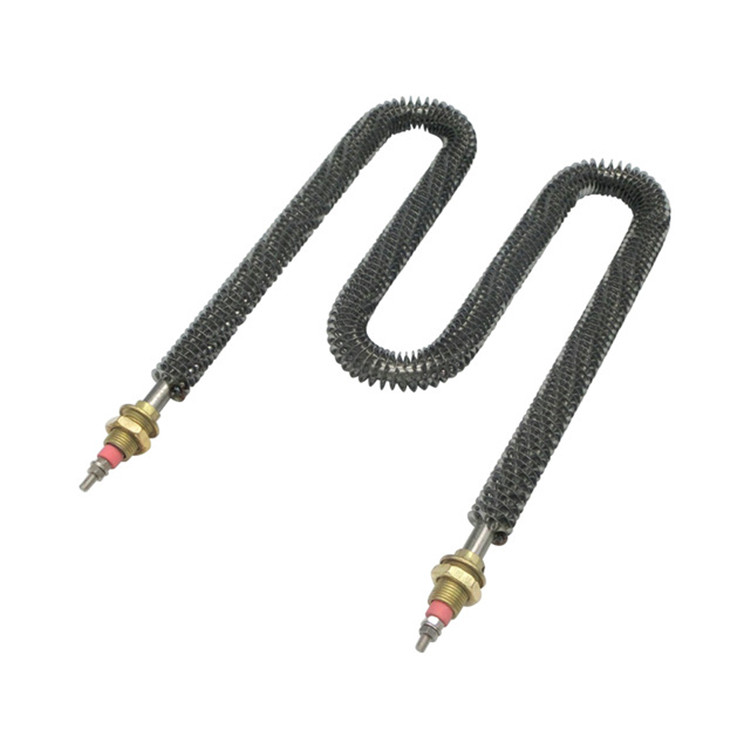

W shape
*** High heating efficiency, good energy saving effect.
*** Strong structure, long service life.
*** Adaptable, can be used in a variety of media (air, liquid, solid).
*** Strip finned tubular heater shapes and sizes can be customized according to requirements.
Product Features
The design of external fins is a major highlight of strip finned tubular heater. Fins significantly enhance the heat transfer efficiency by increasing the surface area of the heating tube. Specifically, the presence of fins allows for more heat to come into contact with the surrounding medium within a unit of time, thereby accelerating the heat exchange process. Moreover, the shape, thickness, and spacing of the fins can be optimized according to the actual application scenarios to meet the requirements of different working conditions. For instance, in air heating applications, fins are typically designed to be more densely packed to better exchange heat with the flowing air; while in liquid heating, larger fins may be used to accommodate the heat transfer characteristics of liquids.
Product Applications
Due to its excellent heat exchange capacity and flexible customization options, strip finned tubular heaters are widely used in various fields.
In industrial production, strip finned heaters are often employed in air heating systems, such as drying equipment and painting lines;
In household and commercial settings, strip finned heaters are commonly found in air conditioning systems, water heaters, and ovens.
Additionally, in scenarios requiring high-temperature processing, such as furnaces and industrial ovens, strip finned tubular heaters also perform exceptionally well.
Whether in low or high-temperature conditions, this type of finned tubular heater can provide stable and reliable performance.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Defrost Heater Element
Immersion Heater
Oven Heating Element
Aluminum Foil Heater
Crankcase Heater

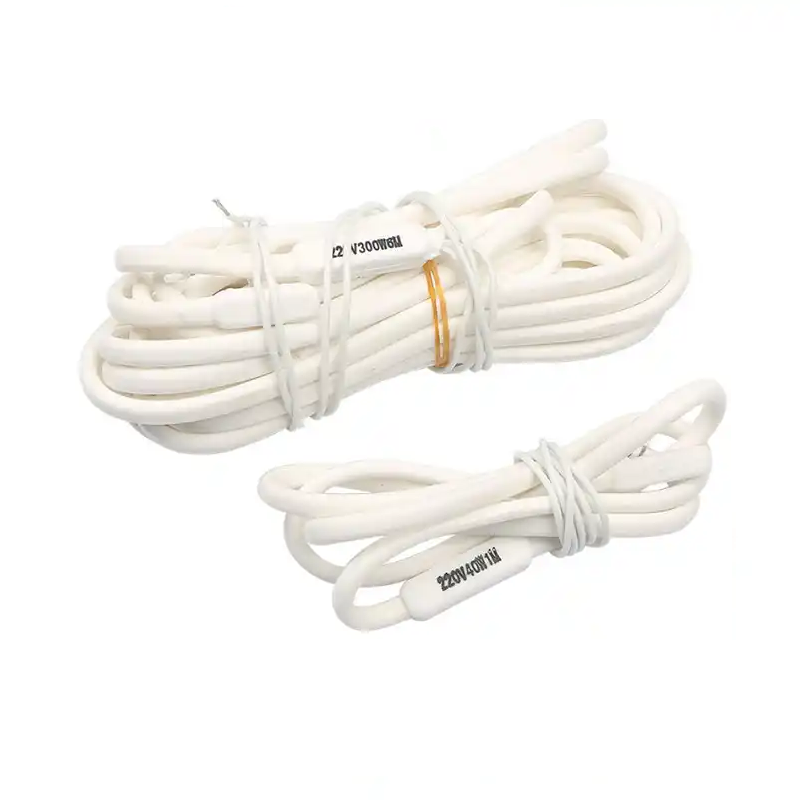

Drain Line Heater
