Product Configuration

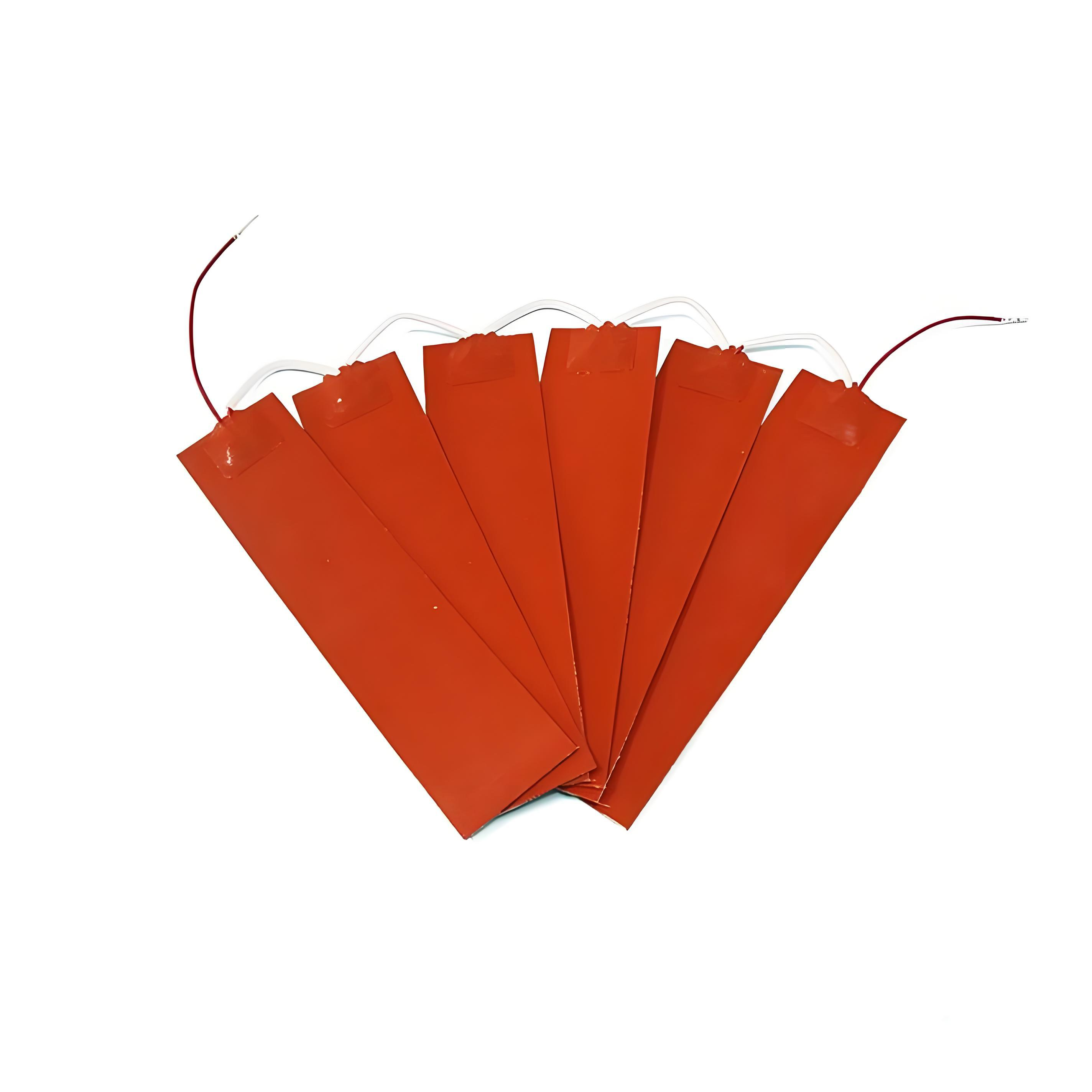

The silicone rubber oil heating pad is an electric heating device specifically designed for heating oil drums, storage tanks or chemical containers. The silicone rubber heating pad is mainly used to prevent oil products (such as lubricating oil, hydraulic oil, asphalt, chemical raw materials, etc.) from solidifying or increasing in viscosity in low-temperature environments, ensuring the fluidity of the oil and facilitating its transportation and use.
Silicone rubber oil heating pads are made of high-temperature resistant silicone rubber, with nickel-chromium alloy heating wires or metal heating film circuits embedded inside, and the outer layer is wrapped with glass fiber cloth to enhance insulation and mechanical strength. The silicone rubber heater pad feature flexibility, allowing bending, ultra-thinness and lightness (1.5mm thick, 1.3-1.9kg/m² in weight), as well as rapid and uniform heating. Silicone rubber heating pads can be made into any shape, including three-dimensional ones, and various openings can be reserved for convenient installation.
Product Paramenters
| Porduct Name | China Silicone Rubber Oil Heating Pad Heater |
| Material | Silicone rubber |
| Thickness | 1.5mm |
| Voltage | 12V-230V |
| Power | customized |
| Shape | Round,square,rectangle,etc. |
| 3M adhesive | can be added |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Silicone Rubber Heating Pad |
| Termianl | Customized |
| Company | factory/supplier/manufacturer |
| Approvals | CE |
| The Silicone Rubber Heater contains silicone rubber heating pad,crankcase heater,drain pipe heater,silicone heating belt,home brew heater,silicone heating wire.The specification of silicone rubber heating pad can be customized as client's requirements. | |
Product Features
✅ Flexible and bendable
The silicone rubber oil heater adopts to different shapes of oil drum or container surfaces.
✅ Energy saving and high efficiency
direct heating of barrel wall, small heat loss.
✅ Flexible and bendable
The silicone rubber oil heater adopts to different shapes of oil drum or container surfaces.
✅ Corrosion resistance
silicone or polyimide outer layer is resistant to oil, acid and alkali.
✅ Easy installation
no need to modify the container, directly fit and fix.
Product Application
*** Industrial oil insulation: lubricating oil, gear oil, hydraulic oil and other low temperature anti-coagulation.
*** Chemical industry: asphalt, paraffin, resin and other viscous liquid fluidity maintenance.
*** Food processing: Cooking oil, syrup and other food grade heating (subject to FDA standards).
*** Outdoor equipment: construction machinery fuel tank winter antifreeze.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Fryer Heating Element
Defrost Heater Element
Crankcase Heater
Defrost Wire Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
