Product Configuration
The silicone rubber heating element for gas cylinders is mainly composed of nickel-chromium alloy etched heating elements or nickel-chromium alloy heating wires and silicone rubber high-temperature insulating cloth. The silicone rubber heater heating element for gas cylinders is a common solution for providing stable and safe heating for gas cylinders in low-temperature environments. The silicone rubber heater pad maintains gas flowability, prevents freezing, and ensures process stability through uniform heating. Its main purpose is to prevent gas cylinders from experiencing flow impairment or supply interruption due to pressure drop, gas liquefaction, or freezing in low-temperature conditions.
The silicone rubber heater heating element mainly enables the liquid and solidified substances in the bucket to be easily removed. For instance, the adhesives, oils, asphalt, paints, paraffin, oils and various resin raw materials in the bucket can be made to have their viscosity reduced uniformly through the heating of the bucket body, thereby reducing the workload of the pump. Therefore, the silicone rubber heating pad is not affected by the seasons and can be used all year round. The silicone heater pad is equipped with a temperature controller, allowing for temperature adjustment. It is easy to install, energy-saving and safe. This silicone rubber heater bed heats up quickly, has uniform temperature, high thermal efficiency, is resistant to aging and has a long service life.
Product Paramenters
| Porduct Name | China Silicone Rubber Heater Pad Heating Elements for Gas Cylinders |
| Material | Silicone rubber |
| Thickness | 1.5mm-1.8mm |
| Voltage | 12V-230V |
| Power | customized |
| Shape | Round,square,rectangle,etc. |
| 3M adhesive | can be added |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Silicone Rubber Heating Pad |
| Termianl | Customized |
| Package | carton |
| Approvals | CE |
| The Silicone Rubber Heater Heating Elements for Gas Cylinders contains silicone rubber heating pad,crankcase heater,drain pipe heater,silicone heating belt,home brew heater,silicone heating wire.The specification of silicone rubber heating pad can be customized as client's requirements. | |
Product Infomation
1. Working temperature range: approximately -60°C to 250°C, depending on the product specifications.
2. Power selection: varies greatly depending on the size of the cylinder, ranging from several watts to several thousand watts. For example, the power of the silicone rubber heating pad for a 15kg cylinder is approximately 250W - 300W, while that for a 200L large-capacity cylinder can reach 2000W.
3. Size selection: choose the size of the silicone rubber heating pad based on the circumference of the cylinder. Options include 250*1740mm, 200*860mm, 125*1740mm, 150*1740mm, etc.
Product Features
Flexible design
The silicone rubber heater can closely fit the curved surface of the gas cylinder to ensure efficient heat conduction.
Uniform heating
Prevent local overheating, protect the cylinder and enhance efficiency.
Safe and reliable
The silicone rubber heater usually equipped with overheat protection and made of insulating materials.
Durable and energy-efficient
High mechanical strength, fast thermal response, and can reduce energy consumption.
Customization
The size, voltage, power and shape of silicone rubber heater pad/mat/bed can all be customized according to the specific specifications of the gas cylinder and the application requirements.
Product Application
Silicone rubber electric heating mat/pad/bed is a particularly soft and fixed-length heating strip with high power density. Therefore, in addition to being used for auxiliary heating and insulation of general constant power tapes, it can also be used in certain situations where heating is required.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Fryer Heating Element
Defrost Heater Element
Crankcase Heater
Defrost Wire Heater
Drain Line Heater

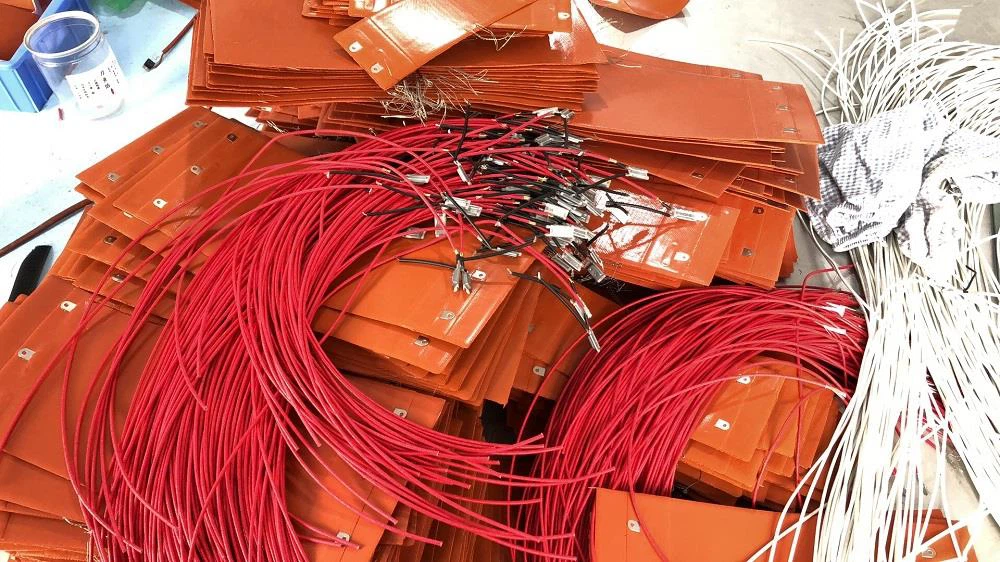

Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
