Product Configuration
The silicone rubber heater with controller is equipped with high-purity nickel-chromium alloy resistance wires (with a purity of ≥ 99.9%) and an automated precision winding machine. The wires are arranged at equal intervals and the winding tolerance is ±0.1mm, ensuring uniform power output. The wires are completely encapsulated in high-temperature-resistant silicone rubber and are paired with a glass fiber woven insulation layer. It has excellent flexibility and is resistant to large-angle bending. It will not break even after repeated bending and can be adapted to irregular surfaces such as curved pipes and irregular cavities. This process has a higher cost-effectiveness and silicone rubber heater is suitable for high-pressure, high-power, and large-area heating scenarios, such as preheating of industrial equipment, pipe anti-freezing, and heating of household appliances.
One of the major features of the silicone rubber heater mat for battery is its flexibility, allowing it to be easily bent to fit various shaped surfaces. Additionally, silicone rubber heater is very thin and light, with a thickness of only 1.5mm and a weight of 1.3 to 1.9 kg per square meter, making it convenient to carry and install. Due to silicone rubber heater for battery heating ultra-thin design and uniform heating characteristics, the silicone rubber heater can quickly and efficiently provide the required temperature support for oil products, avoiding operational difficulties caused by insufficient temperature.
Product Paramenters
| Porduct Name | China Factory Silicone Rubber Heater with Controller |
| Material | Silicone rubber |
| Thickness | 1.5mm |
| Voltage | 12V-230V |
| Power | customized |
| Shape | Round,square,rectangle,etc. |
| 3M adhesive | can be added |
| Resistant voltage | 2,000V/min |
| Insulated resistance | 750MOhm |
| Use | Silicone Rubber Heating Pad |
| Termianl | Customized |
| Package | carton |
| Approvals | CE |
| The silicone rubber heater contains silicone rubber heating pad,crankcase heater,drain pipe heater,silicone heating belt,home brew heater,silicone heating wire.The specification of silicone rubber heating pad can be customized as client's requirements. | |
Product Features
- Ultra-thin and highly flexible
The overall thickness is strictly controlled within 0.8mm - 1.5mm (some models silicone rubber heaters are as thin as 0.5mm), with a bending radius as low as 8R - 10R (R = thickness of the heating sheet). The silicone rubber heater with controller can seamlessly fit onto flat surfaces, curved surfaces and irregular surfaces. After 10,000 bends, it remains undamaged and unbroken, and is suitable for complex installation spaces.
- Wide temperature adaptability
The silicone rubber heater with controller uses self-developed high-temperature-resistant silicone, which can operate stably within an extremely wide temperature range of -62℃ to 250℃ (200℃ can be used continuously). Silicone rubber heater pad can withstand more than 500 high and low temperature impacts (-50℃ to 200℃) without aging or deformation, and its performance far exceeds that of ordinary silicone heating mats.
- High efficiency and energy saving
The thermal conversion efficiency is over 95%; an optional self-adjusting version is available, which can automatically adjust the heat output according to the ambient temperature and only heats when necessary, saving 30% energy compared to traditional heating elements. The low power density design (0.5W/cm² - 2.0W/cm²) ensures stable heating and eliminates local overheating.
- Full-dimensional customization
Silicone rubber heater supports customization for shape (circular, triangular, irregular), size, power (3W - 500W), voltage (1V - 600V AC/DC), and heating process (etching/winding); additional customizable features include high-temperature 3M adhesive, wire welding, reserved installation holes, etc., to meet various personalized requirements.
- Easy installation, low maintenance cost
Silicone rubber heater mat can be installed using adhesive, fasteners or binding methods, without the need for complex renovations, significantly reducing installation time and lowering labor costs. Once installed, no regular maintenance is required. The service life exceeds 10,000 hours and comes with a 1 year warranty.
Product Application
1. Preheating and insulation of the new energy battery pack
2. Preheating of industrial equipment molds (for injection molding, die-casting, blow molding molds, etc.)
3. Anti-freezing and insulation for industrial pipelines (in chemical, water conservancy, and cold chain industries)
4. Instrumentation temperature control protection, equipment chamber heating
5. Household appliance heating (coffee machines, water heaters, insulated boxes, dehumidifiers)
6. Medical equipment auxiliary heating (therapeutic equipment, infusion heater, diagnostic equipment constant temperature)
7. 3D printer heating bed, electronic component temperature control
8. Anti-freezing measures for civil pipelines and valves, insulation for outdoor equipment
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

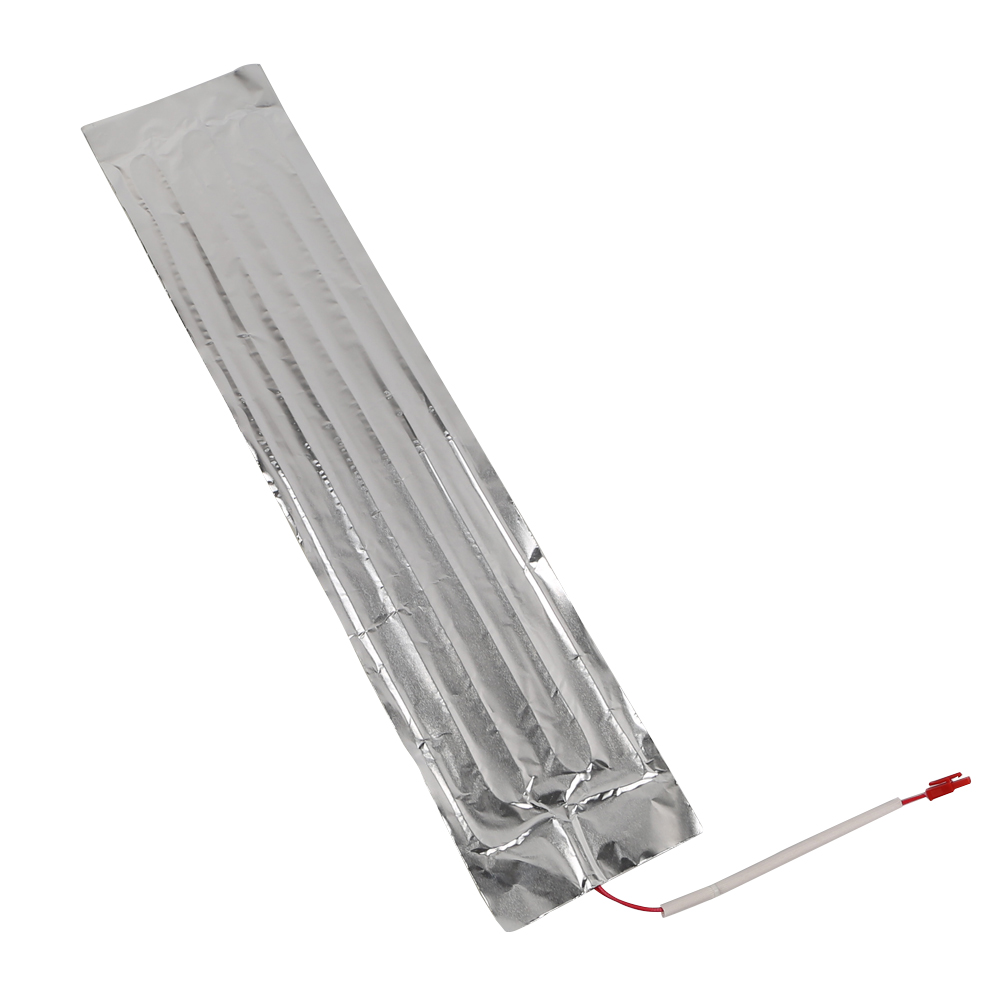

Aluminum Foil Heater
Fryer Heating Element

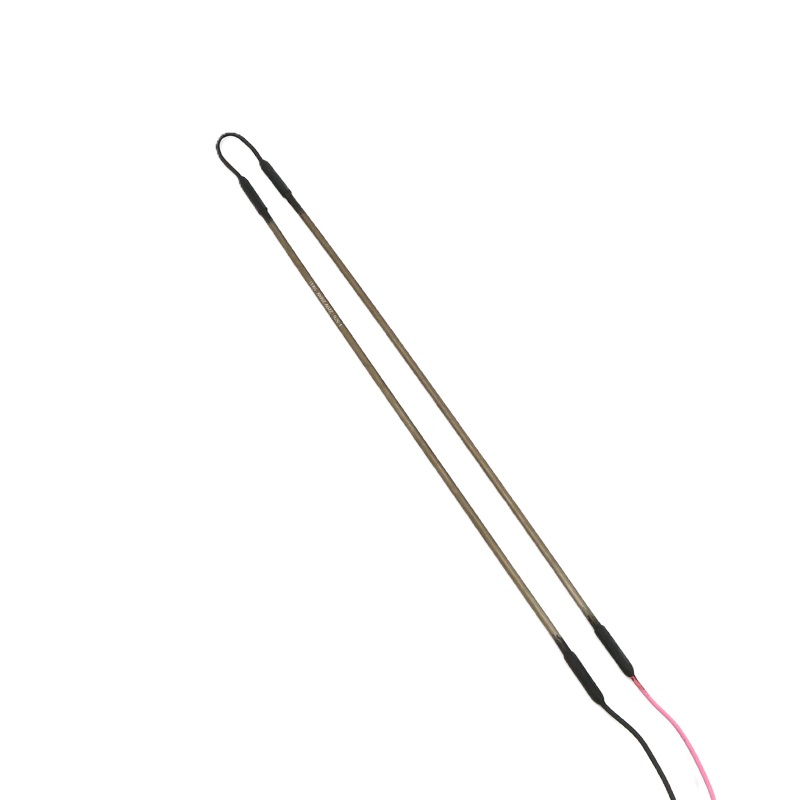

Defrost Heater Element

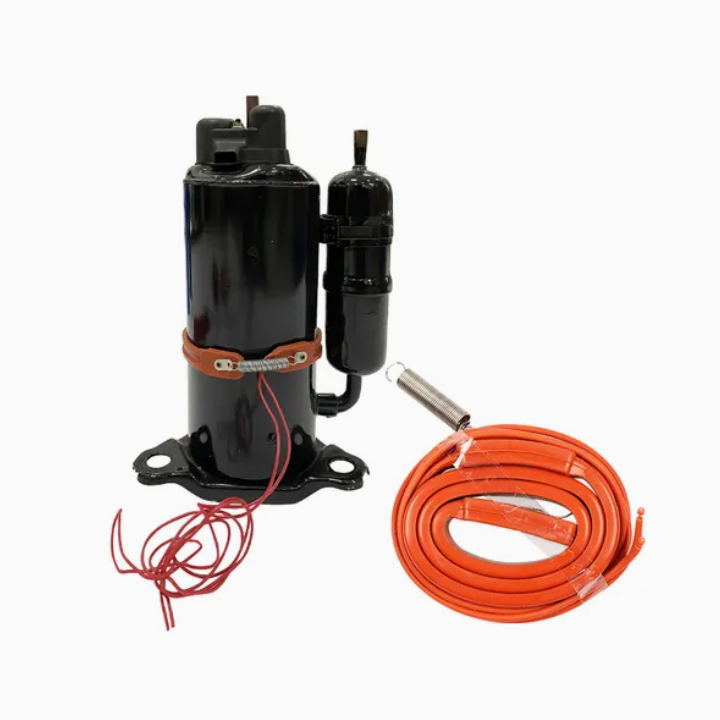

Crankcase Heater
Defrost Wire Heater

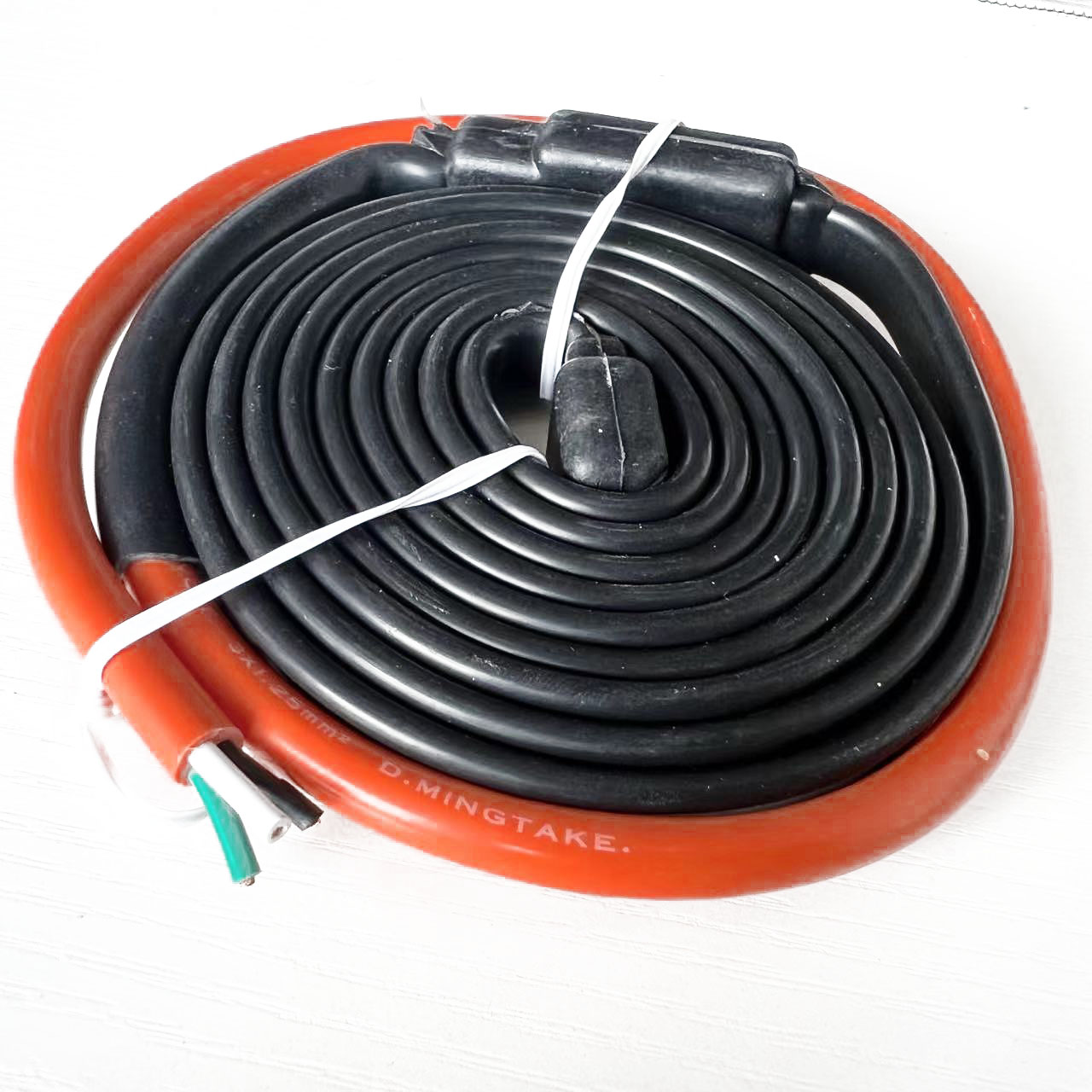

Drain Line Heater
