Product Configuration
The oven bake heating element for stove specifically designed for dry baking in microwave ovens, which can operate efficiently in various types of oven configurations. The uniqueness of this oven bake heating element lies in its design exposed to the air, which can maximize the optimization of dry baking performance. In this way, heat can be transferred more directly to the surface of the food, achieving faster and more uniform cooking results.
The core component is a solid heating wire, which is carefully wrapped in modified MgO powder to provide insulation. The selection of this material not only ensures the safety and durability of the heating element but also promotes the process of forced convection heating. Forced convection heating refers to actively guiding the flow of hot air, resulting in a more uniform temperature distribution throughout the oven. As a result, food placed either at the top or bottom of the oven can receive consistent heating, avoiding the common hot and cold spots found in traditional ovens.
Product Paramenters
| Porduct Name | China Factory Replacement Oven Bake Heating Element for Stove Parts |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Surface Load | ≤3.5W/cm2 |
| Tube diameter | 6.5mm,8.0mm,10.7mm,etc. |
| Shape | straight,U shape,W shape,etc. |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Oven bake Heating Element |
| Tube length | 300-7500mm |
| Shape | customized |
| Approvals | CE/ CQC |
| Company | factory/supplier/manufacturer |
|
The oven bake heating element heater is used for the microwave,stove,electric grill.Shape of the oven bake heating element can be customized as client’s drawings or samples.The tube diameter can be choosed 6.5mm,8.0mm or 10.7mm. JINGWEI HEATER is the professional heating tube factory/supplier/manufacturer,the voltage and power of oven heating element for grill/stove/microwave can be customized as required.And the oven bake heating element tube can be annealed,the tube color will be dark green after annealing.We have many kinds of the terminal models,if you need add the terminal,you need send us the model number first. |
|
Type of Oven Heating Element
1. The exterior of the oven bake heating elements, which is composed of dark green stainless steel that has been specially treated to make it green, is one of their most notable features. This guarantees longevity and wear resistance in addition to improving the oven heating element's appearance.
2. The oven bake heating elements are designed with longevity in mind. Our oven bake heating elements are built to last, so you can be confident they will withstand the rigors of everyday use without compromising performance. Plus, with a simple installation process, you can install your oven heating elements quickly.
3. Customers can customize the shape, voltage, and wattage of oven bake heating elements to meet their specific needs.
Products Appliance

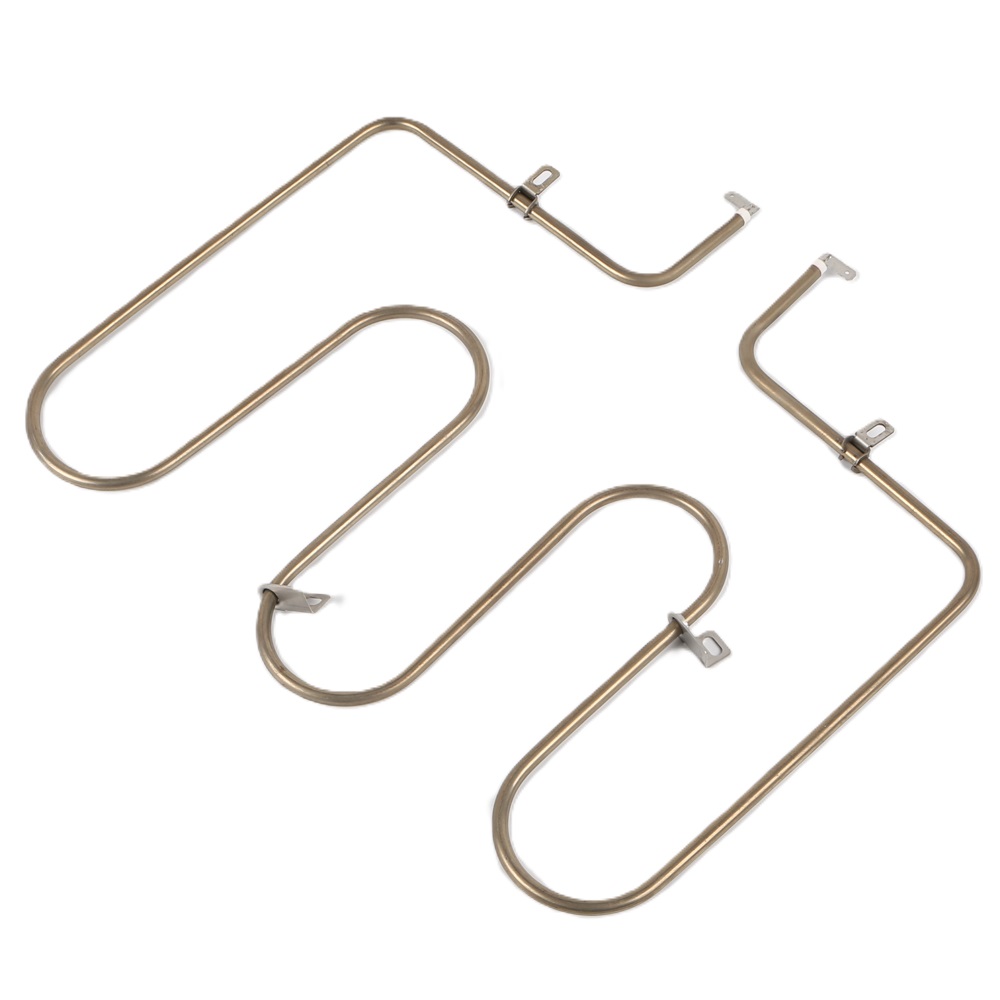

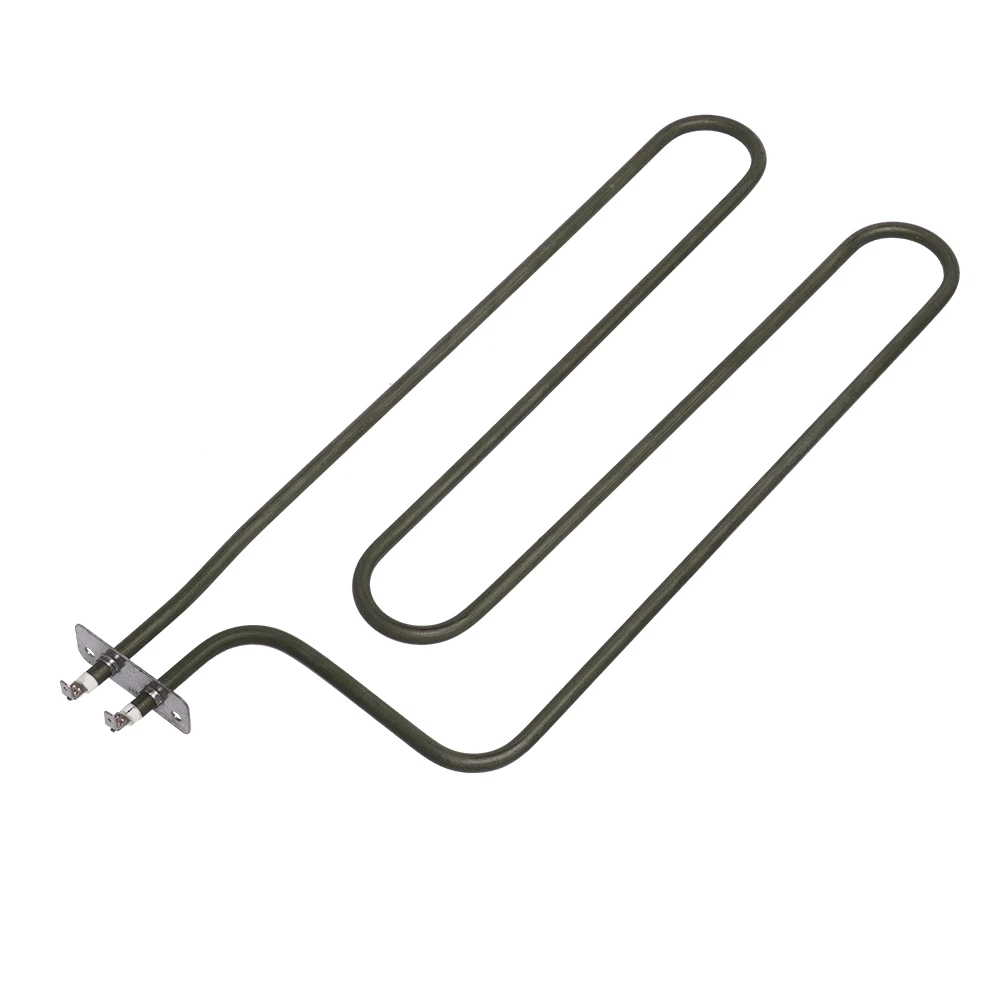

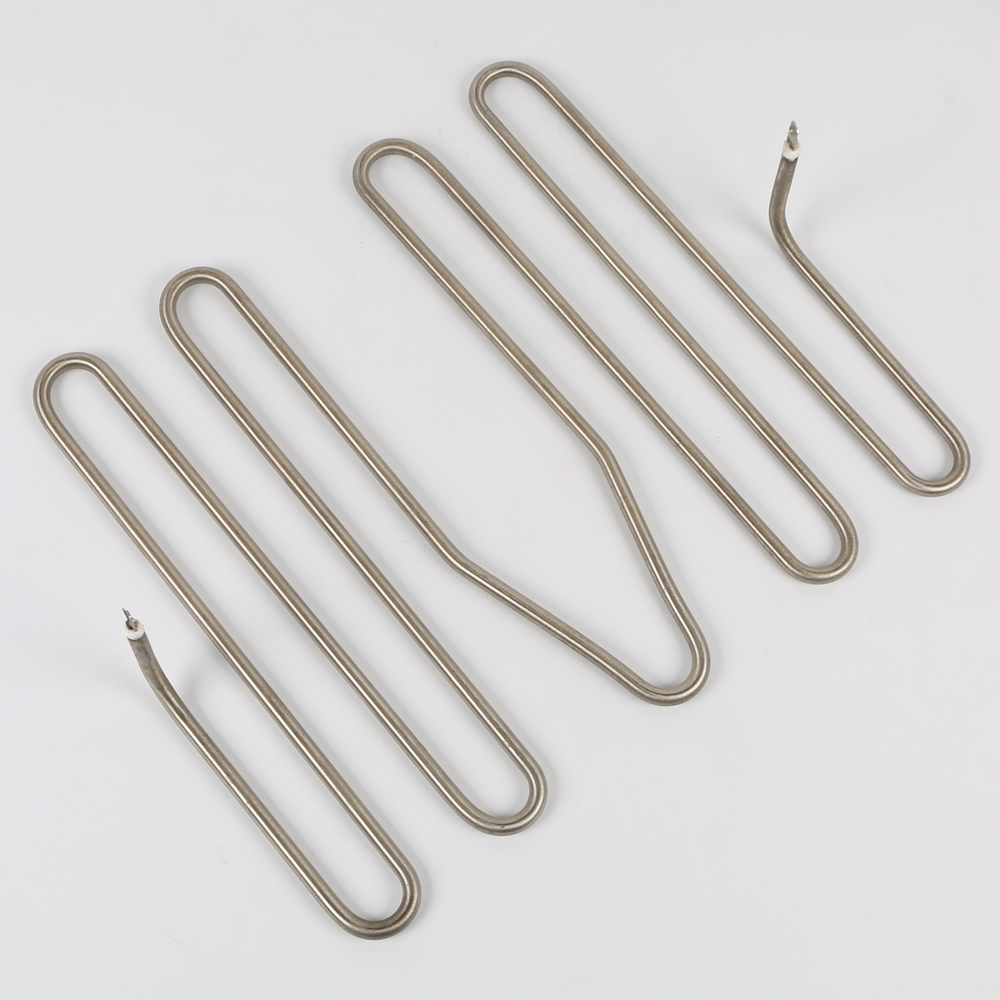

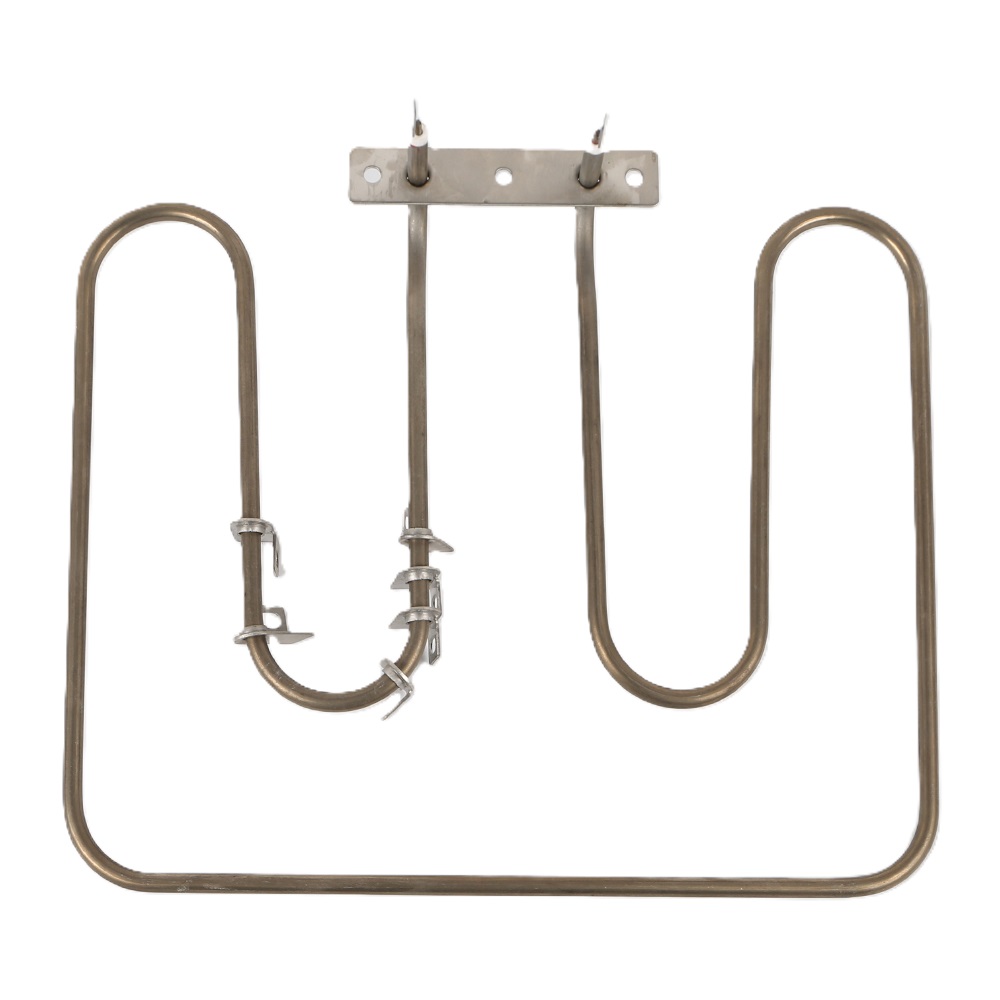

The oven bake heating element components come in a range of designs, including U-shaped, W-shaped, and straight bar combinations. This adaptability allows them to be smoothly incorporated into a range of oven designs to meet varied cooking demands. The oven bake heating element components are designed to offer great thermal efficiency, guaranteeing that your food is cooked evenly and completely whether you're baking, roasting, or grilling.
JINGWEI Workshop
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Aluminum Foil Heater
Oven Heating Element

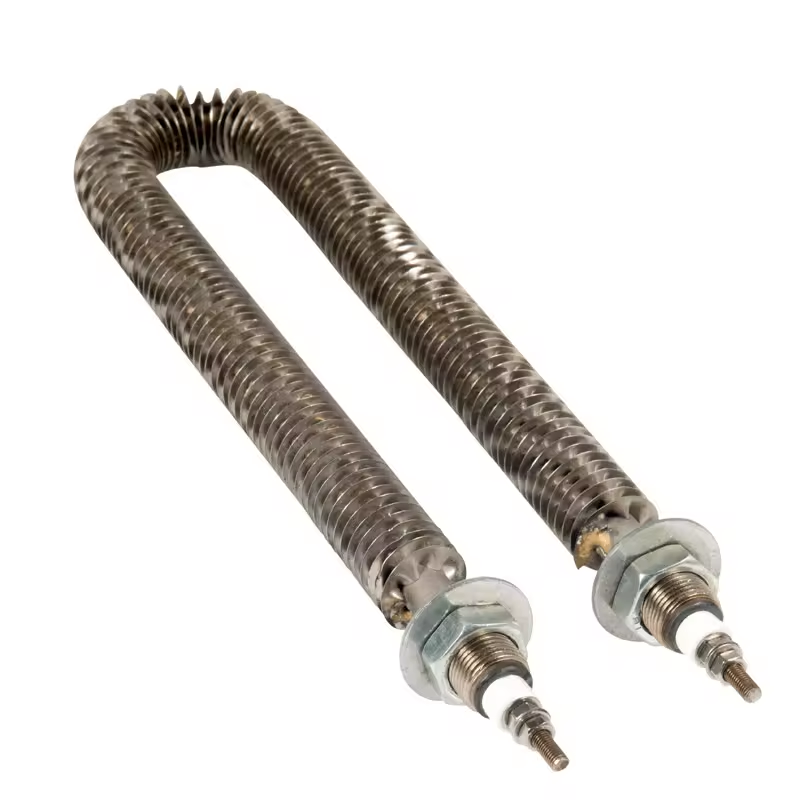

Fin Heating Element
Silicone Heating Pad

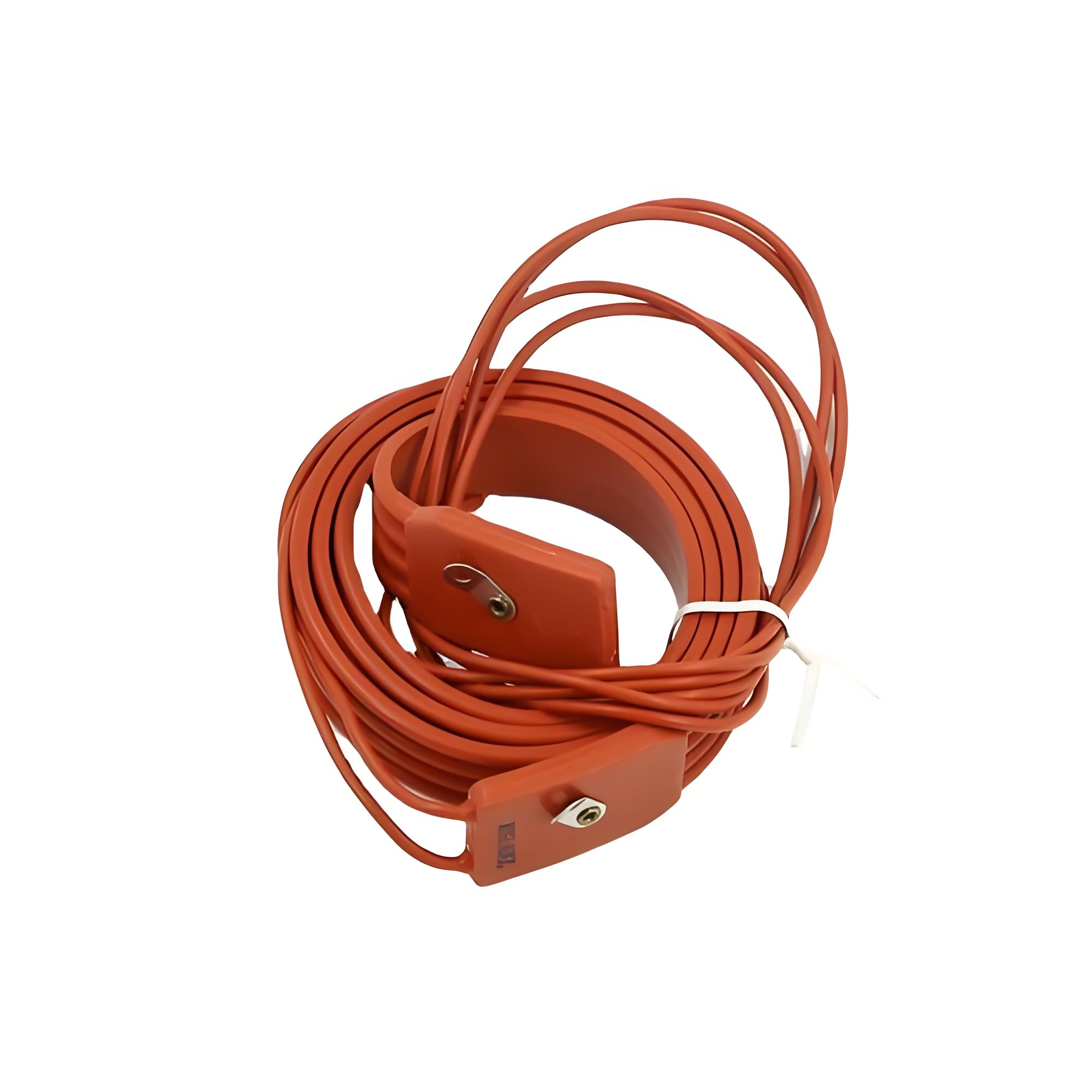

Crankcase Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
