Product Configuration

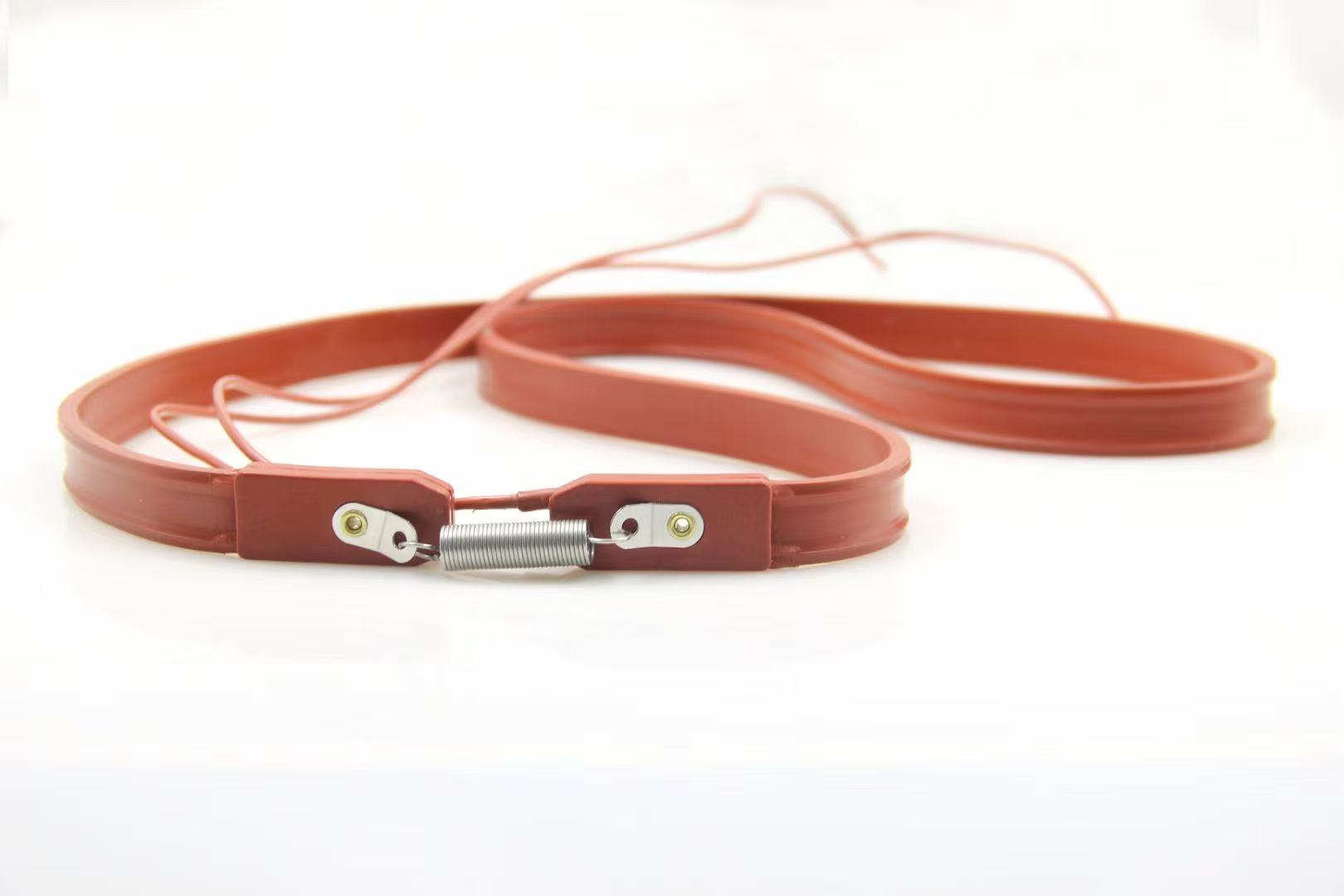

The China crank case heater element have sevelar belt width,such as 14mm ( standard),20mm (standard),25mm,30mm.The crankcase heater element length can be customized as customer’s requirement,the lead wire of heating belt can be made 1000mm,2000mm,etc.Package is one crank case heater element +spring for polybag.
Although the China crankcase heater element is not a core refrigeration component, it is a crucial compressor protection device that can effectively extend the service life of the compressor and improve the reliability of the system operation.
The compressor crankcase heater is like putting an electric heating insulation coat on the "oil tank" of the compressor. When the compressor stops, the crankcase heater element belt starts to work, preventing the lubricating oil from being contaminated by the liquid refrigerant, thereby ensuring that the compressor can start smoothly with good lubrication and full vitality, and avoiding the risk of liquid impact.
Product Paramenters
| Porduct Name | China Crank Case Heater Element for Compressor |
| Humidity State Insulation Resistance | ≥200MΩ |
| After Humid Heat Test Insulation Resistance | ≥30MΩ |
| Humidity State Leakage Current | ≤0.1mA |
| Material | silicone rubber |
| Width of belt | 14mm,20mm,25mm,etc. |
| Length of belt | Customized |
| Resistant voltage | 2,000V/min |
| Insulated resistance in water | 750MOhm |
| Use | Crankcase heater element |
| Lead wire length | 1000mm,or custom |
| Package | one heater with one bag |
| Approvals | CE |
| Terminal type | Customized |
|

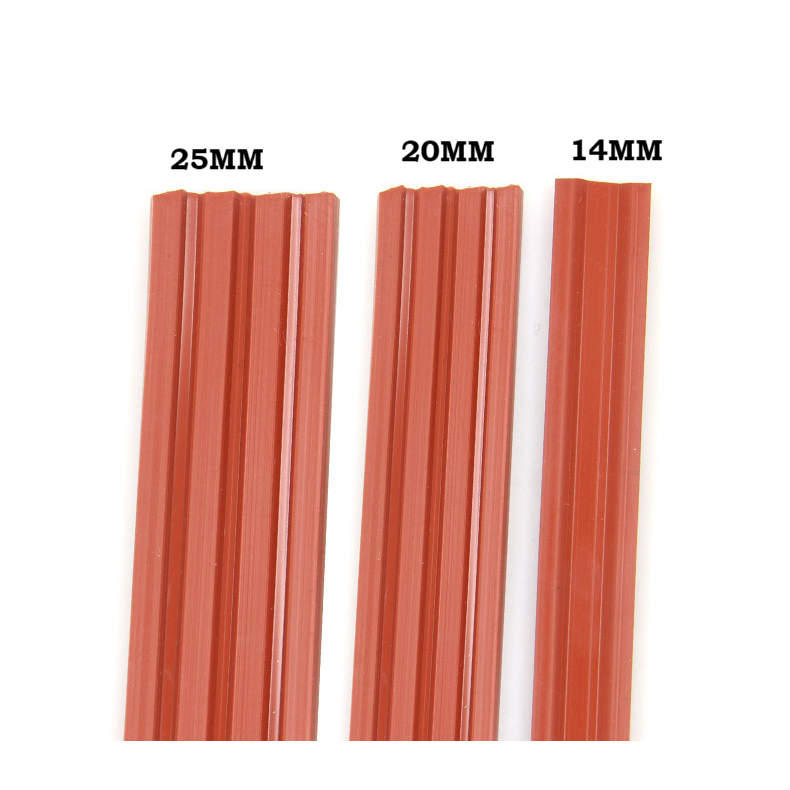

The China crank case heater element belt width can be made 14mm,20mm,25mm,30mm,and so on.The silicone rubber crankcase heater can be used for air-conditioner compressor or cooler fan cylinder defrosting.The crankcase heater belt length can be customized as client’s requirements. |
|
Working Principle
1. Heating by electricity
The inner part of the crankcase heater strip contains an electric heating wire with resistive properties. When electricity is applied, it generates heat.
2. Maintain oil temperature
Wrap or attach the crankcase heater element tightly to the surface of the compressor crankcase. The heat generated by it will continuously transfer to the crankcase and the internal lubricating oil.
3. Prevent condensation
By maintaining the temperature of the crankcase consistently higher than that of the other parts of the system (usually higher than the condensation temperature), the refrigerant vapor will not condense into liquid within the crankcase. This ensures that the refrigeration oil always maintains the appropriate viscosity and lubrication performance.
Product Application
The China crankcase heater element is mainly used for refrigeration systems that will experience long periods of downtime after long-term operation, or in areas with large temperature differences and high humidity. Especially:
1. Large commercial air conditioners
2. Refrigeration unit of the cold storage facility
3. Heat Pump System
4. Air conditioners that provide heating in winter (because the outdoor temperature is low in winter, the phenomenon of migration after shutdown becomes more severe)
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery
Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products

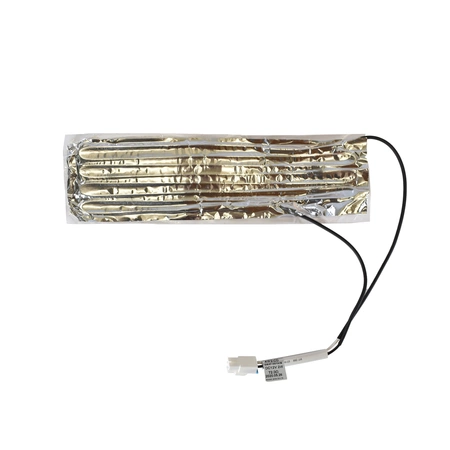

Aluminum Foil Heater
Oven Heating Element
Fin Heating Element
Silicone Heating Pad
Crankcase Heater
Drain Line Heater
Factory Picture
Before the inquiry,pls send us below specs:
1. Sending us the drawing or real picture;
2. Heater size,power and voltage;
3. Any special requirements of heater.
