Product Configuration
Aluminum heated plates for hydraulic press are highly efficient heating devices widely used in hot press plate equipment. Their core material is high-quality aluminum alloy, manufactured through precise die-casting processes. These aluminum heated plate for hydraulic press are specifically designed for processes requiring high temperatures and uniform heat distribution, such as heat transfer printing, heat press machine,heat transfer printing with spray paint, and other industrial applications that demand precise temperature control. Their operating temperature range is typically between 150 and 450 degrees Celsius, capable of meeting the demands of various complex processes.
The core heating part of the aluminum heated plate for hydraulic press uses iron-chromium-aluminum wire electric heating tubes as the heat source. These electric heating tubes have excellent high-temperature resistance and stable heating efficiency, with a surface load range of 2.5 to 4.5 watts per square centimeter. This design ensures that the aluminum heating plate can reach the required high temperature in a short time and maintain a uniform heat distribution. Additionally, the iron-chromium-aluminum wire electric heating tubes have a long service life, reducing equipment maintenance frequency and improving production efficiency.
Product Paramenters
| Porduct Name | Aluminum Heat Press Heated Plates for Hydraulic Press Manufacturer |
| Heating Part | Electric heating tube |
| Voltage | 110V-230V |
| Power | Customized |
| One sets | Top heating plate+base bottom |
| Teflon Coating | Can be added |
| Size | 290*380mm,380*380mm,etc. |
| MOQ | 10 sets |
| Package | Packed in wooden case or pallet |
| Use | Aluminum heating plate for heat press machine |
|

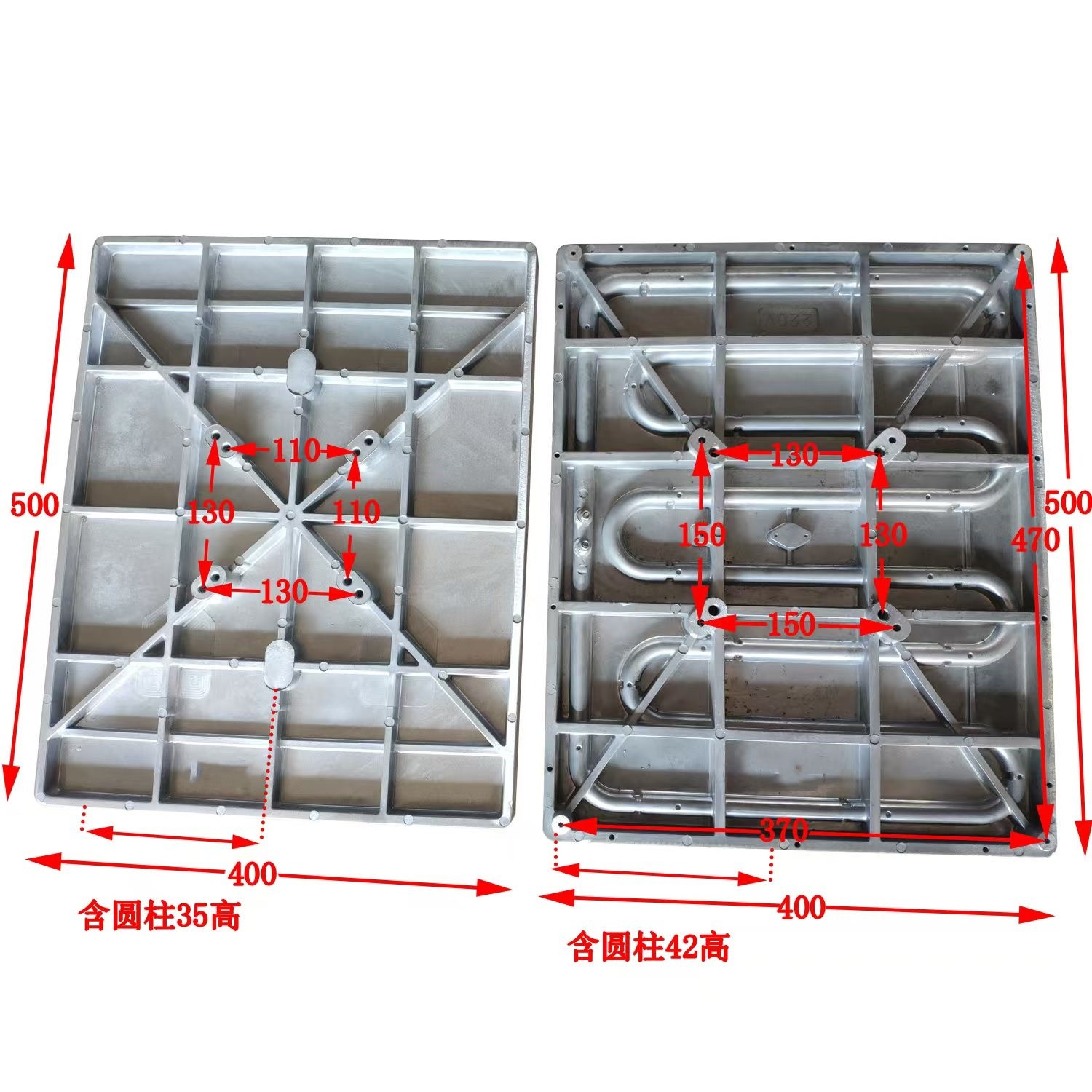

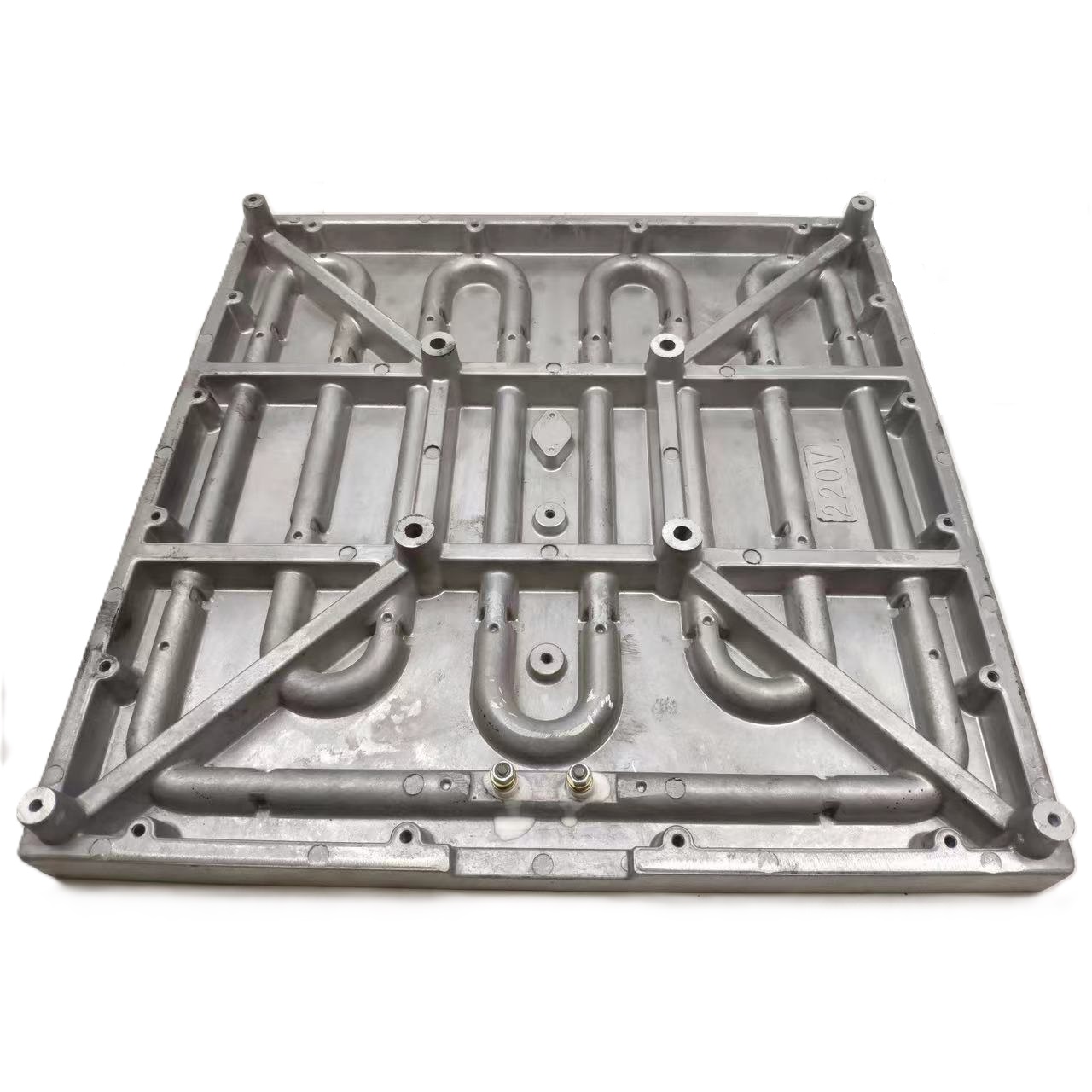

The aluminum heated plate for hydraulic press size as below: 100*100mm,200*200mm,290*380mm380*380mm,400*500mm,400*600mm,500*600mm,600*800mm,etc. We also have large size aluminum hot plate for heat press,such as 1000*1200mm,1000*1500mm,and so on.These aluminum hot plates we have have the molds and if you need to be customized molds,pls send us the aluminum heating plate drawings (the mold fee need pay by yourself.) |
|

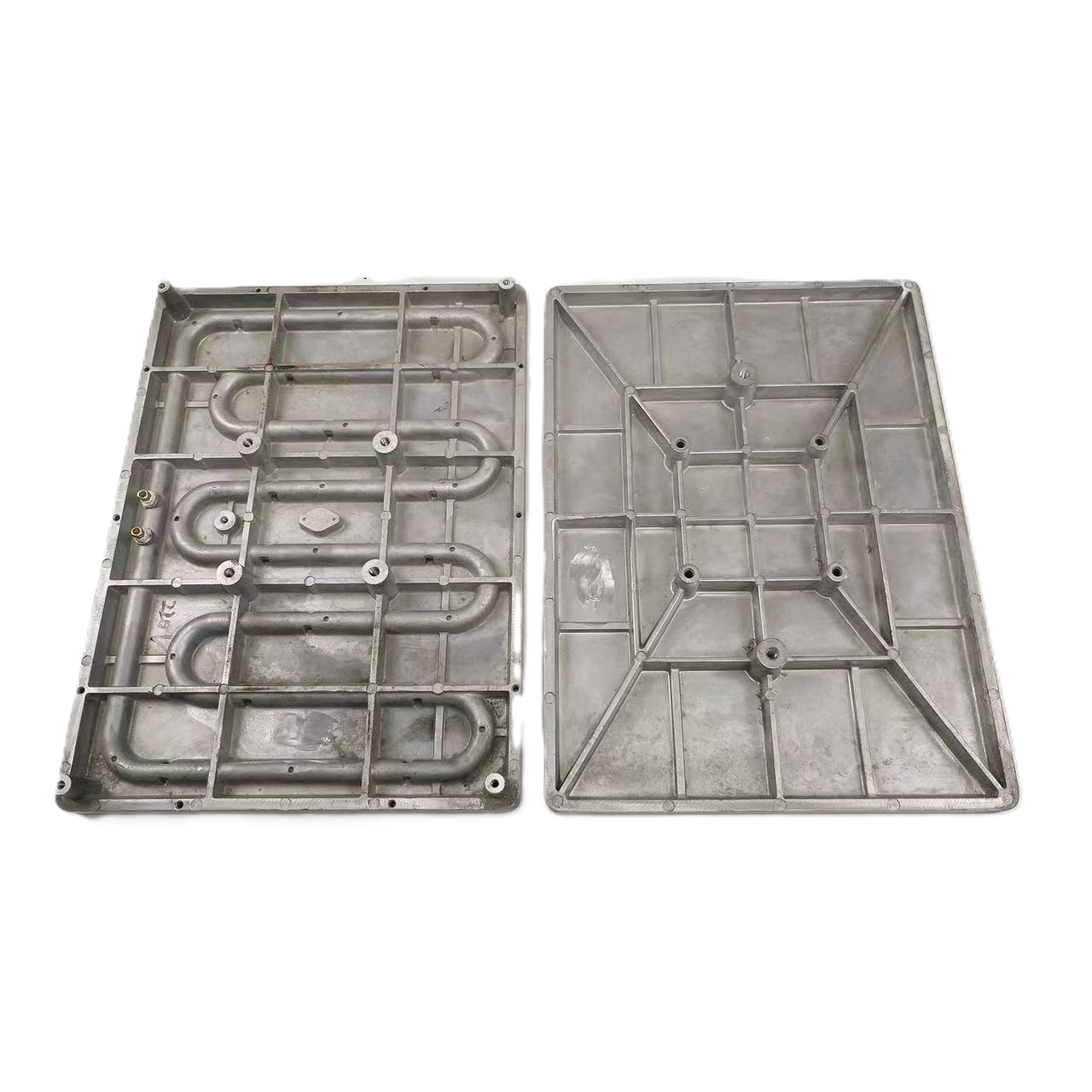

330*450mm

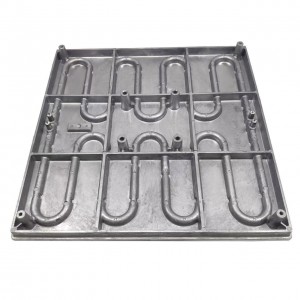

380*380mm
400*460mm
Features
The shell of the heating plate for heat press machine is cast from national standard aluminum ingots. This material not only has excellent thermal conductivity but also effectively resists corrosion, thereby extending the service life of the equipment. The high thermal conductivity of the aluminum alloy enables heat to be rapidly transferred to the entire surface of the aluminum heated plate for hydraulic press, achieving efficient heat conduction. Meanwhile, its lightweight design facilitates installation and transportation, reducing usage costs.
To meet the strict temperature requirements of various processes, some models of aluminum heated plates for hydraulic press are equipped with temperature measurement holes and advanced temperature controllers. These aluminum hot plate for heat press machine features can monitor and adjust the temperature of the heating plate in real time, ensuring it remains within the set range and preventing product quality issues or equipment damage caused by overheating. The temperature controllers typically employ digital technology and offer an intuitive operation interface, allowing users to easily set and adjust temperature parameters.
Application
Aluminum heated plates for heat transfer machine, due to their outstanding performance, have been widely applied in various industries.
In the field of heat transfer printing, the aluminum heat press plate can ensure clear and vivid patterns;
In the heat transfer spray painting process, the aluminum hot press plate guarantee uniform coating and strong adhesion.
Additionally, because of their efficient heat conduction ability and precise temperature control, these aluminum heating plates are also suitable for other industrial scenarios that require high-temperature processing, such as plastic molding and composite material processing.
Production Process
Service
Develop
received the products specs,drawing,and picture
Quotes
the manager feedback the inquiry in 1-2hours and send quotation
Samples
Free samples will be sent for check products quality before bluk production
Production
confirm products specification again,then arrange the production
Order
Place order once you confirmed samples
Testing
Our QC team will be checked the products quality before delivery

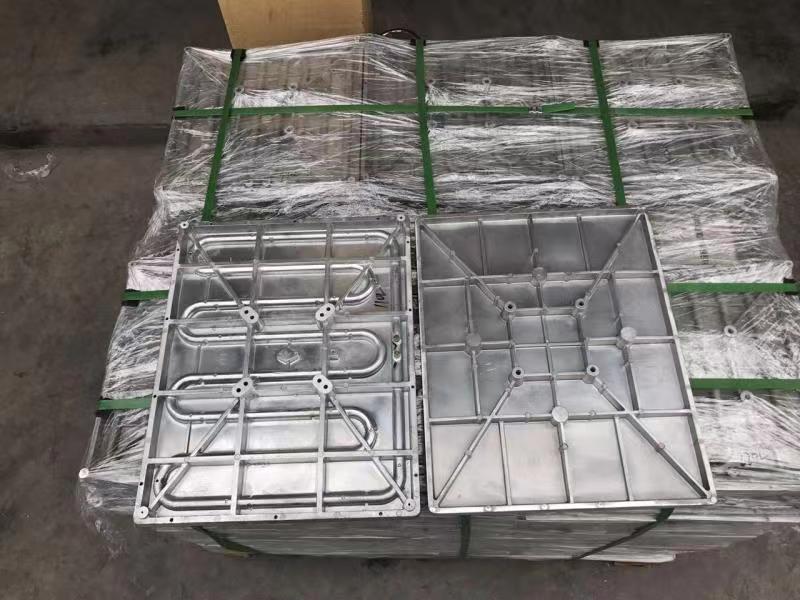

Packing
packing products as required
Loading
Loading ready productsto client’s container
Receiving
Received you order
Why Choose Us
• 25 years exporting & 20 years manufacturing experience
• Factory covers an area of about 8000m²
• In 2021，all kinds of advanced production equipment had been replaced, including powder filling machine, pipe shrinking machine, pipe bending equipment, etc.,
• the average daily output is about 15000pcs
• Different Cooperative customer
• Customization depend on your requirement
Certificate
Related Products
Defrost Heater Element

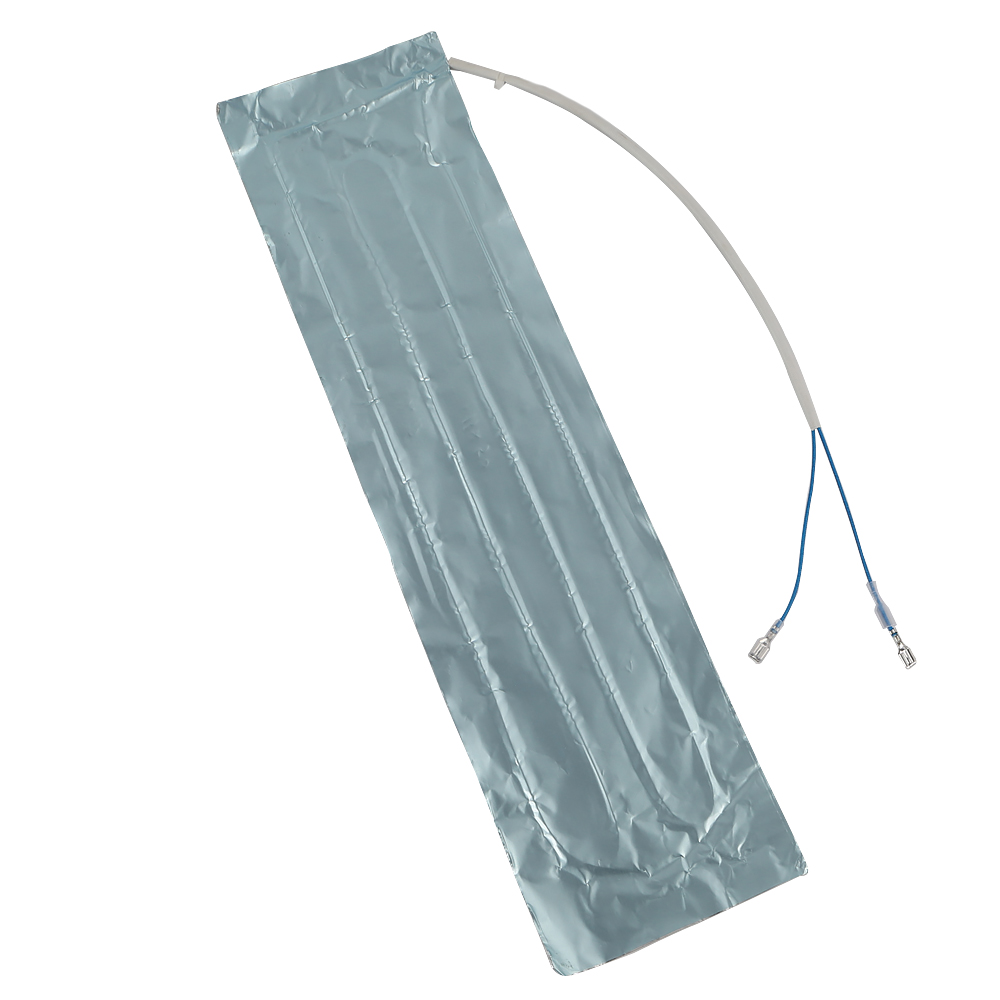

Aluminum Foil Heater

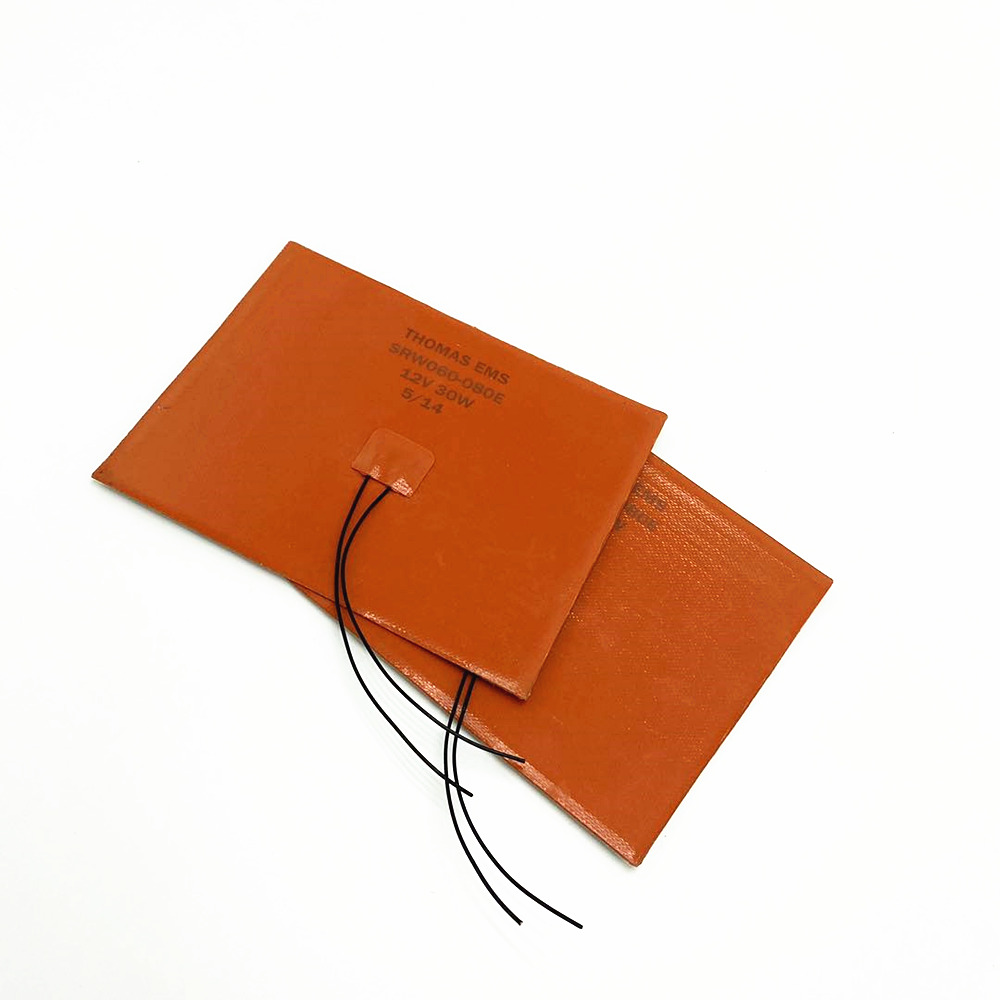

Silicone Heating Pad

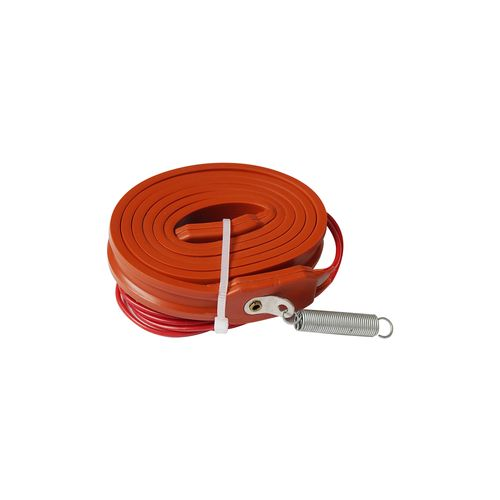

Crankcase Heater

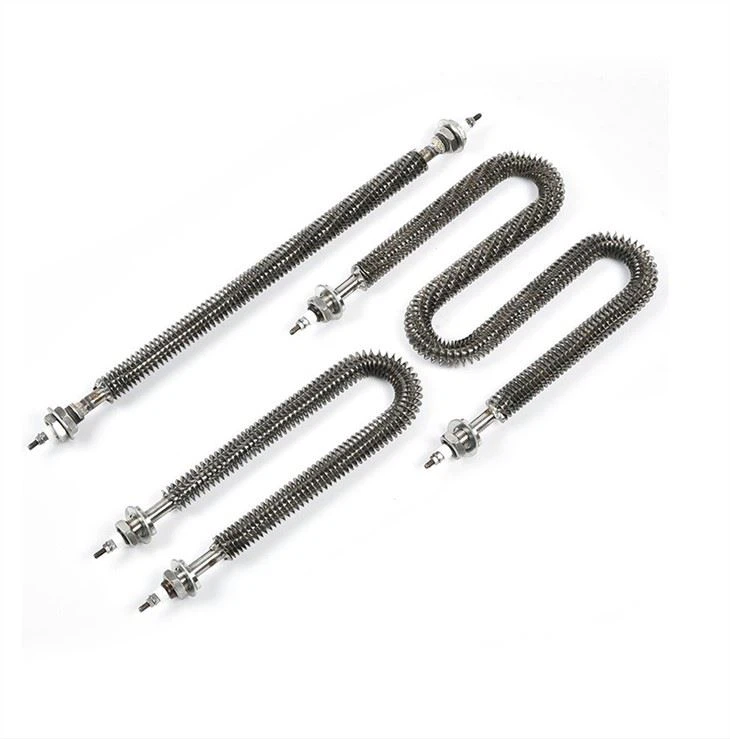

Finned Heat Element
